Product Overview
Technical Summary
| Parameter | Value |
|---|---|

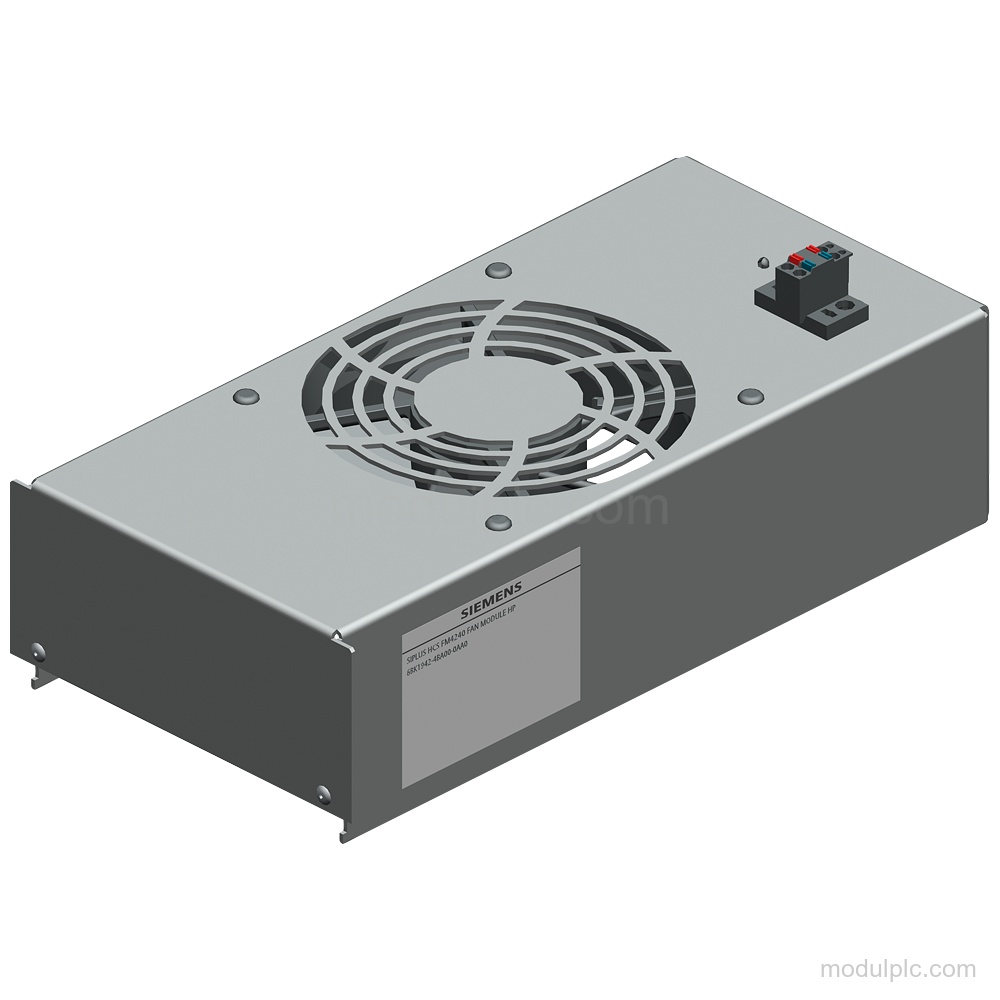

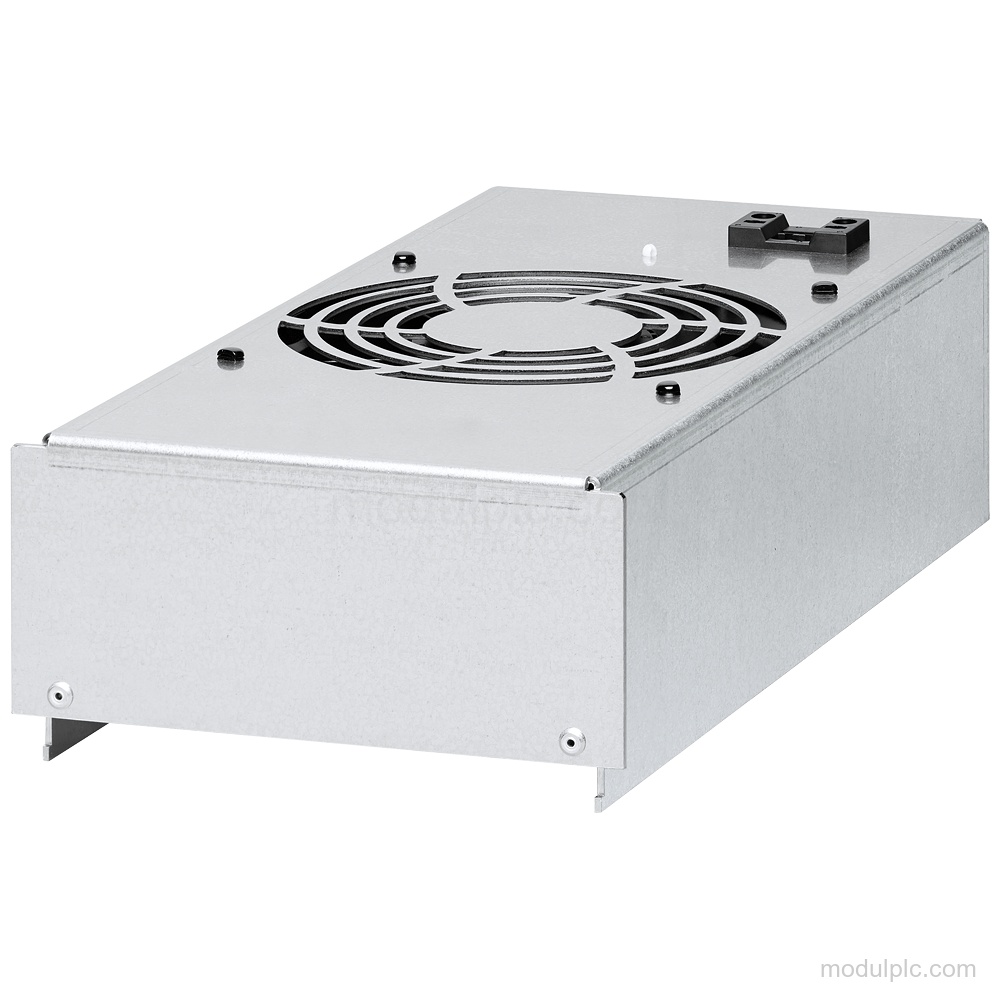

| Product type | FM4240 fan module HP |
| Function | Deaeration of 4 POM4220 |
| Supply voltage | 24 V DC |
| Supply voltage tolerance | 20 % relative symmetrical tolerance |
| Active power input | 12 W |
| Maximum active power input | 48 W; fan start |
| Connection | Plug, 2x 2-pole with spring-type terminal, push-in |

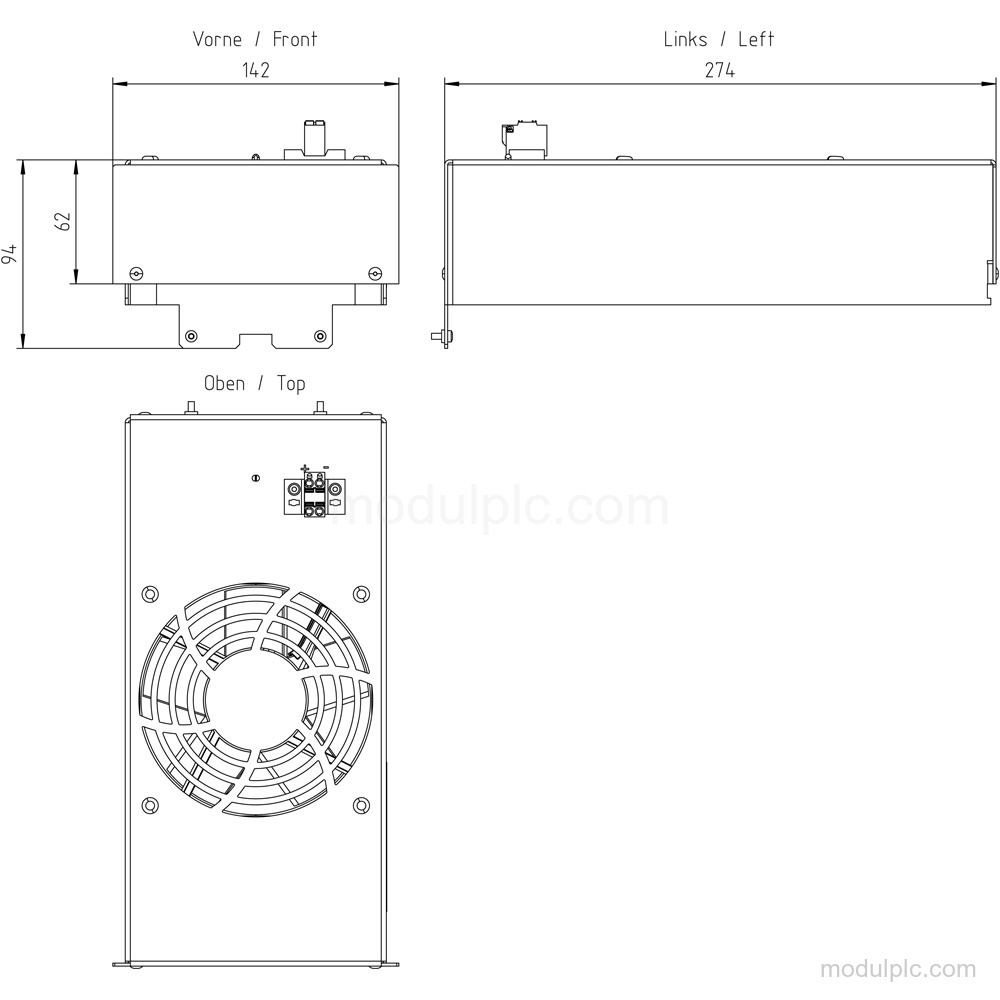

| Mounting | Screw mounting to rack |
| Mounting position | Horizontal |
| Ventilation | Self-ventilation |
| Protection | IP20 |
Applications
- Deaeration of 4 POM4220: The fan module is for deaeration of 4 POM4220.
Key Features
- Fan module type: FM4240 fan module HP for deaeration of 4 POM4220.
- Supply voltage: DC supply with a rated value of 24 V and a relative symmetrical tolerance of 20 %.
- Power input: Active power input: 12 W; maximum active power input: 48 W during fan start.
- Electrical connection: Plug, 2x 2-pole with spring-type terminal, push-in.
- Mounting and ventilation: Screw mounting to rack, horizontal mounting position, and self-ventilation.
- Protection and lifecycle: IP20 degree of protection; product cancellation. This is a spare part.
Frequently Asked Questions
1. What is the function of the 6BK1942-4BA00-0AA0?
It is an FM4240 fan module HP for deaeration of 4 POM4220.
2. What supply does the fan module use?
It uses a 24 V DC supply with a relative symmetrical tolerance of 20 %.
3. What is the power input?
The active power input is 12 W. The maximum active power input is 48 W during fan start.
4. How is the module mounted and connected?
It uses screw mounting to rack in a horizontal position and a plug, 2x 2-pole with spring-type terminal, push-in.
5. Is this a complete new product?
It is a spare part, and the product has been cancelled.
