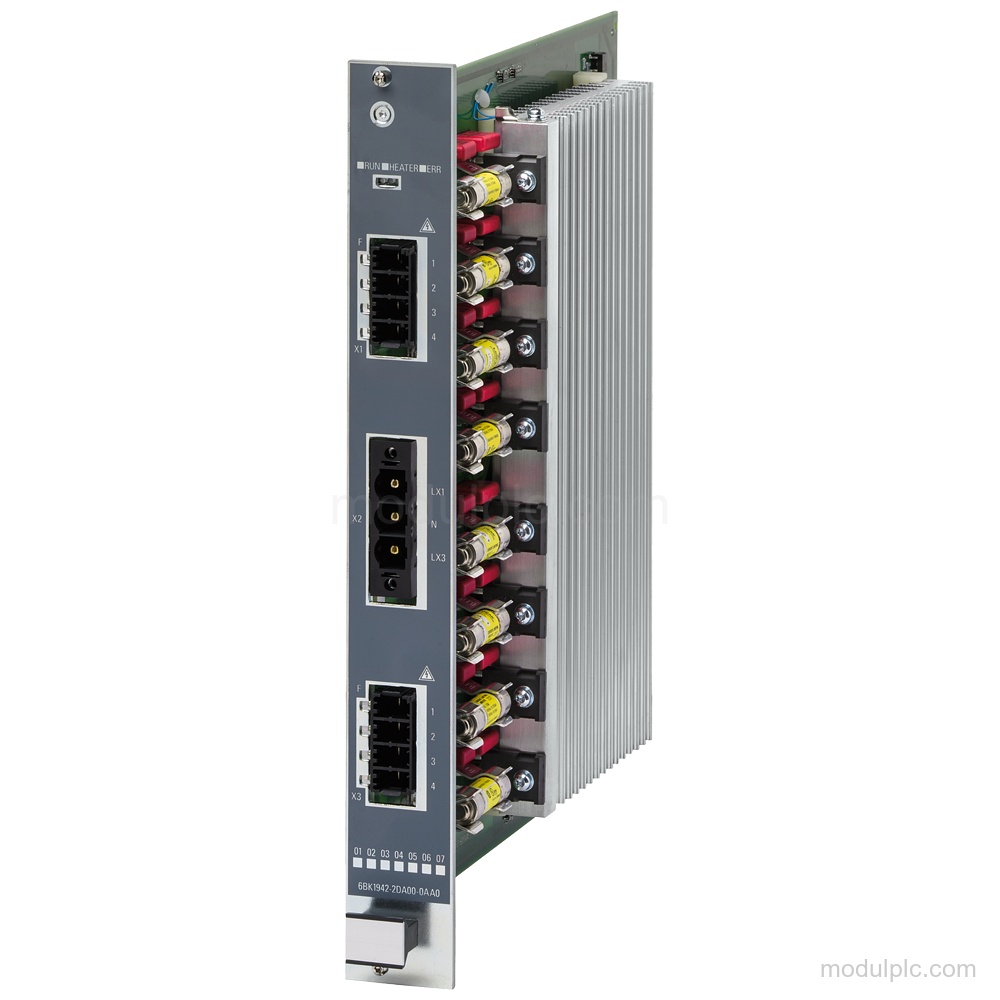

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | POM4220 High-end |
| Digital outputs | 8 |
| Rated supply | 230 V AC; phase-neutral conductor |
| Power carrying capacity per output, max. | 4 600 W; at 230 V AC |
| Power carrying capacity per output, min. | 400 W; at 230 V AC |
| High-inrush heating elements, max. | 2 700 W; at 230 V AC |
| Output current for heating power | 20 A; max. |
| Interfaces | system interface |
| Mounting | Screw mounting to rack; vertical |
| Supply connection | 3-pole push-in spring terminal |
| Output connection | 4-pole push-in spring terminal |
Applications
- Heating-element control: Controls heating elements using half-wave control, soft start, phase control, and 2-pole switching.
Key Features

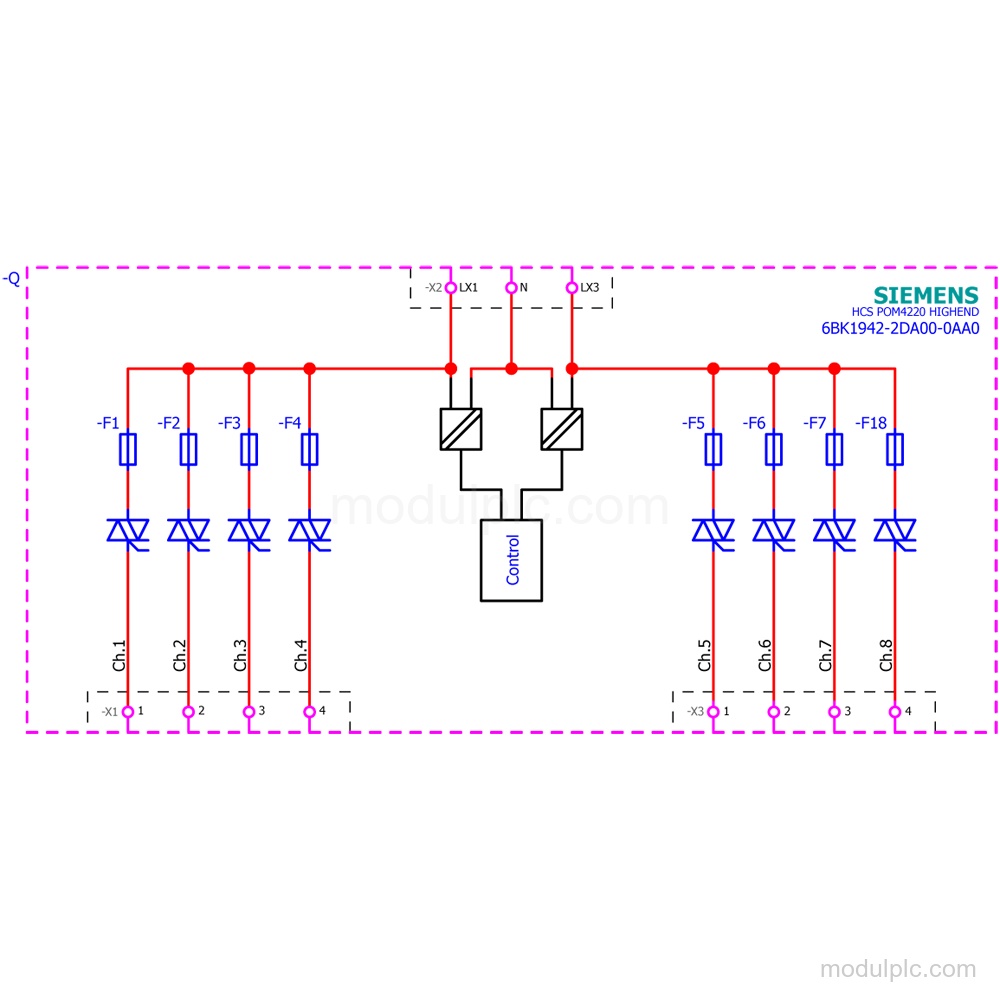

- 8 digital outputs: The heating-power section has 8 digital outputs.
- Heating power per output: Power carrying capacity is 400 W minimum and 4 600 W maximum per output at 230 V AC; high-inrush heating elements are limited to 2 700 W at 230 V AC.
- Supply and load voltage: Rated supply is 230 V AC, phase-neutral. Heating-power output voltages are 230 V, 277 V, 400 V, and 480 V.
- Heating control modes: Supports half-wave control, soft start, and phase control. Setpoint input supports percent and watts.
- Mounting and connections: Uses screw mounting to rack in a vertical position. Supply connection is a 3-pole push-in spring terminal; heating and fan output connection is a 4-pole push-in spring terminal.
- Diagnostics and protection: Provides voltage and current diagnosis, temperature monitoring with an NTC thermistor, and IP20 protection.
Frequently Asked Questions
1. What is the product type of Siemens 6BK1942-2DA00-0AA0?
It has the product type designation POM4220 High-end and is identified as a SIPLUS HCS4200 POM4220 High-end spare part.
2. How many outputs does the POM4220 have?
It has 8 digital outputs. Each output has a power carrying capacity of 400 W minimum and 4 600 W maximum at 230 V AC.
3. What connections are provided?
The supply uses a 3-pole push-in spring terminal, and the heating and fan output uses a 4-pole push-in spring terminal.
