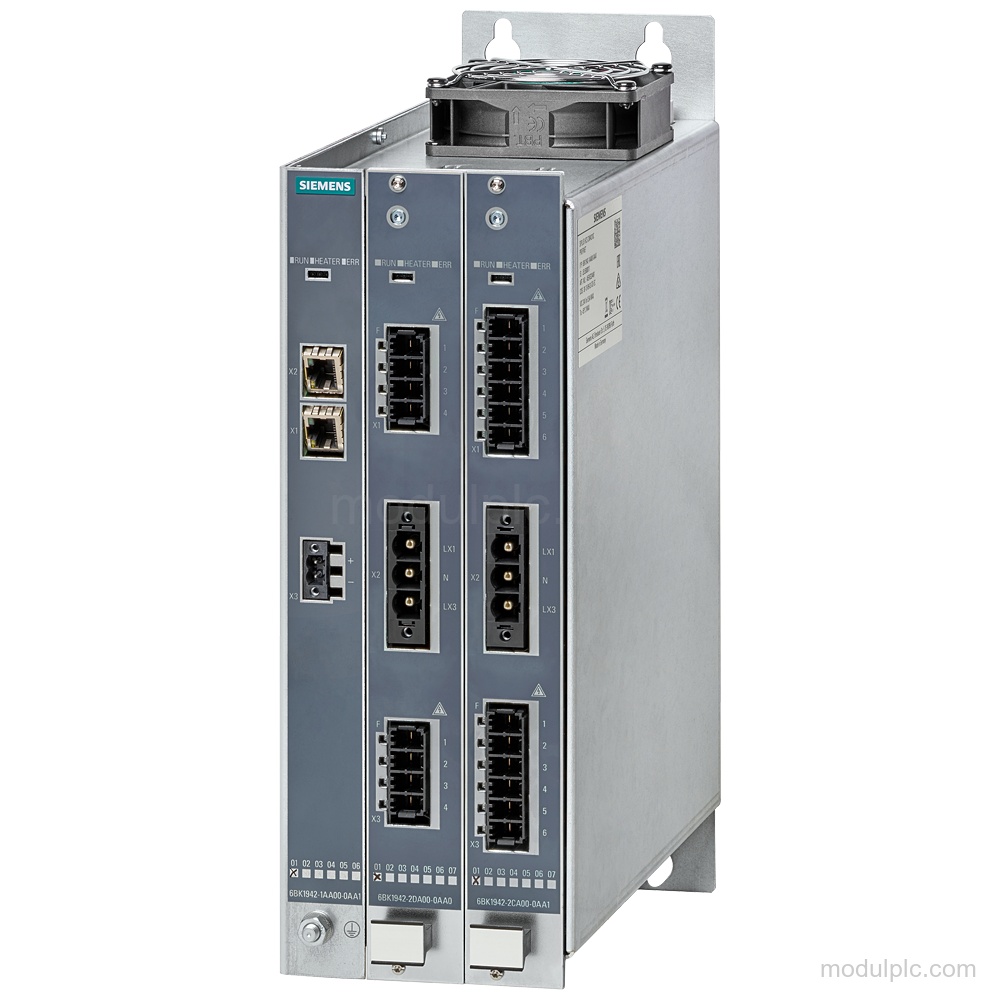

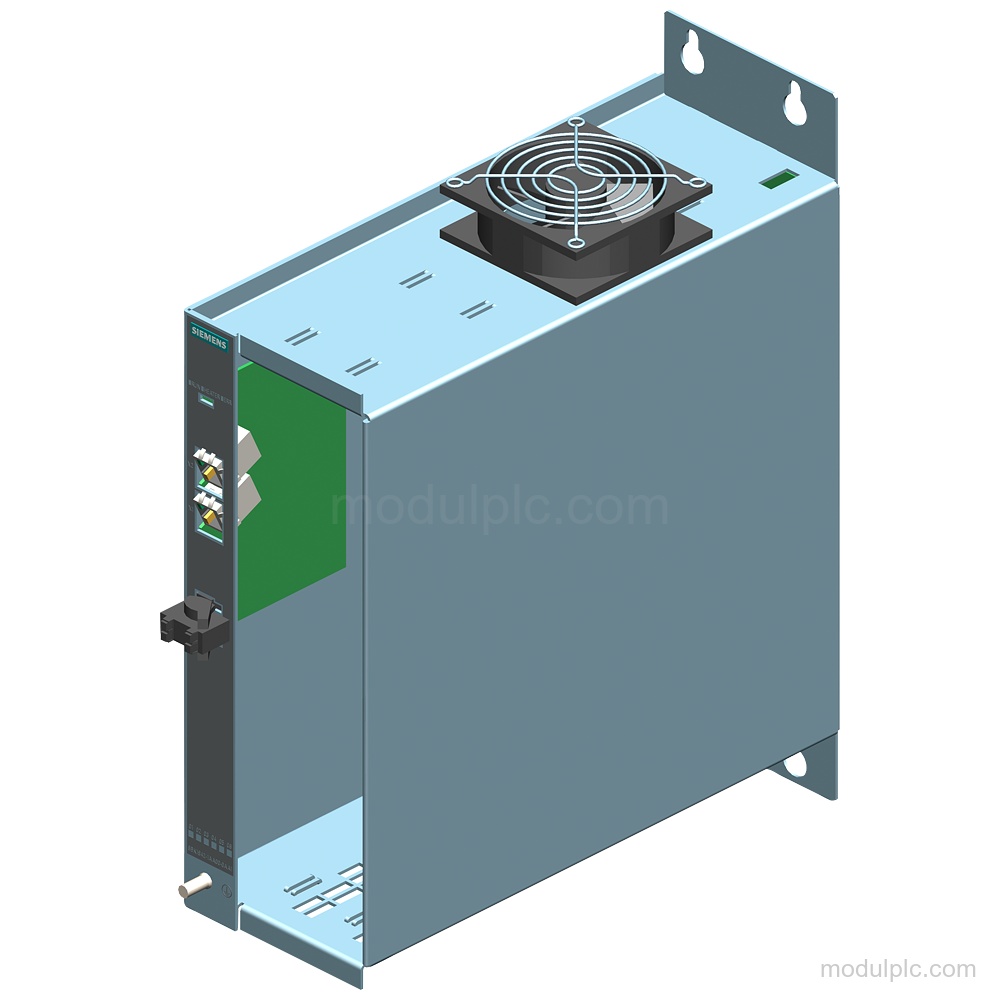

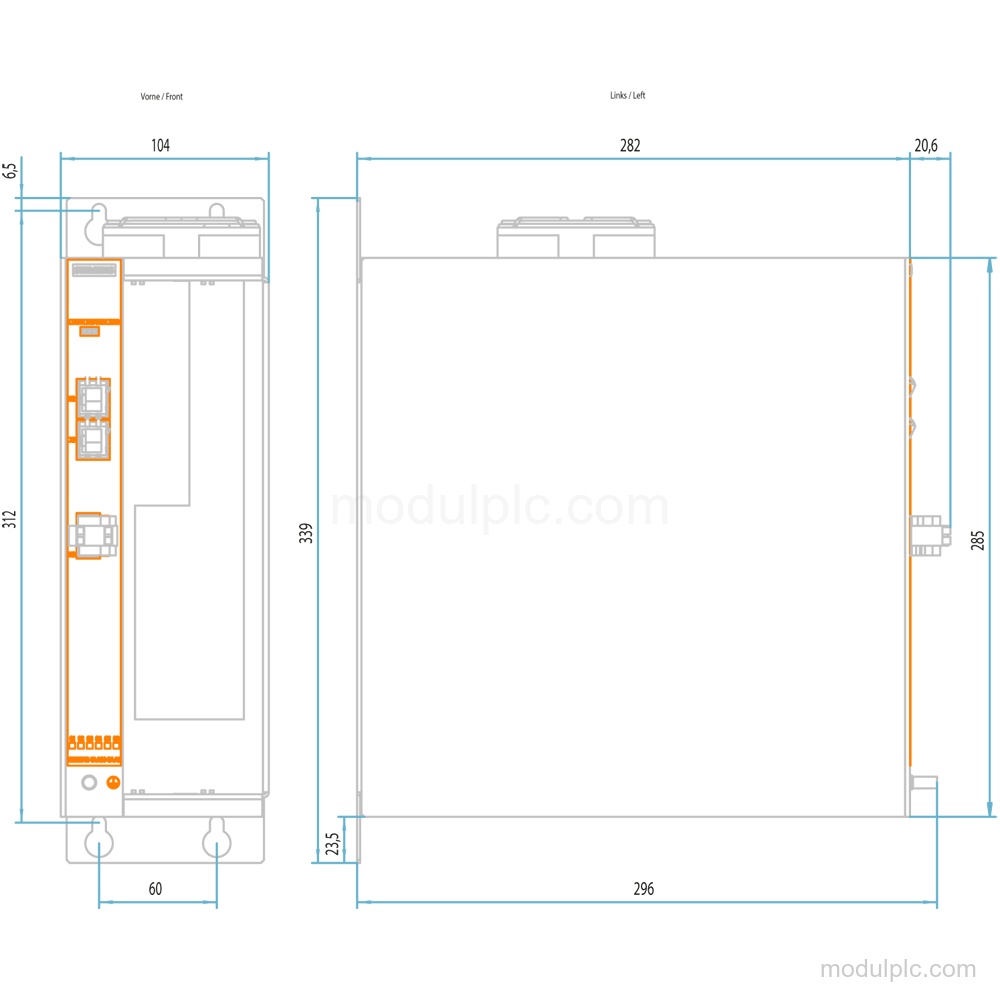

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CIM4210C |
| Interfaces/bus type | PROFINET IO |
| PROFINET interface connection | 2x RJ45 |
| Maximum transmission rate | 100 Mbit/s |
| Number of POM4220 slots | 2; POM4220 |
| Rated supply voltage | 24 V DC |
| Active power input | 8 W |
| Mounting type | Backplane mounting |
| Degree of protection | IP20 |
Applications
- PROFINET IO communication: Provides PROFINET IO communication through 2x RJ45 connections.
- POM4220 power-output connection: Connects 2 POM4220 power outputs through its 2 slots.
Key Features
- Central interface module: Product type designation: CIM4210C; compact central interface module with PROFINET IO communication.
- POM4220 slots: 2 slots are provided for connectable POM4220 power outputs.
- PROFINET IO interface: PROFINET IO interface with 2x RJ45 electrical connection and a maximum transmission rate of 100 Mbit/s.
- 24 V DC supply: Rated supply voltage: 24 V DC, with a relative symmetrical tolerance of 20 %.
- Status diagnostics: 3 status displays: green LED = ready, yellow LED = heating on/off, and red LED = error display.
- Installation and protection: Backplane mounting, vertical mounting position, self-ventilation, and IP20 degree of protection.
Frequently Asked Questions
1. What interface does the CIM4210C use?
It uses a PROFINET IO interface with 2x RJ45 electrical connections and a maximum transmission rate of 100 Mbit/s.
2. How many POM4220 slots are available?
The module has 2 slots for POM4220.
3. What supply does the module require?
The rated supply is 24 V DC with a relative symmetrical tolerance of 20 %.
4. How is the CIM4210C mounted?
It uses backplane mounting in a vertical mounting position and has self-ventilation.
