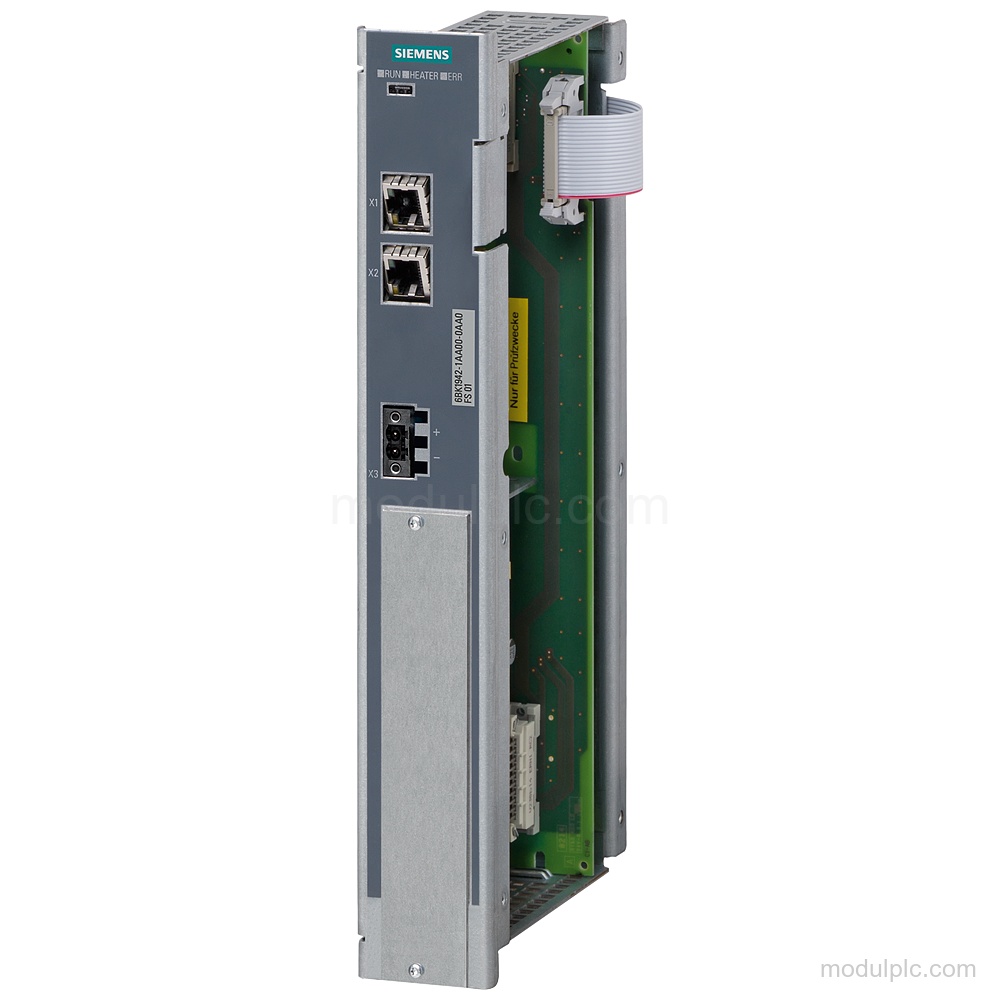

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | CIM4210 |
| Interface | PROFINET IO |
| Maximum transmission rate | 100 Mbit/s |

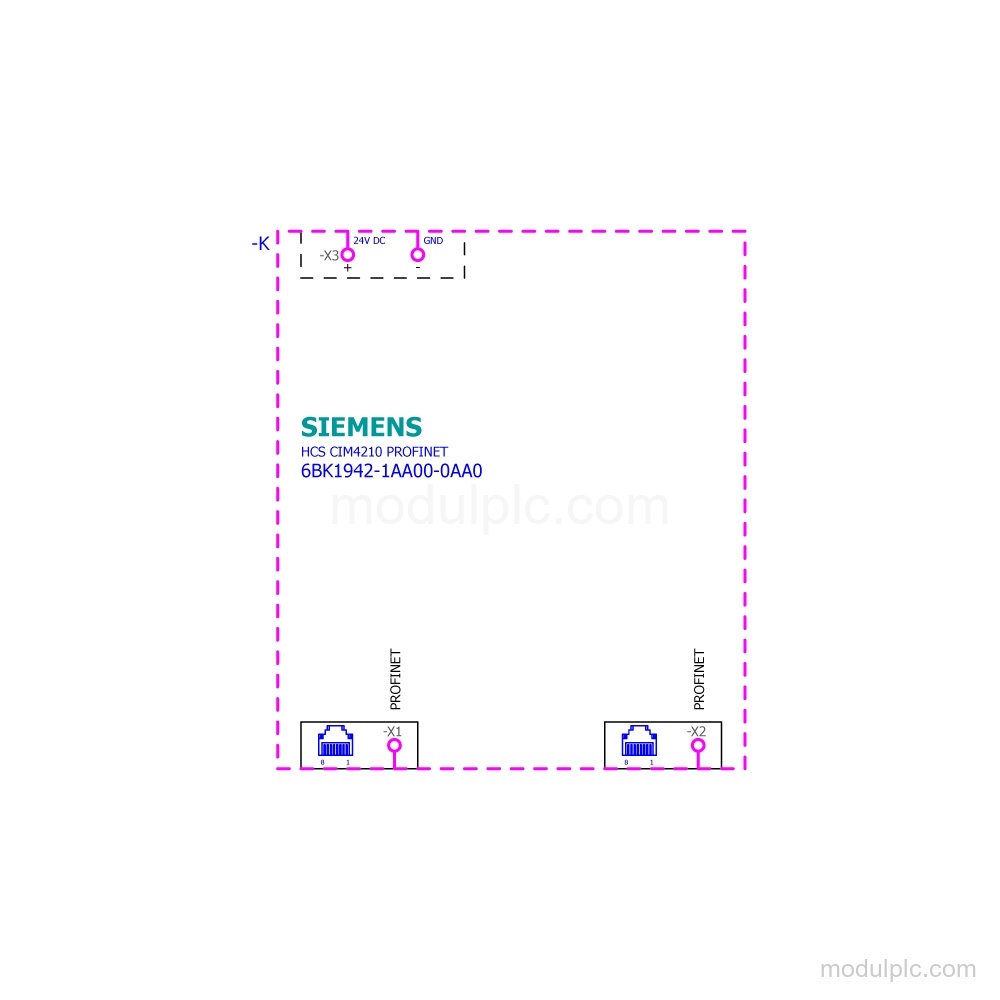

| PROFINET connection | 2x RJ45 |
| Supply | 24 V DC |
| Active power input | 3 W |

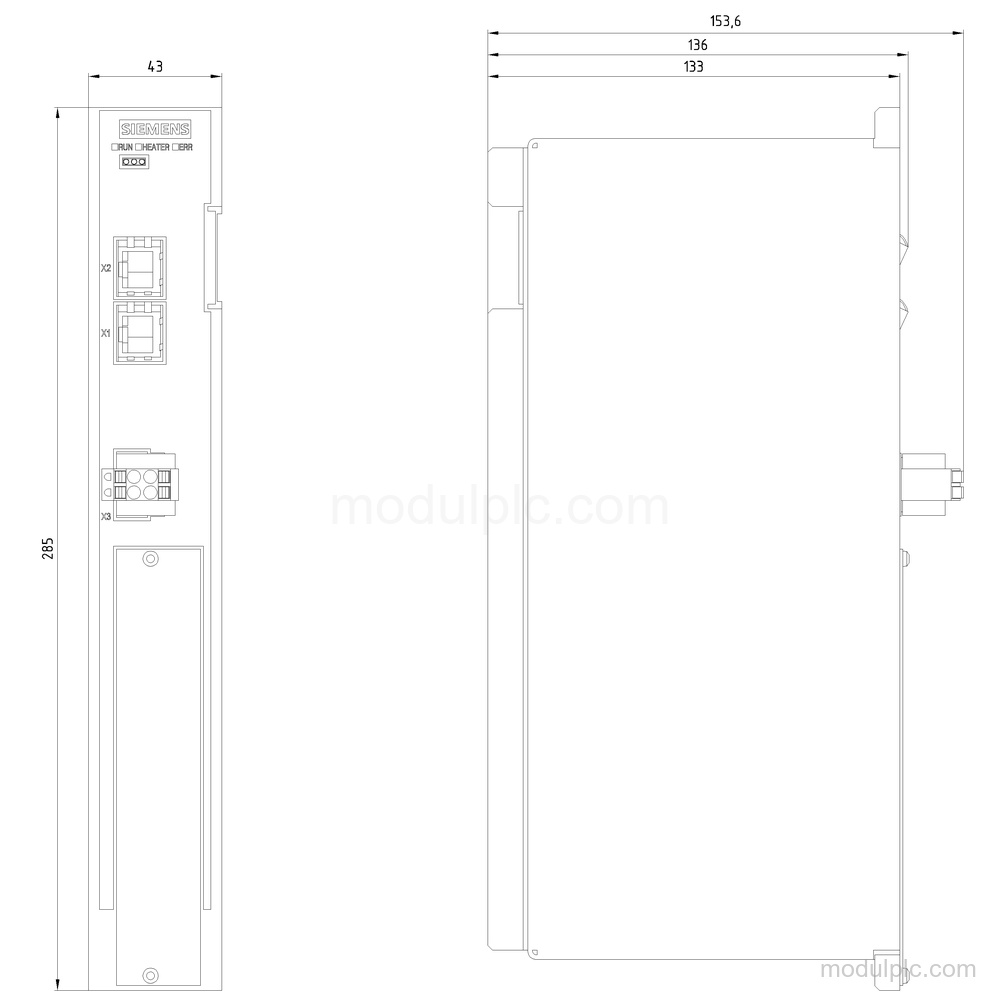

| Mounting | Screw mounting to rack, vertical |
| Status displays | 3 |
Applications
- PROFINET communication: Provides central interface communication through PROFINET IO.
Key Features
- PROFINET IO interface: Supports PROFINET IO with a maximum transmission rate of 100 Mbit/s.
- PROFINET connectors: The PROFINET interface uses 2x RJ45.
- DC supply: Rated supply voltage is 24 V DC with a relative symmetrical tolerance of 20 %.
- Rack mounting: Mounting type is screw mounting to rack, with vertical mounting position and forced ventilation.
- Status displays: 3 status displays indicate ready, heating on/off, and error status through green, yellow, and red LEDs.
- Protection and power: Active power input is 3 W, and the degree of protection is IP20.
Frequently Asked Questions
1. Which protocols does the CIM4210 support?
It supports PROFINET IO. PROFIBUS DP and EtherNet/IP are not supported.
2. What PROFINET interface does it have?
The PROFINET interface has 2x RJ45 and a maximum transmission rate of 100 Mbit/s.
3. What supply does the module require?
It has a rated supply voltage of 24 V DC with a relative symmetrical tolerance of 20 %.
4. How is the CIM4210 mounted?
It uses screw mounting to rack in a vertical mounting position and has forced ventilation.
5. What is included in this configuration?
The product description identifies it as a spare part. The connected power output type is POM4220; the source does not state that a POM4220 is included.
