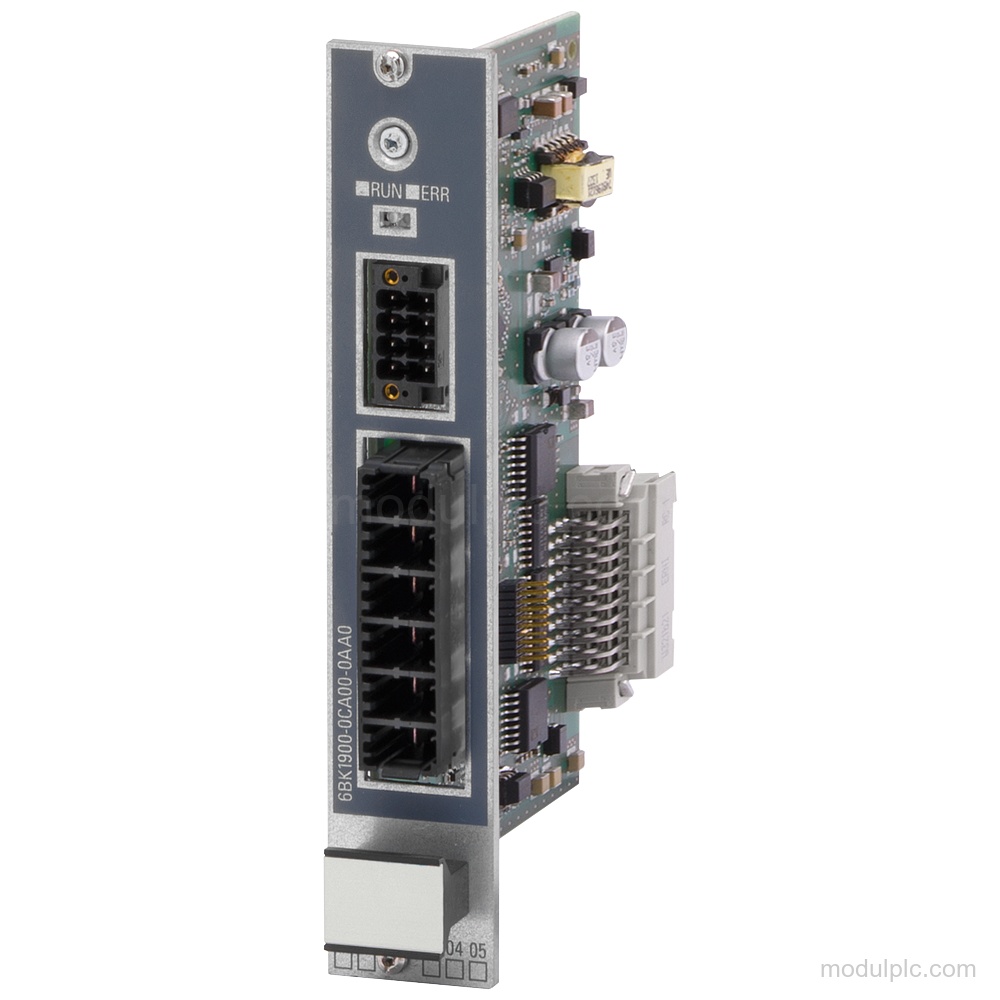

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | For PM4000 U/I |
| Measurement functions | Voltage measurement: Yes; Current measurement: Yes |
| Voltage measurement range | 230 V to 480 V |
| Current measurement range | 0 A to 5 A |
| Operating frequency | 50 Hz to 60 Hz |
| Relative measuring accuracy | Voltage: 0.5 %; Current: 0.5 % |
| Power supply | Via CIM |
| Interface | System interface |
| Mounting | Screw mounting to CIM; vertical mounting position |
| Electrical connection | Voltage: 6-pole push-in spring-type terminal plug; Current: 8-pole push-in spring-type terminal plug |
| Protection | IP20 |
Applications
- Voltage and current measurement: Measures voltages and currents in the SIPLUS HCS4000 context.
Key Features
- Voltage and current measurement: Measures voltage from 230 V to 480 V and current from 0 A to 5 A.
- Measurement accuracy: Relative measuring accuracy is 0.5 % for voltage and 0.5 % for current.
- CIM power supply and system interface: Power supply is via CIM, with a system interface and maximum active power input of 1 W.

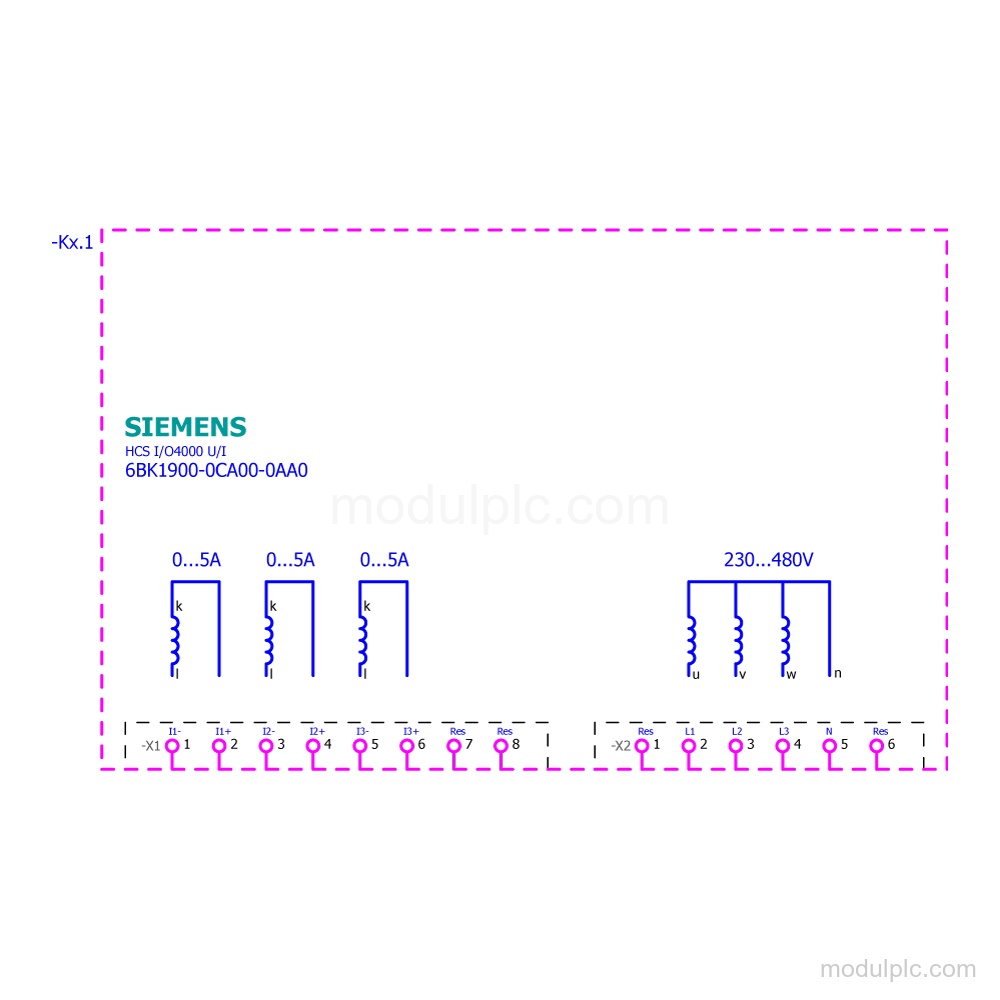

- Measuring input connections: Voltage inputs use a 6-pole plug with spring-type terminal, push-in; current inputs use an 8-pole plug with spring-type terminal, push-in.
- Mounting and status indication: The module uses screw mounting to CIM in a vertical position with forced ventilation. Two status displays provide LED green = Ready and LED red = Error display.
- Protection and operating frequency: The module has IP20 protection and supports an operating frequency from 50 Hz to 60 Hz.
Frequently Asked Questions
1. What does the Siemens 6BK1900-0CA00-0AA0 measure?
It measures voltage and current for PM4000 U/I.
2. What voltage and current ranges are supported?
The voltage measurement range is 230 V to 480 V, and the current measurement range is 0 A to 5 A.
3. How are the measuring inputs connected?
Voltage inputs use a 6-pole plug with spring-type terminal, push-in. Current inputs use an 8-pole plug with spring-type terminal, push-in.
4. How is the module mounted and supplied?
It uses screw mounting to CIM in a vertical position, and the power supply is via CIM.
