Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PM4000 DI/DO |
| I/O configuration | 8 configurable digital inputs or outputs |
| Output type | Semiconductor output (high side switch) |
| Output voltage | 24 V DC rated; 19.2 V to 28.8 V permissible |
| Output current | Maximum permissible range of 500 mA for signal "1" |
| Connection | 18-pin push-in plug with spring-type terminal |
| System interface | System interface |
| Status displays | 18 |
| Potential separation | Yes, between outputs and system interface |
| Mounting | Screw mounting to CIM; vertical |
| Power supply | Via CIM |
| Protection | IP20 |
Applications
- Digital signal acquisition: The configurable digital inputs support acquisition of digital signals.
- Digital output control: The digital outputs support semiconductor-based digital output control.
Key Features
- I/O configuration: 8 configurable digital inputs or outputs; the module also has semiconductor outputs with high-side switching.
- Output voltage and current: 24 V DC rated output voltage, with a permissible output range of 19.2 V to 28.8 V and a maximum permissible range of 500 mA for signal "1".

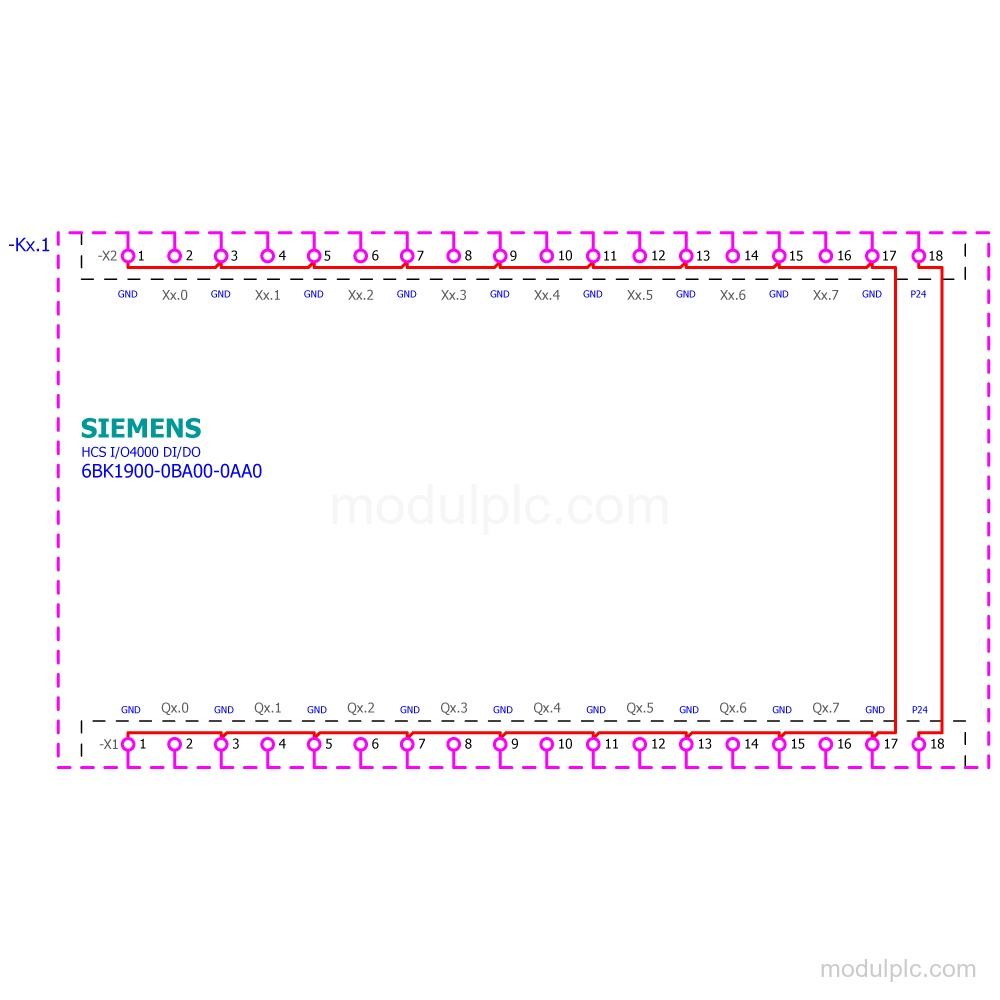

- Connections: 18-pin push-in plugs with spring-type terminals are provided for digital inputs, digital outputs, and control supply voltage.
- Diagnostics and isolation: 18 status displays, green Ready and red Error LEDs, and one yellow LED per output; outputs and system interface have potential separation.
- Mounting and supply: Screw mounting to CIM, vertical mounting position, forced ventilation, and power supply via CIM.
- Protection and lifecycle: IP20 degree of protection; product cancellation applies to this spare part.
Frequently Asked Questions
1. How many configurable digital inputs or outputs does the 6BK1900-0BA00-0AA0 have?
It has 8 configurable digital inputs or outputs.
2. What output voltage does the module use?
The rated output voltage is 24 V DC, with a permissible output range of 19.2 V to 28.8 V.
3. What connections are provided?
Digital inputs, digital outputs, and control supply voltage use 18-pin push-in plugs with spring-type terminals.
4. How is the module mounted and supplied?
It uses screw mounting to CIM in a vertical position, with power supplied via CIM.
