Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PM4000 temperature |
| Analog inputs | 4 |
| Temperature sensor inputs | Type J, K, and L thermocouples; Pt 100 and Pt 1000 resistance thermometers |
| Temperature ranges | J: 0 °C to 650 °C; K: 0 °C to 440 °C; L: 0 °C to 640 °C; Pt 100: 0 °C to 410 °C; Pt 1000: 0 °C to 850 °C |
| Conversion type | Sigma Delta |
| Conversion time | 150 ms |
| Measuring accuracy | ±1 K |
| Interfaces | system interface |
| Power supply | Power supply via CIM |
| Mounting | Screw mounting to CIM; vertical |
| Connection | 8-pole plug with spring-type terminal, push-in |
Applications
- Temperature acquisition: Acquisition of temperatures using type J, K, and L thermocouples or Pt 100 and Pt 1000 resistance thermometers.
- Current measurement: Current measurement from 0 mA to 20 mA.
Key Features

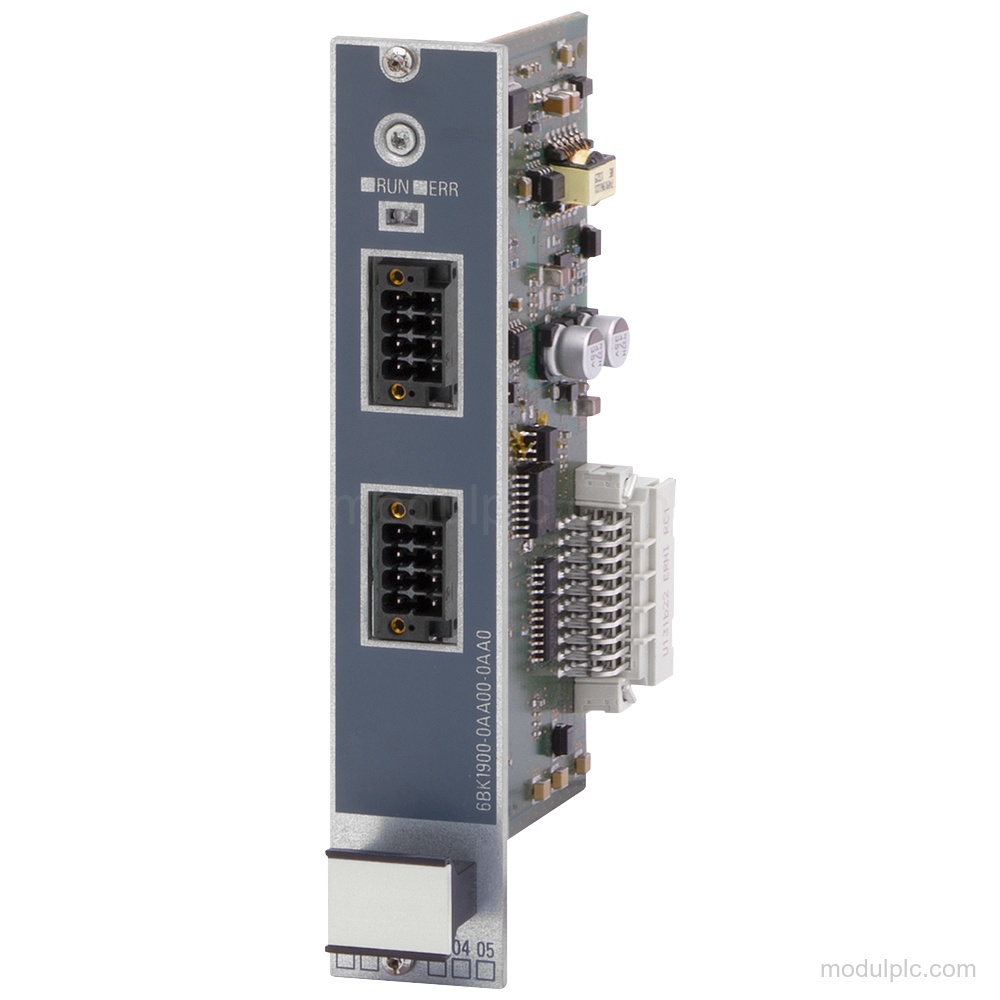

- Temperature I/O module: Product type designation: PM4000 temperature for temperature acquisition in the SIPLUS HCS4000 family.

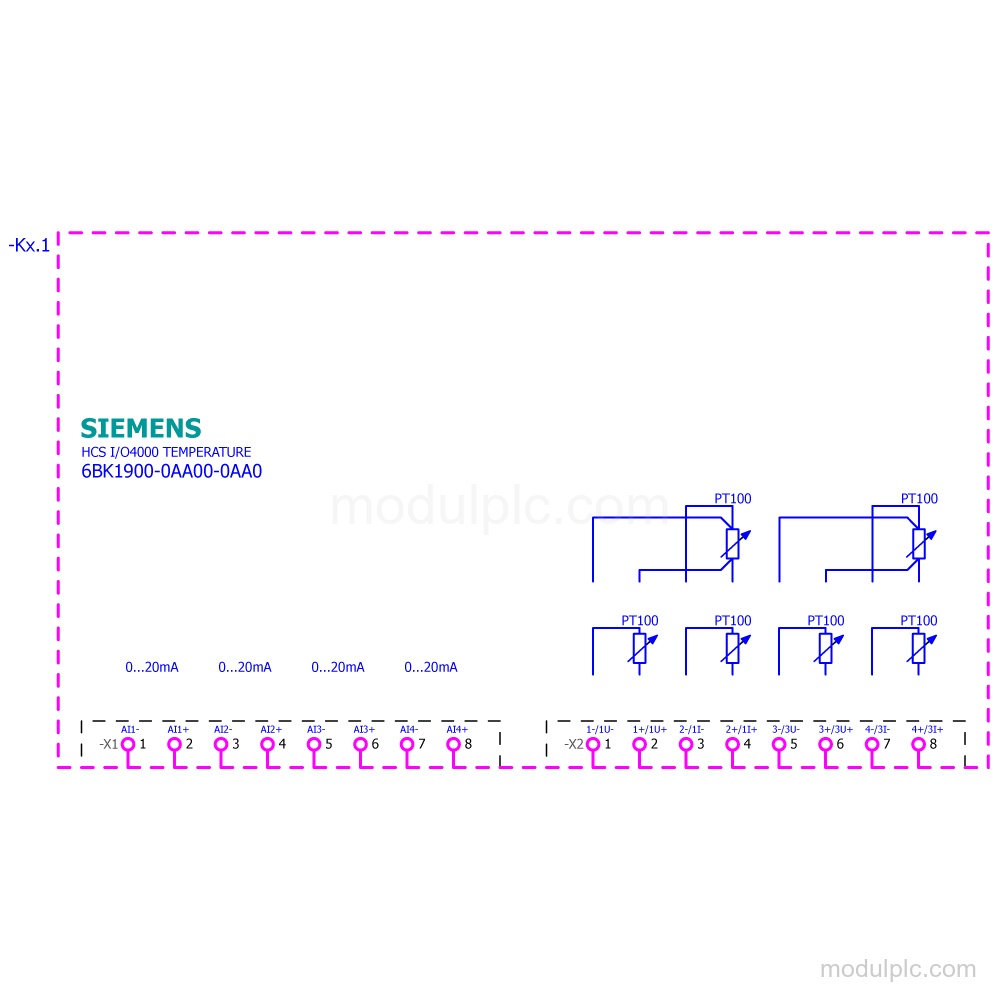

- Analog inputs: 4 analog inputs; supports 4 inputs for 2-wire systems or 2 inputs for 4-wire systems.
- Supported temperature sensors: Supports type J, K, and L thermocouples plus Pt 100 and Pt 1000 resistance thermometers.
- Temperature ranges: Type J: 0 °C to 650 °C; type K: 0 °C to 440 °C; type L: 0 °C to 640 °C; Pt 100: 0 °C to 410 °C; Pt 1000: 0 °C to 850 °C.
- Connection and mounting: 8-pole plug with spring-type terminal, push-in; screw mounting to CIM in a vertical position with forced ventilation.
- Diagnostics and power: Power supply via CIM, maximum active power input 1 W, and 2 status displays with green Ready and red Error LEDs.
Frequently Asked Questions
1. How many analog inputs does the 6BK1900-0AA00-0AA0 have?
It has 4 analog inputs. The module supports 4 inputs for 2-wire systems or 2 inputs for 4-wire systems.
2. Which temperature sensors are supported?
It supports type J, K, and L thermocouples and Pt 100 and Pt 1000 resistance thermometers.
3. What are the temperature measurement ranges?
Type J is 0 °C to 650 °C, type K is 0 °C to 440 °C, type L is 0 °C to 640 °C, Pt 100 is 0 °C to 410 °C, and Pt 1000 is 0 °C to 850 °C.
4. How is the module connected and mounted?
It uses an 8-pole plug with a spring-type terminal, push-in, and is screw-mounted to CIM vertically.
