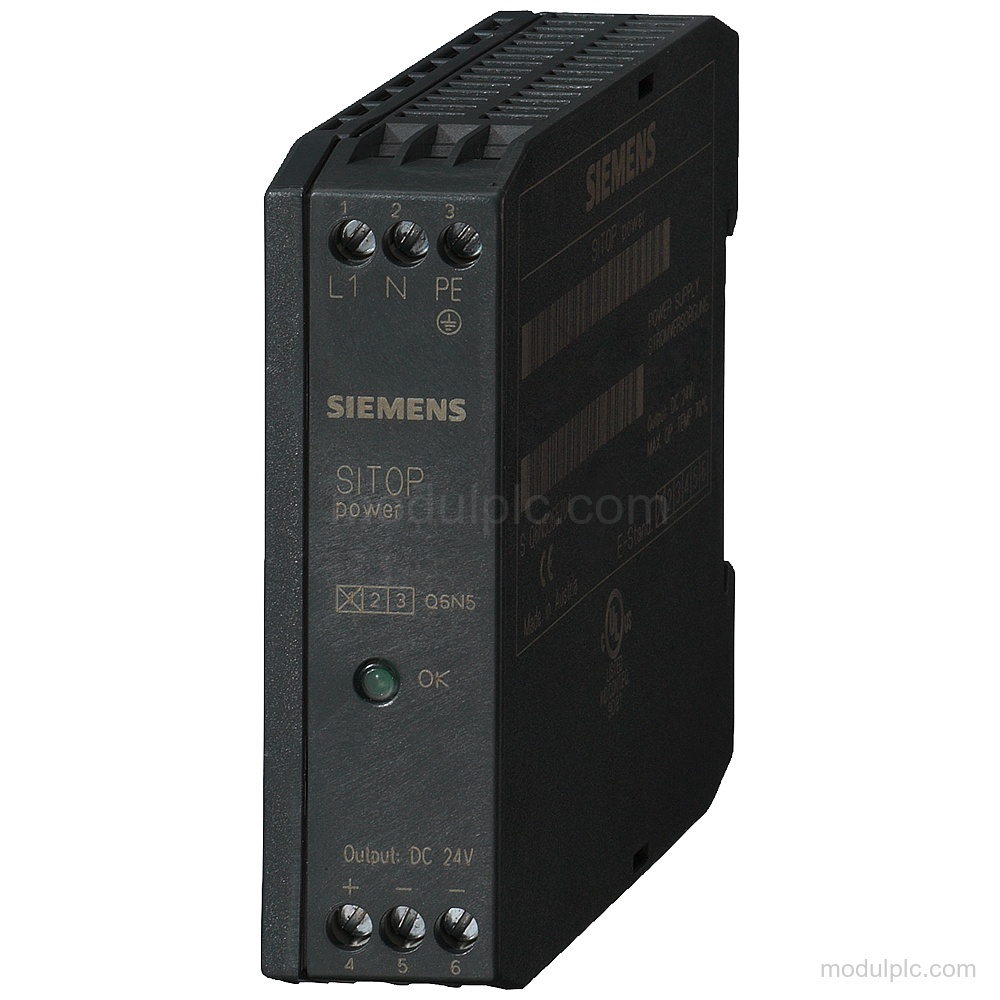

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Output voltage | 24 V DC |
| Rated output current | 0.375 A |
| DC input supply voltage | 48 … 220 V |
| Input voltage range | 30 … 264 V |
| Output power, typical | 9 W |
| Electrical connection | Screw terminal |
| Mounting | DIN rail EN 60715 35×7.5/15 |
| Protection class | IP20 |
| Operating ambient temperature | -25 … +70 °C; horizontal mounting position with natural convection |
Applications
- 24 V DC power supply: Provides controlled, isolated 24 V DC output power at 0.375 A for connected electrical equipment.
Key Features
- 24 V DC power supply: Controlled, isolated DC output: 24 V at a rated output current of 0.375 A; supplied active power is typically 9 W.
- Wide-range DC input: DC input supply voltage: 48 … 220 V; input voltage range: 30 … 264 V.
- Output protection: The output is short-circuit proof with electronic shutdown and automatic restart; overvoltage protection is < 60 V.
- Screw terminals: The electrical connection uses screw terminals. Input terminals L+1, M1 and PE each accept 0.5 … 2.5 mm2 conductors; the output uses one + terminal and two – terminals for 0.5 … 2.5 mm2.
- DIN-rail mounting: The unit snaps onto DIN rail EN 60715 35×7.5/15 and has a 22.5 × 80 × 91 mm enclosure.
- SIPLUS conformal coating: The equipped printed circuit board has conformal coating according to EN 61086, Class 2 for high availability; the product has IP20 protection.
Frequently Asked Questions
1. What output does Siemens 6AG1931-2BA00-3AA0 provide?
It provides 24 V DC at a rated output current of 0.375 A, with typically 9 W supplied active power.
2. What DC input voltage does this SIPLUS power supply accept?
The DC input supply voltage is 48 … 220 V, and the input voltage range is 30 … 264 V.
3. How is 6AG1931-2BA00-3AA0 connected?
It uses screw terminals. At the input, L+1, M1 and PE each have 1 screw terminal for 0.5 … 2.5 mm2 conductors; at the output, + has 1 and – has 2 screw terminals for 0.5 … 2.5 mm2.
4. How is this power supply mounted?
It snaps onto DIN rail EN 60715 35×7.5/15. DIN-rail mounting is supported; S7 rail mounting and wall mounting are not.
