Product Overview
Technical Summary
| Parameter | Value |
|---|---|

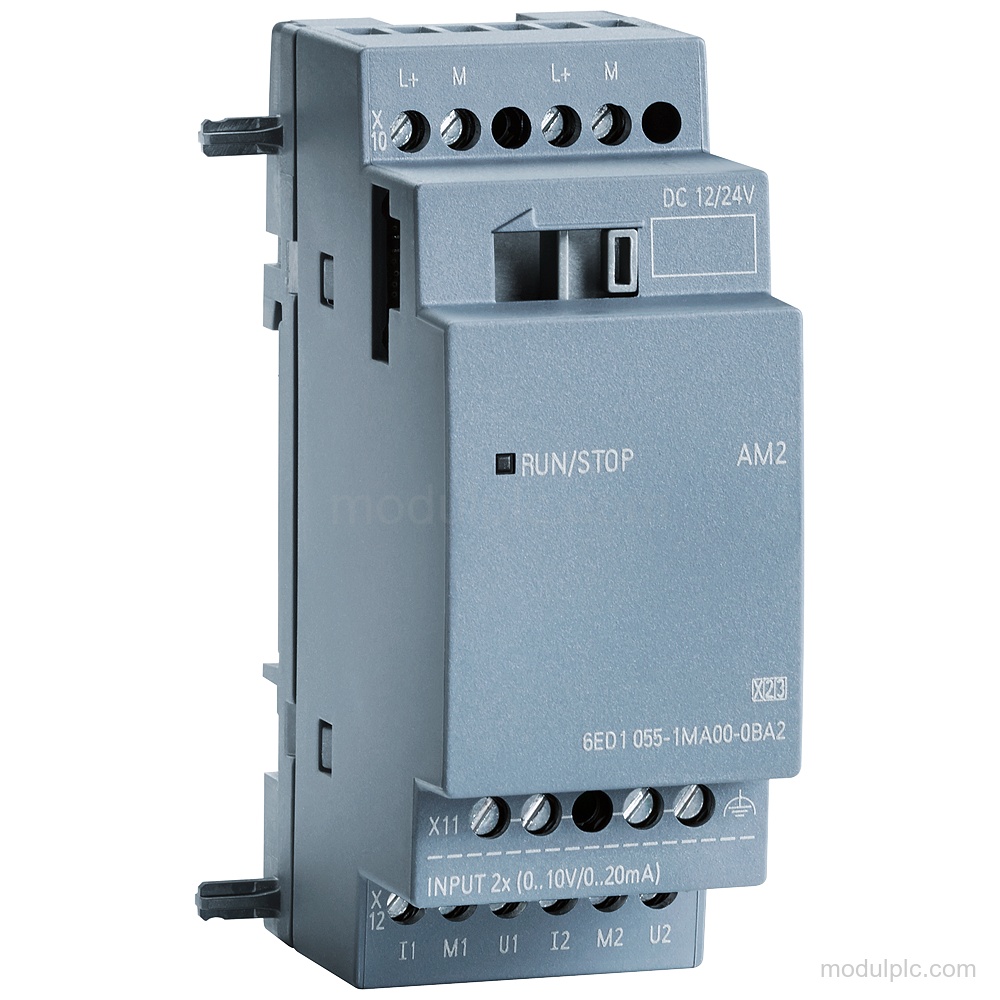

| Module type | SIPLUS LOGO! AM2 expansion module |
| Analog inputs | 2 |
| Voltage input range | 0 to +10 V |
| Current input range | 0/4 mA to 20 mA |
| Supply | 12 V DC or 24 V DC; 10.8 V DC to 28.8 V DC |
| Mounting | 35 mm DIN rail, 2 spacing units wide |
| Operating temperature | -40 °C to 70 °C; cold restart minimum -25 °C |
| Protection | IP20 |
| Typical current consumption | 30 mA |
Key Features
- Analog inputs: 2 analog inputs support 0 to +10 V and 0/4 mA to 20 mA signals; resistance thermometer input is not supported.
- Supply: 12 V DC or 24 V DC supply, with a permissible range of 10.8 V DC to 28.8 V DC.
- Mounting: Mounts on a 35 mm DIN rail and occupies 2 spacing units.
- Operating temperature: Ambient temperature during operation: -40 °C to 70 °C; cold restart minimum is -25 °C, with condensation or frost permitted during cold restart but no commissioning under condensation conditions.
- Protection and coating: IP20 degree of protection and conformal coating for high reliability.
- Dimensions and current: Dimensions are 35.5 mm wide, 90 mm high, and 58 mm deep; typical current consumption is 30 mA.
Frequently Asked Questions
1. What is the function of Siemens 6AG1055-1MA00-7BA2?
It is a SIPLUS LOGO! AM2 expansion module with 2 analog inputs.
2. Which signals can the 2 analog inputs accept?
They accept 0 to +10 V and 0/4 mA to 20 mA signals. Resistance thermometer input is not supported.
3. What supply does the module require?
The module supports 12 V DC and 24 V DC, with a permissible range of 10.8 V DC to 28.8 V DC.
4. How is the module mounted?
It mounts on a 35 mm DIN rail and is 2 spacing units wide.
5. What should be verified before requesting a quotation?
Verify the exact order number, input signal range, supply range, DIN-rail mounting space, IP20 protection, and operating temperature requirements.
