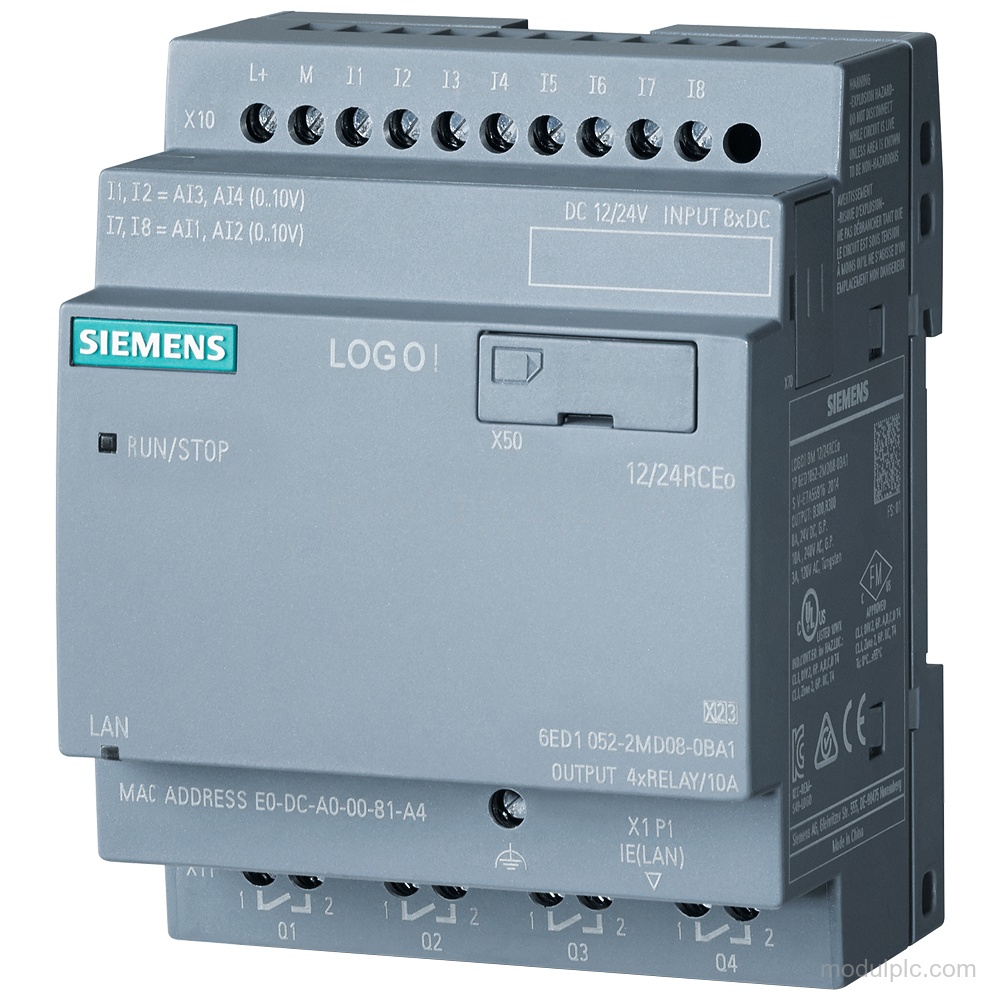

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIPLUS LOGO! logic module |
| Based on | 6ED1052-2MD08-0BA1 |
| Digital inputs | 8; 4 can be used in analog mode (0 to 10 V) |
| Digital outputs | 4 relay outputs |
| Rated supply | 12 V DC or 24 V DC |
| Permissible supply range | 10.8 V to 28.8 V |
| Interface | Ethernet |
| Mounting | 35 mm DIN rail, 4 spacing units wide |
| Protection feature | Conformal coating, Class 2 according to EN 61086 |
Applications
- Digital signal acquisition: Acquires digital signals through 8 digital inputs, including 4 inputs usable in 0 to 10 V analog mode.
- Relay output switching: Switches digital loads through 4 relay outputs, with contact switching capacity up to 10 A for resistive loads or 3 A for inductive loads.
Key Features
- Digital I/O: 8 digital inputs, with 4 usable in analog mode from 0 to 10 V, and 4 relay digital outputs.
- Supply voltage: Rated supply: 12 V DC or 24 V DC; permissible range: 10.8 V to 28.8 V.
- Communication and web functions: Ethernet, integrated web server, data log, user-defined web pages, and cloud connection in all LOGO! 8.3 basic units.
- Installation: Mounts on a 35 mm DIN rail and is 4 spacing units wide.
- Operating temperature: Ambient operating temperature: -40 °C to 70 °C; at temperatures above 55 °C, the maximum load is 1 A per relay or 3 A per relay with half the number of DIs and no adjacent points.
- Conformal coating: Conformal coating for printed circuit board assemblies according to EN 61086, Class 2 for high reliability; the unit has no display.
Frequently Asked Questions
1. How many inputs and outputs does the 6AG1052-2MD08-7BA1 have?
It has 8 digital inputs, including 4 usable in analog mode from 0 to 10 V, and 4 relay digital outputs.
2. What supply voltage does this logic module use?
Its rated supply is 12 V DC or 24 V DC, with a permissible range from 10.8 V to 28.8 V.
3. What communication interface is provided?
The module has Ethernet, an integrated web server, a data log, and user-defined web pages.
4. How is the module mounted?
It mounts on a 35 mm DIN rail and is 4 spacing units wide.
5. Does the module include a display or short-circuit protection for its outputs?
It is without a display, and the digital outputs have no short-circuit protection; external fusing is necessary.
