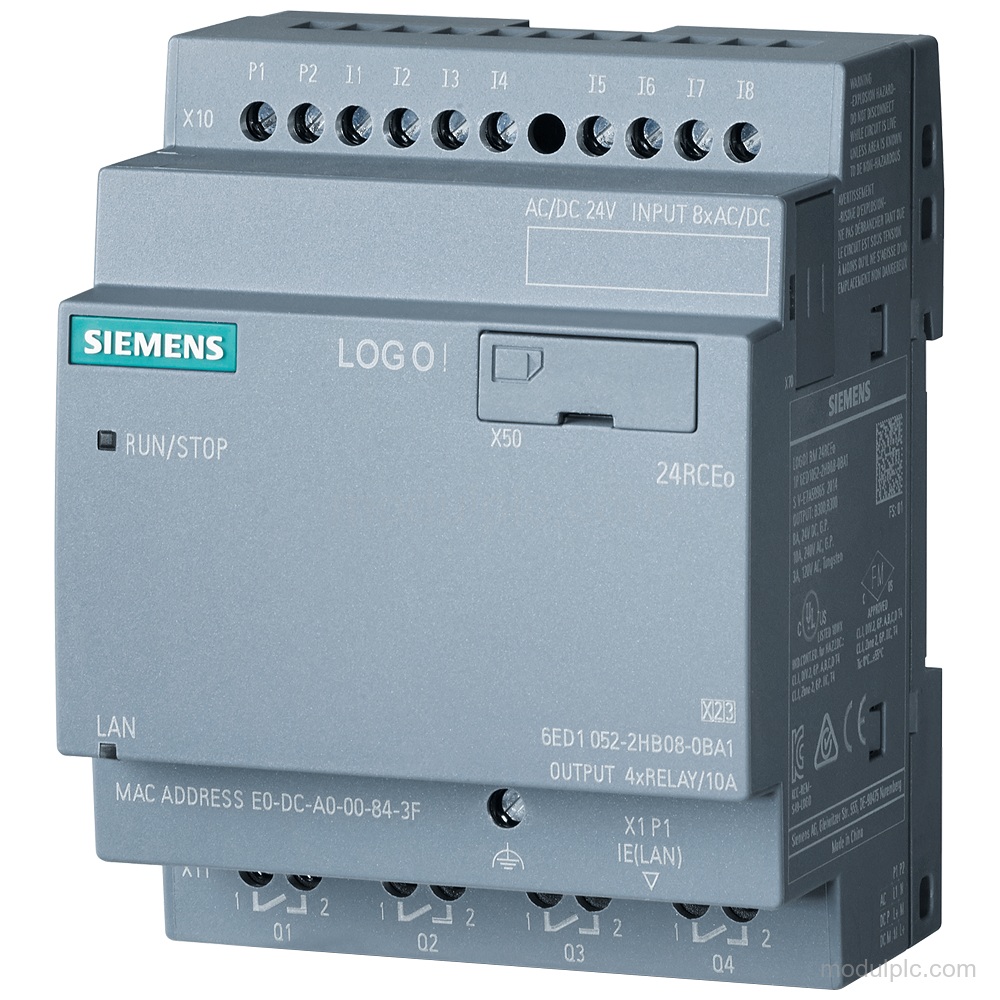

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 4 relay outputs |
| Supply | 24 V DC/24 V AC |
| Permissible DC range | 20.4 V to 28.8 V |
| Line frequency | 47 Hz to 63 Hz |
| Mounting | 35 mm DIN rail, 4 spacing units wide |
| Communication | Ethernet |
| Display | Without display |
| Memory | 400 blocks |
| Contact switching capacity | 3 A maximum with inductive load; 10 A maximum with resistive load |
Applications
- Data logging: The module provides a data log function.
- Web-based access: The module provides an integrated web server and user-defined web pages.
Key Features
- Digital I/O: 8 digital inputs and 4 digital relay outputs.
- Supply: 24 V DC or 24 V AC supply; the permissible DC range is 20.4 V to 28.8 V.
- Ethernet functions: Ethernet, integrated web server, data log, and user-defined web pages.
- DIN-rail mounting: Mounts on a 35 mm DIN rail and is 4 spacing units wide.
- Switching capacity: Maximum contact switching capacity is 3 A with inductive load and 10 A with resistive load.
- Conformal coating and lifecycle: Conformal coating, -40…+70 °C, start up -25 °C; start of final year of support.
Frequently Asked Questions
1. How many digital inputs and outputs does 6AG1052-2HB08-7BA1 have?
It has 8 digital inputs and 4 digital relay outputs.
2. What supply does 6AG1052-2HB08-7BA1 use?
It uses 24 V DC or 24 V AC. The permissible DC range is 20.4 V to 28.8 V, and the permissible line-frequency range is 47 Hz to 63 Hz.
3. How is 6AG1052-2HB08-7BA1 mounted?
It mounts on a 35 mm DIN rail and is 4 spacing units wide.
4. Does 6AG1052-2HB08-7BA1 include a display?
It is without display.
