Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIPLUS LOGO! logic module |
| Digital inputs | 8; 4 usable in analog mode, 0 to 10 V |
| Digital outputs | 4; transistor |
| Supply | 24 V DC |
| Permissible supply range | 20.4 V to 28.8 V |
| Communication interface | Ethernet |
| Mounting | 35 mm DIN rail, 4 spacing units wide |
| Display | Without display |
| Operating temperature | -40 °C to 70 °C |
| Memory | 400 blocks |
| Conformal coating | Yes; Class 2 for high reliability |
Key Features
- Digital inputs and outputs: 8 digital inputs, of which 4 can be used in analog mode from 0 to 10 V, plus 4 transistor digital outputs.
- Ethernet and web functions: Ethernet, an integrated web server, data log, and user-defined web pages.
- Supply and output protection: Rated supply: 24 V DC; permissible range: 20.4 V to 28.8 V. Digital outputs have electrical short-circuit protection at 1 A.
- DIN-rail mounting: Mounting on 35 mm DIN rail, 4 spacing units wide.
- Environmental design: Conformal coating with operation from -40 °C to 70 °C; at temperatures above 55 °C, maximum load is 0.2 A per output.
Frequently Asked Questions
1. What type of module is 6AG1052-2CC08-7BA1?

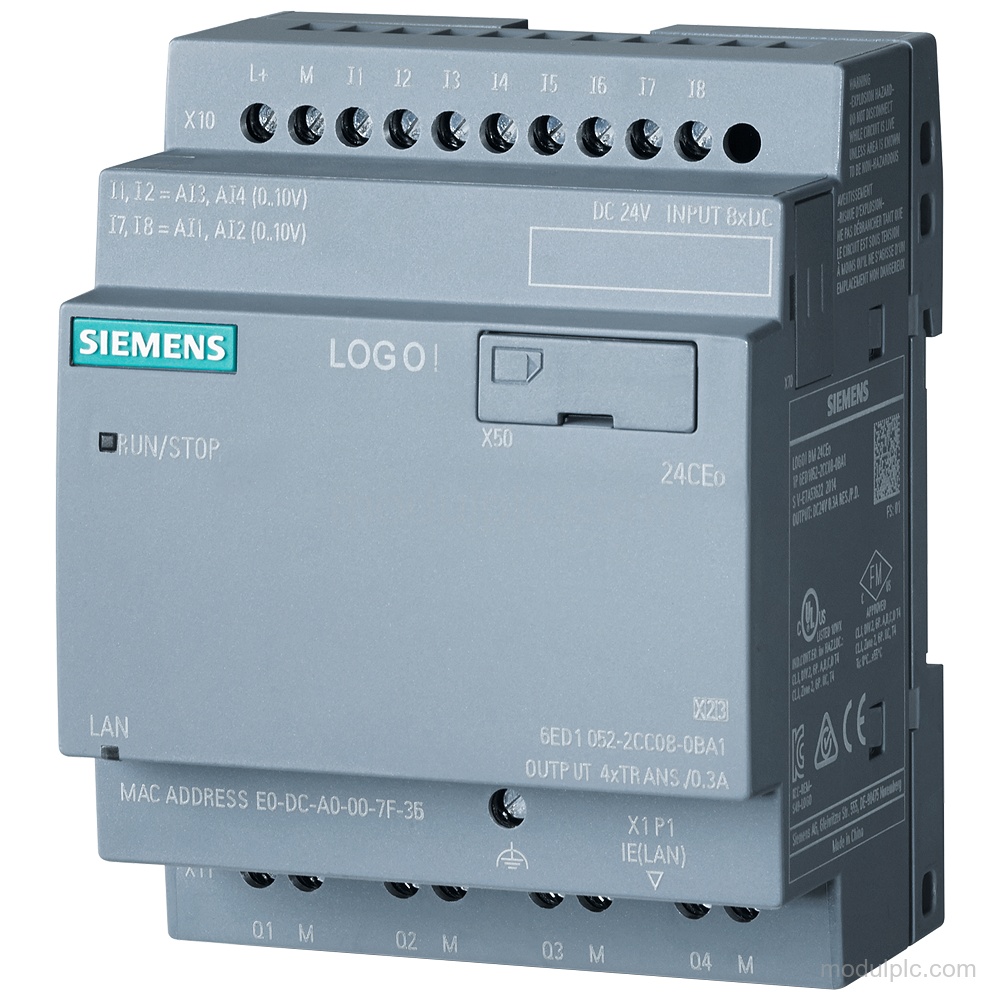

It is a Siemens SIPLUS LOGO! logic module based on 6ED1052-2CC08-0BA1, with conformal coating and without display.
2. How many inputs and outputs does the module have?
It has 8 digital inputs, including 4 that can be used in analog mode from 0 to 10 V, and 4 transistor digital outputs.
3. What supply voltage does it use?
The rated supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
4. How is the module mounted?
It mounts on a 35 mm DIN rail and is 4 spacing units wide.
