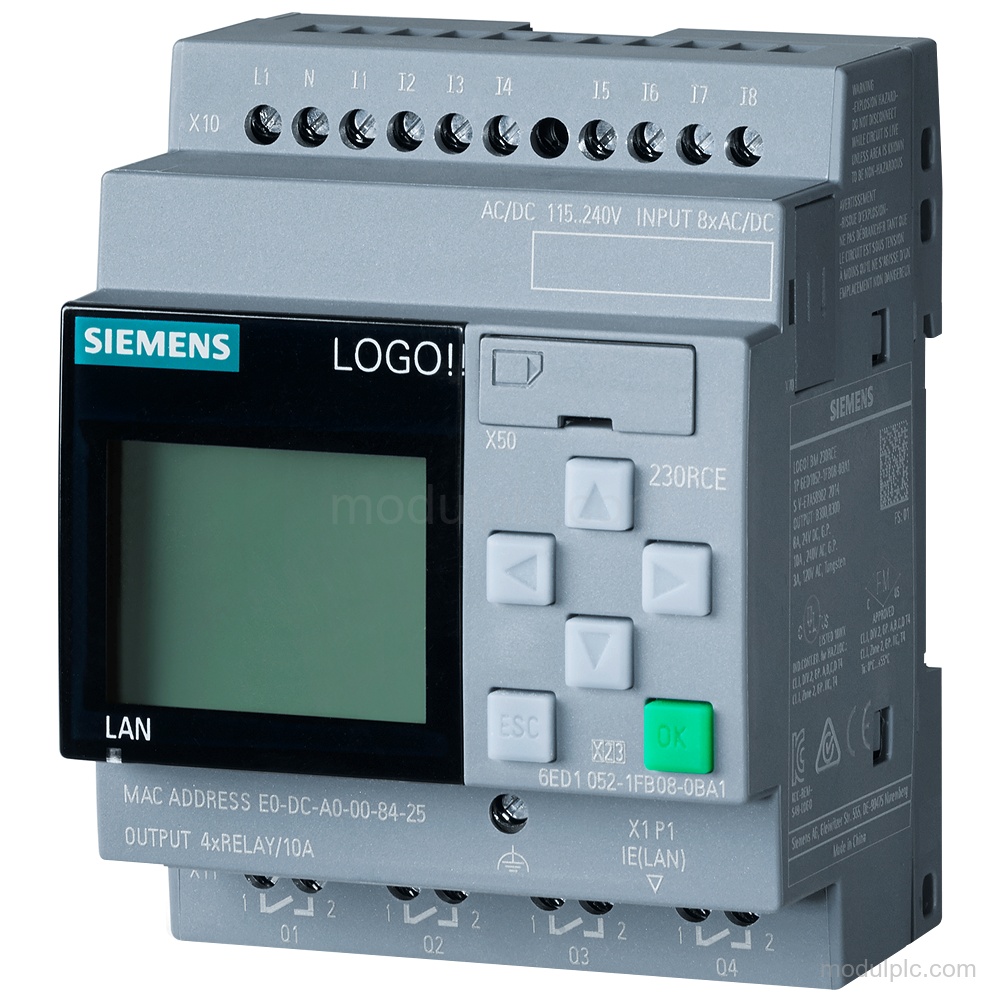

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 4; relays |
| Supply | 115 V AC, 230 V AC, 115 V DC, and 230 V DC |
| Permissible DC supply range | 100 V to 253 V |
| Communication interface | Ethernet |
| Mounting | 35 mm DIN rail, 4 spacing units wide |
| Operating temperature | -25 °C to 60 °C; above +55 °C maximum load 1 A per relay |
Applications
- Logic control: Provides logic-module control using 8 digital inputs and 4 relay digital outputs.
- Data logging: Records data with the integrated data log function.
- Web-page operation: Provides user-defined web pages through the integrated web server.
Key Features
- Digital I/O: 8 digital inputs and 4 digital outputs with relays.
- Supply: Rated supply values: 115 V AC, 230 V AC, 115 V DC, and 230 V DC; permissible DC range: 100 V to 253 V.
- Communication and web functions: Ethernet, integrated web server, data log, and user-defined web pages.
- Installation: Mounts on a 35 mm DIN rail and is 4 spacing units wide.
- Conformal coating: Conformal coating for printed circuit board assemblies according to EN 61086, Class 2 for high reliability.
- Operating conditions: Ambient temperature during operation: -25 °C to 60 °C; above +55 °C, maximum load is 1 A per relay.
Frequently Asked Questions
1. What I/O does Siemens 6AG1052-1FB08-7BA1 have?
It has 8 digital inputs and 4 digital outputs with relays.
2. What supply values does this SIPLUS LOGO! module support?
It has rated supply values of 115 V AC, 230 V AC, 115 V DC, and 230 V DC. The permissible DC range is 100 V to 253 V.
3. Does it provide Ethernet and web functions?
Yes. It has Ethernet, an integrated web server, data log, and user-defined web pages.
4. How is the module mounted?
It mounts on a 35 mm DIN rail and is 4 spacing units wide.
