Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product designation | SIMOCODE pro V PB |
| I/O configuration | 4 inputs / 3 outputs |
| Relay outputs | 3 monostable relay outputs |
| Communication interface | PROFIBUS DP via RS-485 |
| Maximum transfer rate | 12 Mbit/s |
| Control supply | 110 … 240 V AC/DC |
| Thermistor connection | 1 input |
| Mounting | Screw and snap-on mounting |
| Operating temperature | -25 … +60 °C |
Applications
- Motor starting and control: Supports direct start, reverse starting, star-delta circuits, Dahlander circuits, pole-changing switch circuits, slide control, and valve control.
- Motor protection evaluation: Supports evaluation of thermistor motor protection, overload protection, phase failure detection, and overcurrent detection 1 phase.

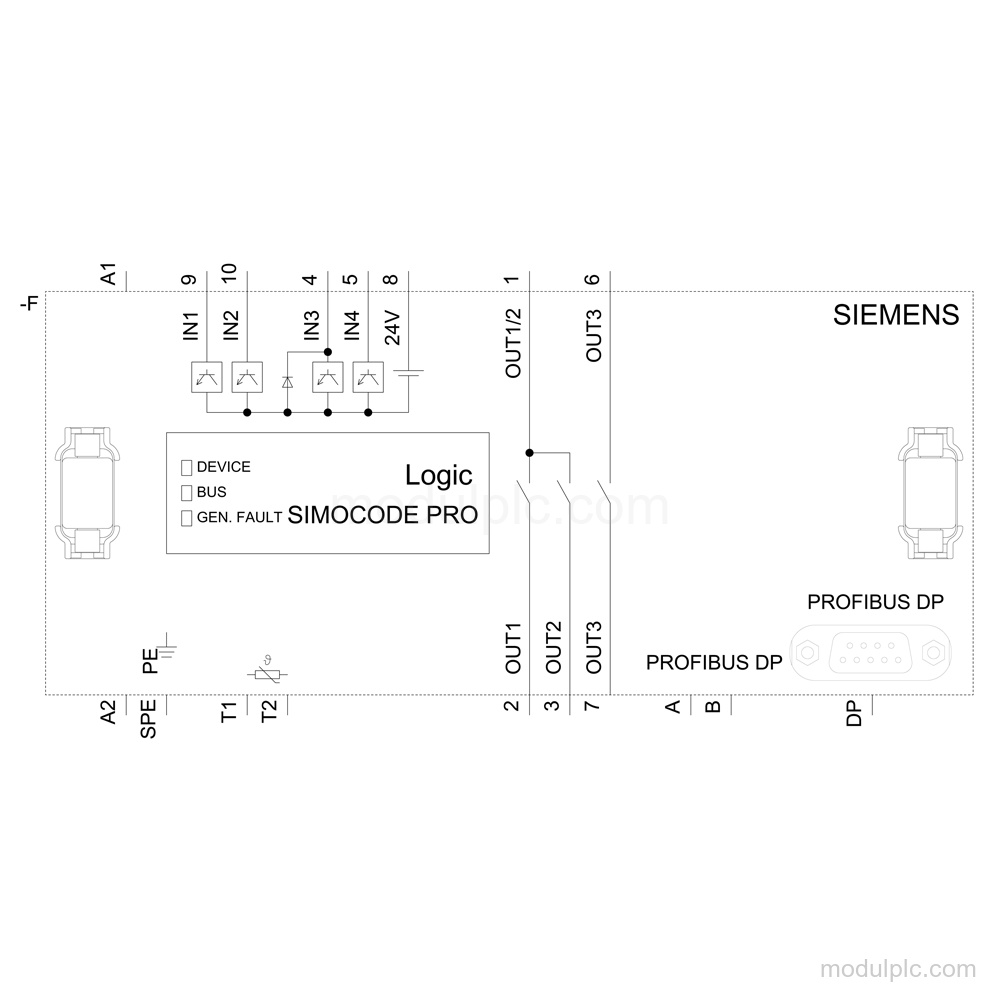

Key Features
- I/O configuration: 4 freely parameterizable inputs and 3 outputs, including 3 monostable relay outputs.
- PROFIBUS DP interface: PROFIBUS DP communication via RS-485 with a maximum transfer rate of 12 Mbit/s.
- Supply and thermistor connection: Control supply: 110 … 240 V AC/DC; includes 1 input for thermistor connection.
- Motor control functions: Supports soft starter control, direct start, reverse starting, star-delta circuits, and Dahlander circuits.
- Mounting and dimensions: Screw and snap-on mounting; 111 mm high, 45 mm wide, and 124 mm deep.
- Operating conditions: Ambient temperature during operation: -25 … +60 °C; conformal coating is included.
Frequently Asked Questions
1. How many inputs and outputs does 6AG1010-1AU00-4AA0 have?
It has 4 inputs and 3 outputs. All 3 outputs are monostable relay outputs.
2. Which communication interface does this basic unit use?
It uses a PROFIBUS DP interface via RS-485, with a maximum transfer rate of 12 Mbit/s.
3. What supply voltage does it require?
The control supply is 110 … 240 V AC/DC.
4. How is the unit mounted?
It supports screw and snap-on mounting. The mounting position is any.
5. Does the unit include a thermistor connection input?
Yes. It has 1 input for thermistor connection.
