Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PROFIBUS connector |
| Transmission rate | up to 12 Mbps |
| Cable outlet | 90° |
| Connection method | FastConnect insulation displacement |
| Socket | PG socket |
| Ambient temperature during operation | 0 °C to 60 °C |
| Product lifecycle | Announcement of product phase-out |
Applications

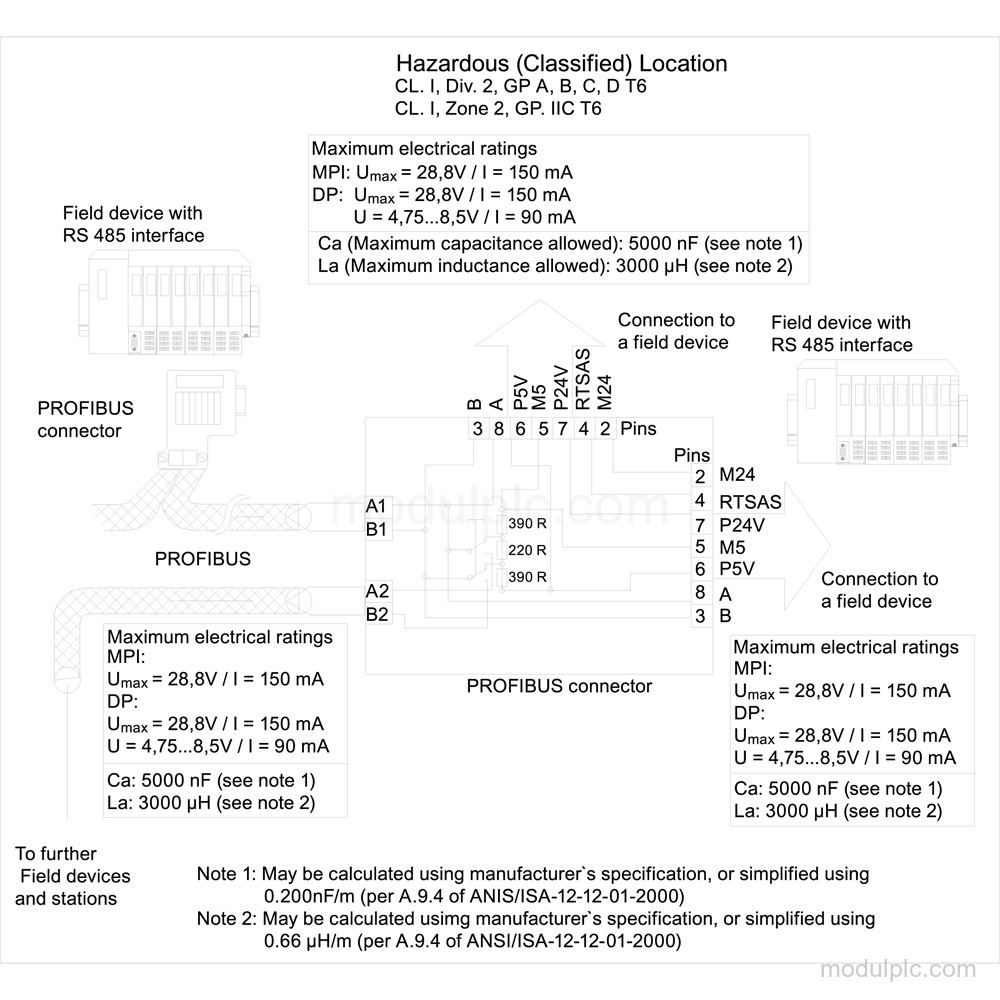

- PROFIBUS connection: Provides a connection plug for PROFIBUS.
Key Features
- PROFIBUS connection plug: Product type: PROFIBUS connector for PROFIBUS connections up to 12 Mbps.
- 90° cable outlet: The connector has a 90° cable outlet.
- FastConnect insulation displacement: Connection method: FastConnect insulation displacement.
- PG socket: The connector has a PG socket.

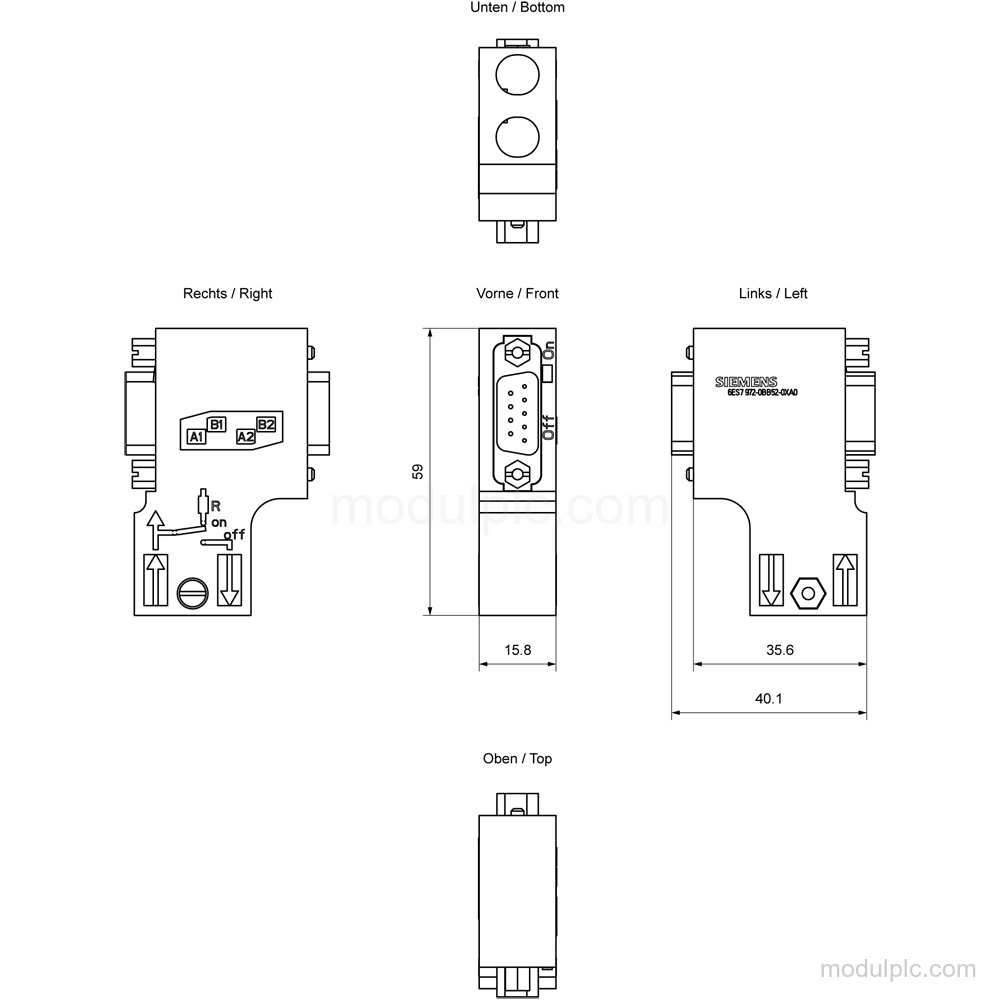

- Dimensions and weight: Dimensions: 15.8 mm width, 59 mm height, and 35.6 mm depth. Weight, approx.: 10 g.
- Operating temperature: Ambient temperature during operation: 0 °C to 60 °C.
Frequently Asked Questions
1. What is the function of Siemens 6ES7972-0BB52-0XB0?
It is a PROFIBUS connection plug for PROFIBUS up to 12 Mbps.
2. What cable outlet does the connector have?
It has a 90° cable outlet.
3. Which connection method and socket are included?
It has FastConnect insulation displacement and a PG socket.
4. What are the dimensions and operating temperature?
Dimensions are 15.8 mm x 59 mm x 35.6 mm (W x H x D), and the ambient temperature during operation is 0 °C to 60 °C.
