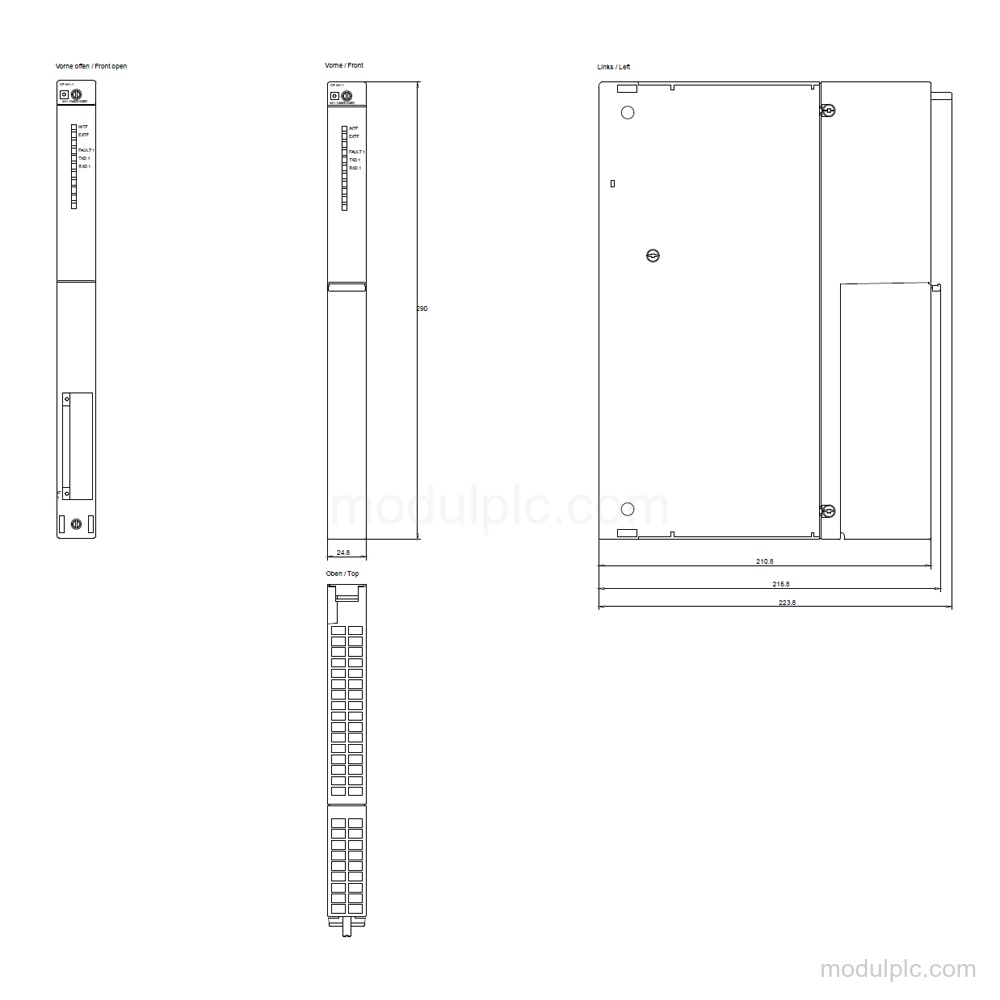

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC S7-400 CP 441-1 coupling module |
| Channels | 1 |
| Interfaces | 1; variable |
| Point-to-point transmission rate | 300 bps to 115.2 kbit/s |
| Supported protocols | 3964 (R), ASCII, Printer |
| Rated supply | 5 V DC; 24 V DC |
| Power loss, typ. | 2.1 W; incl. 1×20 mA TTY module |
| Input current | From backplane bus 5 V DC, max. 300 mA; without interface module |
| Operating ambient temperature | 0 °C to 60 °C |
Applications
- Point-to-point connections: Provides point-to-point communication through the CP 441-1 coupling module.
- Printer communication: Supports HP-Deskjet, HP-Laserjet, IBM-Proprinter, and user-defined printers.
Key Features
- Point-to-point coupling module: CP 441-1 for point-to-point connections with 1 channel and 1 variable interface.
- Transmission rate: Maximum 115.2 kbit/s; minimum 300 bps for point-to-point connections.
- Integrated protocol drivers: Supports 3964 (R), ASCII, and Printer drivers; RK 512 and reloadable customer-specific drivers are not supported.
- Supply: Rated supply values: 5 V DC and 24 V DC.
- Temperature and humidity: Operating ambient temperature: 0 °C to 60 °C. Maximum operating relative humidity: 95 %, no condensation.
- Configuration package: Includes a configuration package on CD; the input-current specification is without interface module.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7441-1AA05-0AE0?
It is a SIMATIC S7-400 CP 441-1 coupling module for point-to-point connections.
2. How many channels and interfaces does the CP 441-1 have?
It has 1 channel and 1 variable interface.
3. Which protocols are supported?
The integrated drivers support 3964 (R), ASCII, and Printer. RK 512 and reloadable customer-specific drivers are not supported.
4. What supply values does this module use?
The rated supply values are 5 V DC and 24 V DC.
5. What should be verified before requesting a quote?
Verify the required interface type, protocol, transmission rate, printer support, and the fact that the specification is without interface module.
