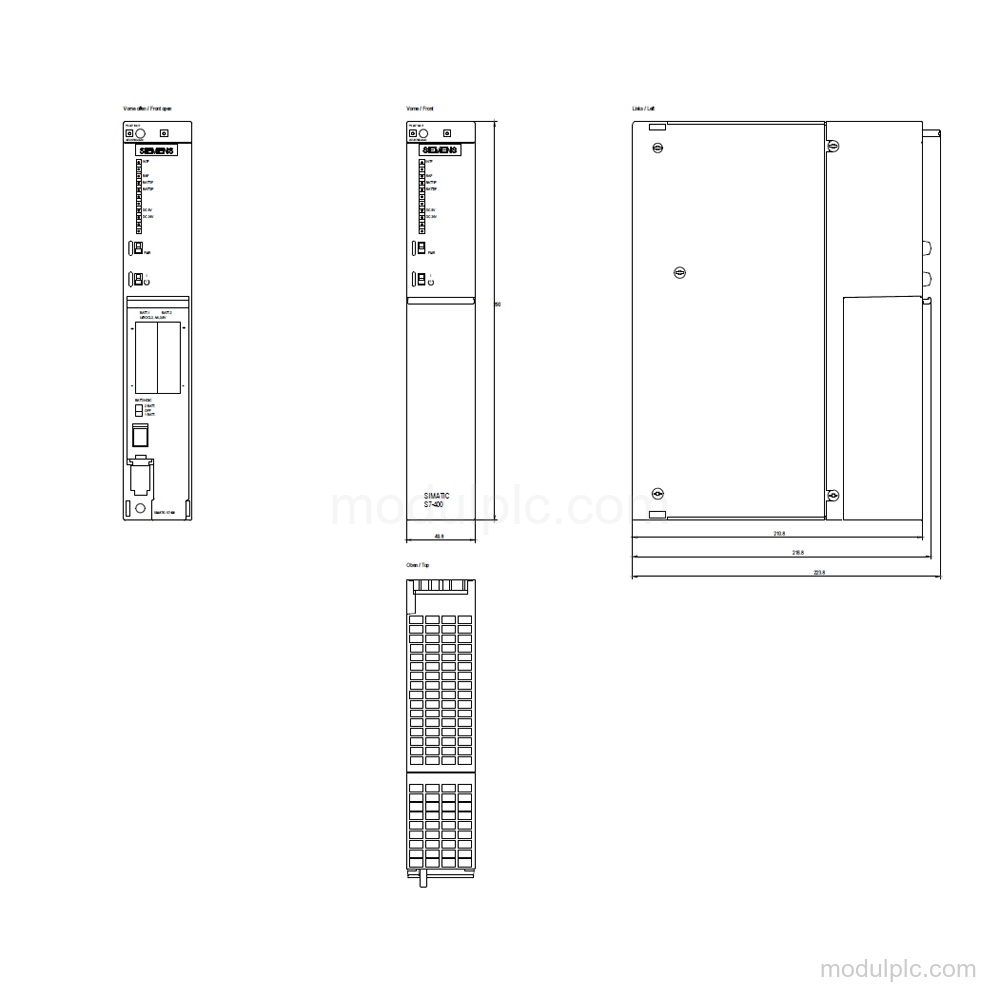

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input voltage | 120 V AC, 230 V AC, 120 V DC, or 230 V DC |
| Output voltage | 5 V DC and 24 V DC |
| Backplane bus current, 5 V DC | 10 A max.; no base load required |
| Backplane bus current, 24 V DC | 1 A max.; idling-proof |
| Line frequency | 50 Hz or 60 Hz rated; permissible range 47 Hz to 63 Hz |
| Mains failure stored energy time | 20 ms |
| Required slots | 2 |
| Short-circuit protection | Yes |
| Active power input, typ. | 95 W |
| Power loss, typ. | 20 W |
| Potential separation | Primary/secondary: Yes |
| Equipment protection class | I, with protective conductor |
Applications
- Redundant power supply: The PS407 is designed for redundant use.
- Backplane bus power: The power supply provides 5 V DC and 24 V DC for the backplane bus.
Key Features
- Wide-range input: Rated input values are 120 V AC, 230 V AC, 120 V DC, and 230 V DC.
- Backplane bus output: Output is DC: 5 V DC at up to 10 A for the backplane bus, with no base load required, and 24 V DC at up to 1 A, idling-proof.
- Input frequency: Rated line frequency is 50 Hz or 60 Hz; the permissible range is 47 Hz to 63 Hz.
- Mains buffering: Stored energy time during mains or voltage failure is 20 ms; mains buffering follows the NAMUR recommendation.
- Protection and isolation: The power supply has short-circuit protection, primary/secondary potential separation, overvoltage category II, and equipment protection class I with protective conductor.
- Installation and backup: The hardware configuration requires 2 slots. An optional backup battery is 1x lithium AA, 3.6 V / 2.2 Ah.
Frequently Asked Questions
1. What input voltages does the 6ES7407-0KR02-0AA0 support?
It has rated input values of 120 V AC, 230 V AC, 120 V DC, and 230 V DC.
2. How much current is available for the backplane bus?
The 5 V DC backplane bus has up to 10 A with no base load required. The 24 V DC backplane bus has up to 1 A and is idling-proof.
3. What line frequency range does the PS407 support?
The rated line frequency is 50 Hz or 60 Hz, with a permissible range of 47 Hz to 63 Hz.
4. How many slots are required for installation?
The hardware configuration requires 2 slots.
