Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Connector type | Front connector in push-in design, 40-pole |
| I/O signal connection | Push-in terminal |
| Lines per connection | 1; or combination of 2 conductors of up to 1.5 mm2 (total) in a shared ferrule |
| Connectable cable cross-sections | 0.25 mm2 to 1.5 mm2, according to the stated cable type and end-sleeve conditions |
| Included components | 4 potential bridges and cable ties |
Applications
- I/O signal connection: Provides a push-in terminal connection for I/O signals.
Key Features

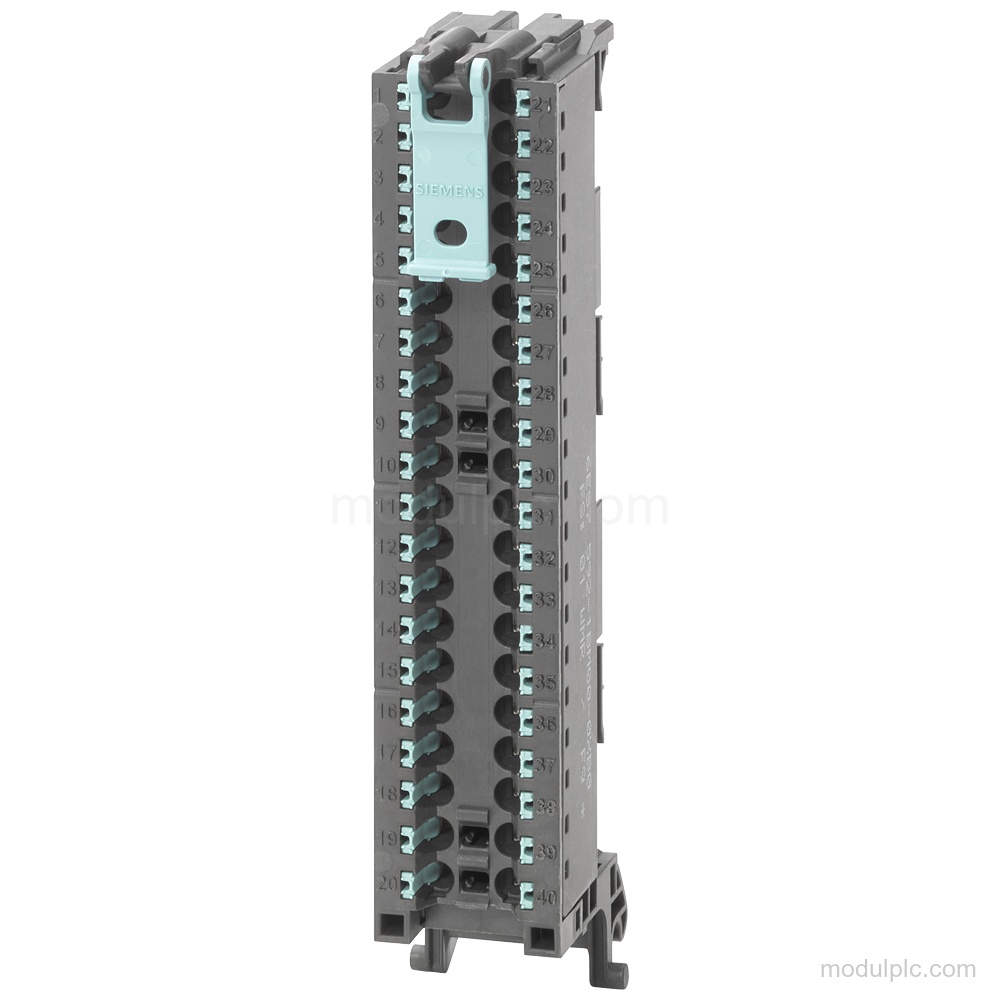

- 40-pole push-in front connector: Front connector in push-in design with a push-in terminal for I/O signals.
- Included components: Includes 4 potential bridges and cable ties.
- Conductor cross-sections: Connectable cable cross-sections are 0.25 mm2 to 1.5 mm2 for massive cables, flexible cables without end sleeve, and flexible cables with end sleeve, with the stated cable conditions.
- Wire preparation: Stripped cable length: 8 mm to 11 mm. End sleeves acc. to DIN 46228: Form A, 10 mm long without plastic sleeve; Form E, 8 mm and 10 mm long with plastic sleeve.

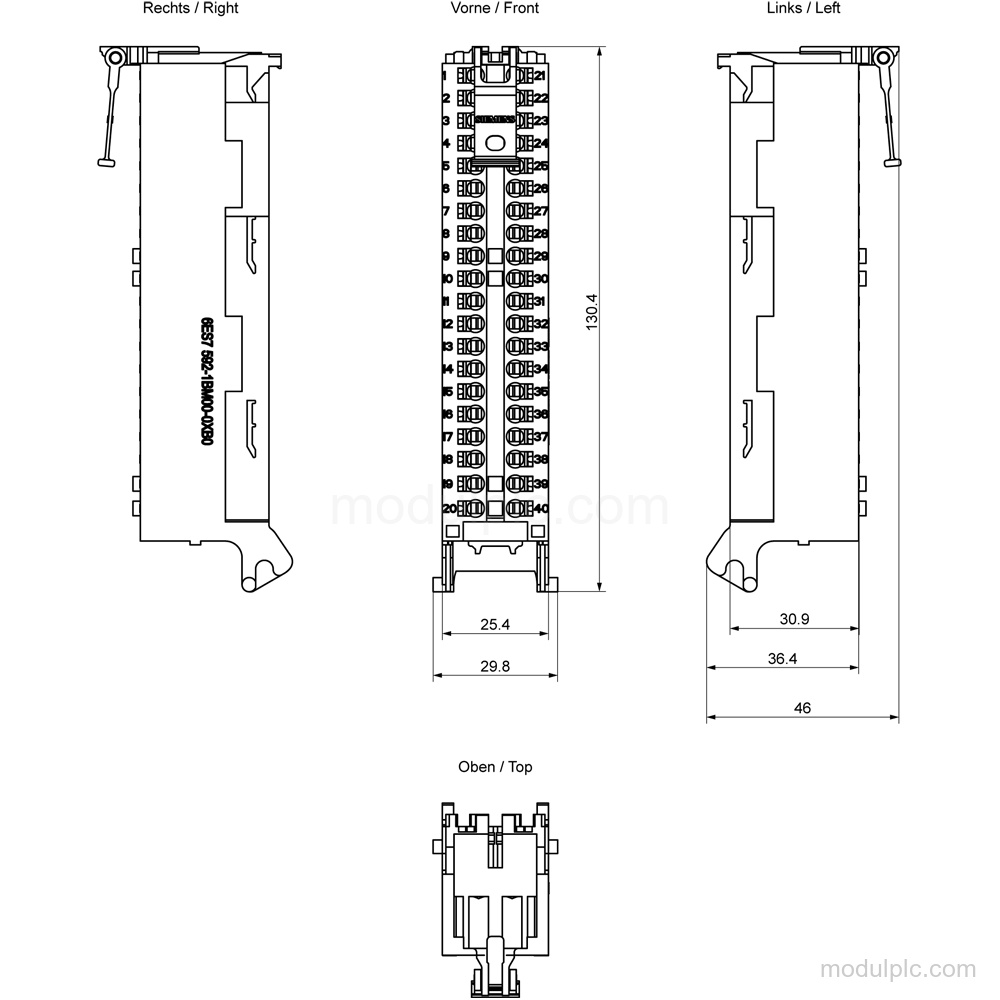

- Dimensions and weight: Dimensions: 29.8 mm width, 130.5 mm height, and 46 mm depth. Weight, approx.: 123 g.
- Mounting tool: Mounting tool: screwdriver, conical design, 3 mm to 3.5 mm.
Frequently Asked Questions
1. What type of connector is Siemens 6ES7592-1BM00-0XB0?
It is a 40-pole front connector in push-in design with a push-in terminal for I/O signals.
2. How many lines can be connected per connection?
1 line, or a combination of 2 conductors of up to 1.5 mm2 (total) in a shared ferrule.
3. What cable cross-sections does it accept?
It accepts 0.25 mm2 to 1.5 mm2 cable cross-sections for the stated massive and flexible cable conditions.
4. What is included with the connector?
It includes 4 potential bridges and cable ties.
