Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Connector type | 40-pole front connector in push-in design |
| Connection method | Push-in terminal |
| Lines per connection | 1; or max. 8x 2 conductors to 1.5 mm2 in a shared end sleeve and max. 32x 0.75 mm2 single core |
| Cable cross-section | 0.25 mm2 to 1.5 mm2 |
| Included item | Cable tie |
Key Features

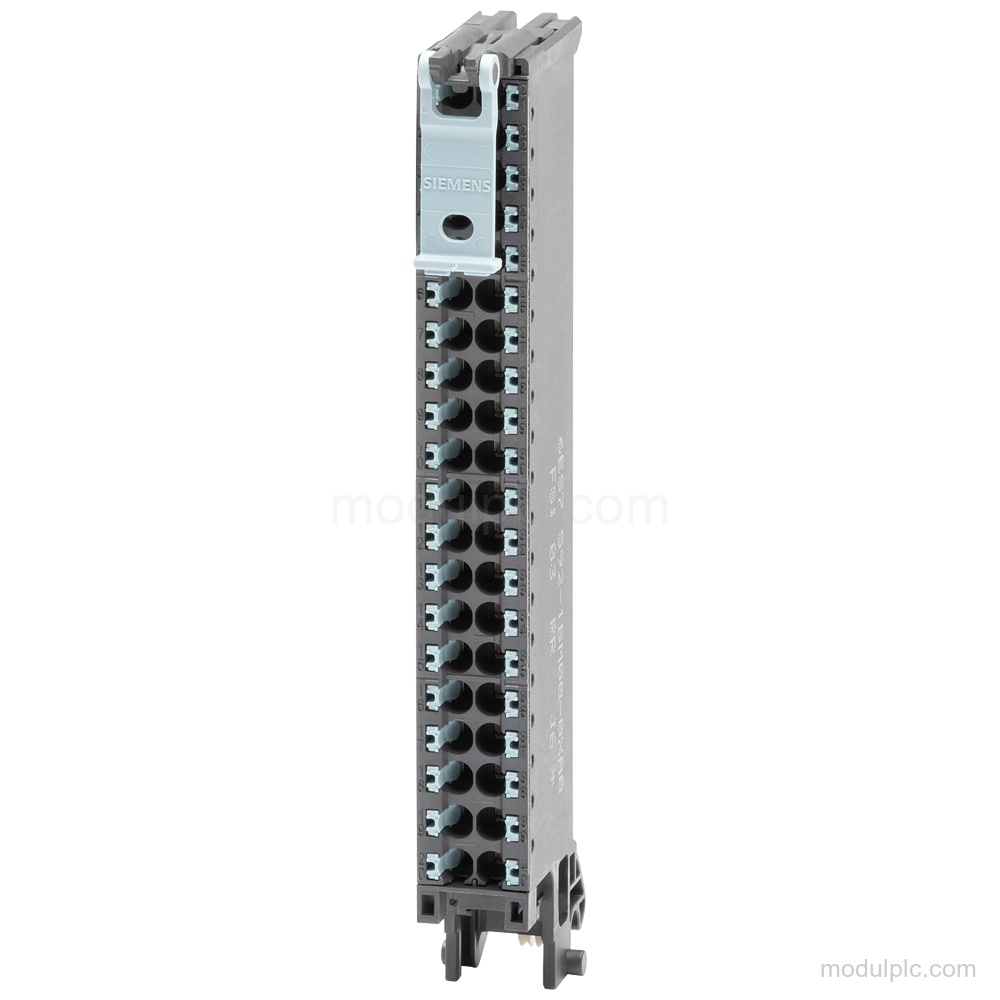

- 40-pole front connector: Front connector in push-in design for 25 mm wide modules and compact CPUs of the S7-1500.
- Push-in terminal: Connection method for I/O signals: push-in terminal.
- Cable connection capacity: Supports 1 line per connection, or up to 8x 2 conductors to 1.5 mm2 in a shared end sleeve and up to 32x 0.75 mm2 single core.
- Conductor cross-sections: Connectable cable cross-sections are 0.25 mm2 to 1.5 mm2; maximum configurations are 32x 0.75 mm2 and 8x 1.5 mm2.

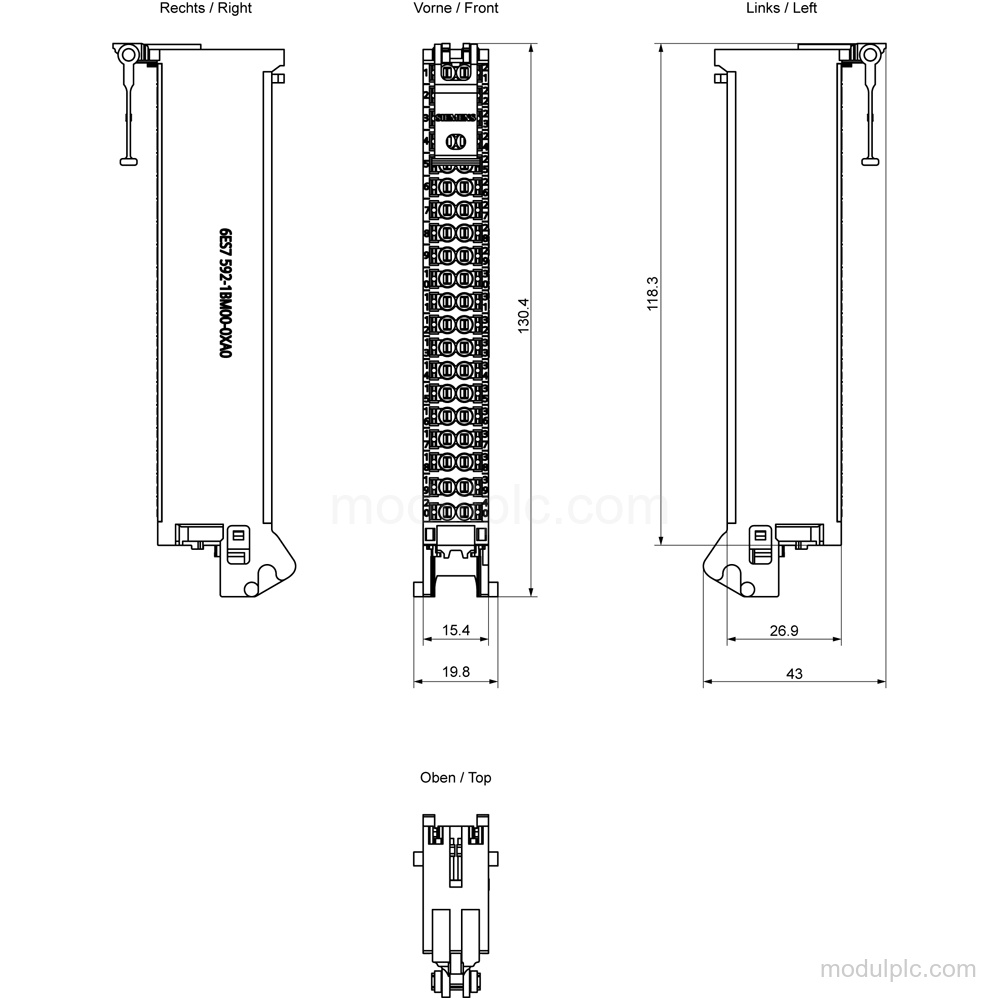

- Compact dimensions: Dimensions are 19.8 mm wide, 130.5 mm high, and 43 mm deep.
- Wire preparation and tool: Stripped cable length is 8 mm to 11 mm. Use a 3 mm to 3.5 mm conical screwdriver.
Frequently Asked Questions
1. What is the Siemens 6ES7592-1BM00-0XA0?
It is a 40-pole front connector in push-in design for 25 mm wide S7-1500 modules and compact CPUs.
2. What connection method does this front connector use?
It uses a push-in terminal for I/O signals.
3. What cable cross-sections can be connected?
Cable cross-sections from 0.25 mm2 to 1.5 mm2 can be connected. The maximum configurations are 32x 0.75 mm2 and 8x 1.5 mm2.
4. What is included with the connector?
It includes a cable tie.
