Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Connection system | 40-pole, for 35 mm wide modules |
| Connection method | Screw terminals |
| Massive cable cross-section | 0.25 mm2 to 1.5 mm2 |
| Flexible cable cross-section without end sleeve | 0.25 mm2 to 1.5 mm2 |
| Flexible cable cross-section with end sleeve | 0.25 mm2 to 1.5 mm2 |
| Tightening torque | 0.4 N·m to 0.7 N·m |
Key Features
- 40-pole front connector: Screw-type connection system for 35 mm wide modules, with 4 potential bridges and cable ties.
- Screw terminals: Connection method for I/O signals uses screw terminals.
- Supported conductors: Accepts massive cables from 0.25 mm2 to 1.5 mm2, and flexible cables from 0.25 mm2 to 1.5 mm2 with or without end sleeve.
- Wire preparation: Cable stripping length is 10 mm to 11 mm. End sleeves according to DIN 46228 are supported in Form A and Form E, 10 mm and 12 mm long.
- Mounting requirements: Use a conical-design screwdriver, 3 mm to 3.5 mm. Tightening torque is 0.4 N·m to 0.7 N·m.

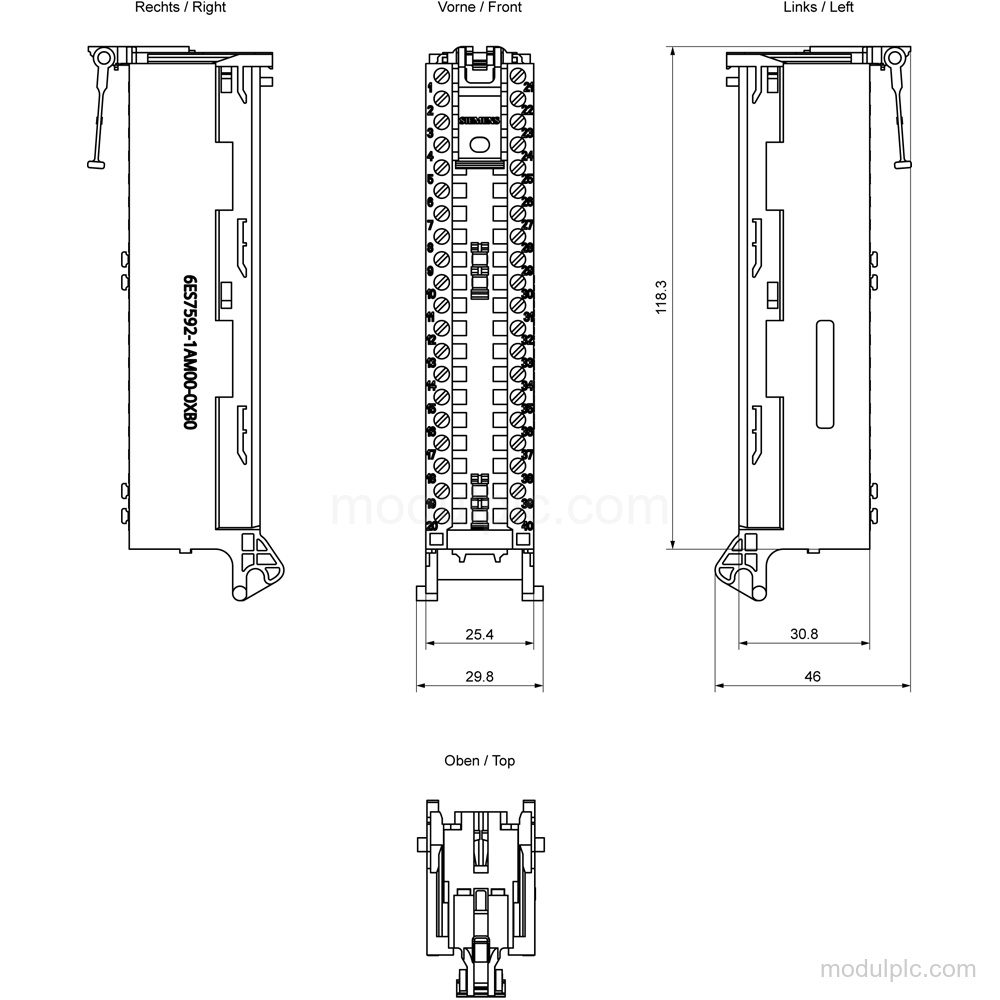

- Dimensions and weight: Dimensions are 29.8 mm wide, 130.5 mm high, and 46 mm deep; weight is approximately 123 g.
Frequently Asked Questions
1. What connection system does 6ES7592-1AM00-0XB0 use?
It has a 40-pole screw-type connection system for 35 mm wide modules and includes 4 potential bridges and cable ties.
2. What cable cross-sections can the front connector accept?
It accepts massive cables from 0.25 mm2 to 1.5 mm2 and flexible cables from 0.25 mm2 to 1.5 mm2, with or without end sleeve.
3. What wire preparation is required?
The cable stripping length is 10 mm to 11 mm. End sleeves according to DIN 46228 can be Form A or Form E, 10 mm and 12 mm long.
4. What tool and tightening torque are required for mounting?
Use a conical-design screwdriver, 3 mm to 3.5 mm. Tightening torque is 0.4 N·m to 0.7 N·m.
