Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | CM 8xIO-Link |
| IO-Link ports | 8; all 8 simultaneously controllable |
| Rated supply | 24 V DC |
| Permissible supply range | 20.4 V to 28.8 V DC |
| Process data input per port | 33 byte; max. |
| Process data output per port | 32 byte; max. |
| IO-Link cycle time | 2 ms; min. |
| Port connection types | Port type A; port type B with 24 V DC via external terminal |
| Diagnostic functions | Supply-voltage monitoring, wire break, short circuit, and group error |
| Front connector | Screw terminals or push-in; ordered separately |
Applications
- IO-Link device communication: Connects and communicates with IO-Link devices through 8 IO-Link ports.
- Digital input operation: Supports DI operating mode.
- Device parameter backup: Provides master backup and 2 kbyte device-parameter memory for each port.
Key Features
- IO-Link Master ports: Has 8 IO-Link ports, all 8 simultaneously controllable, with IO-Link protocol 1.0 and 1.1 support.
- Supply and current: Rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC. Current consumption is max. 50 mA without load.
- Process data: Process data size is max. 33 byte input and 32 byte output per port, with max. 240 byte input and 240 byte output per module.
- Diagnostics: Supports supply-voltage monitoring, wire-break, short-circuit, and group-error diagnosis. Diagnostic indication uses green and red LEDs.

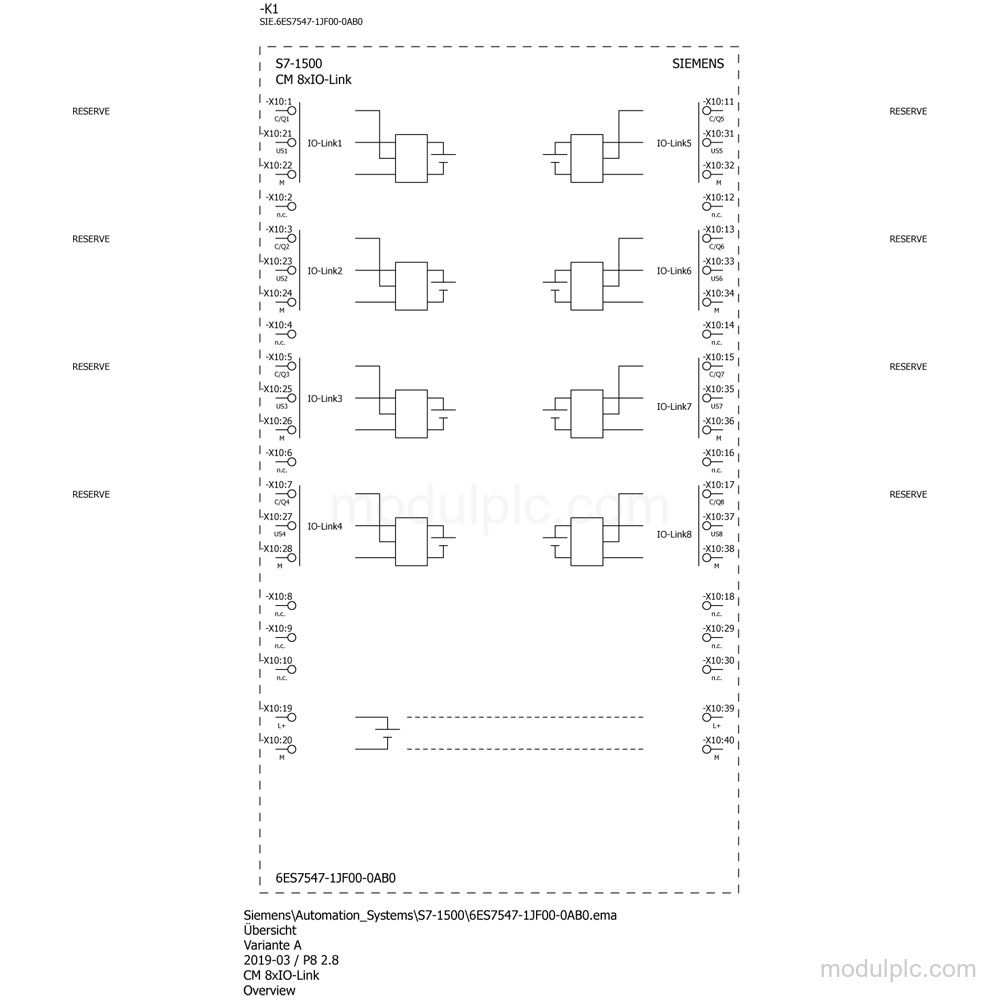

- Connection and installation: Supports port type A and port type B; port type B provides 24 V DC via an external terminal. The front connector with screw terminals or push-in connection is ordered separately.

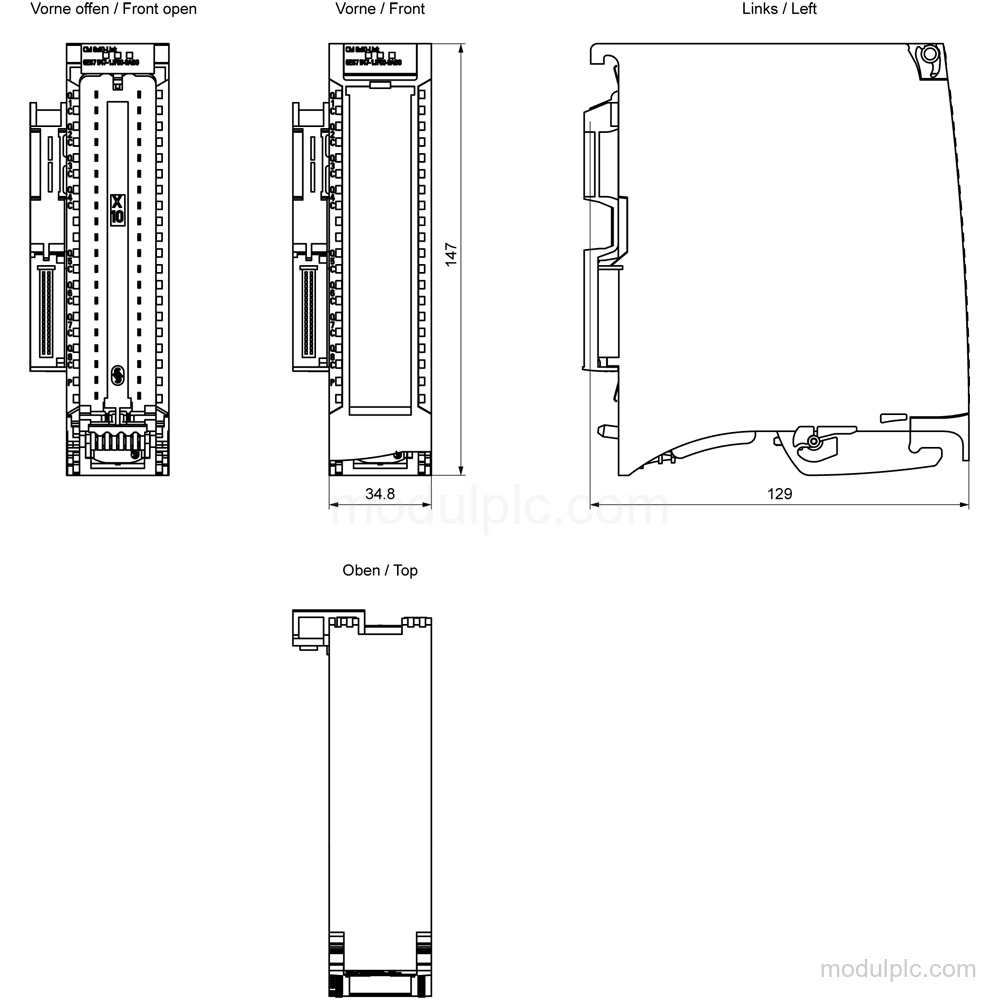

- Module dimensions: Dimensions are 35 mm wide, 147 mm high, and 129 mm deep.
Frequently Asked Questions
1. How many IO-Link ports does Siemens 6ES7547-1JF00-0AB0 have?
It has 8 IO-Link ports, and all 8 are simultaneously controllable.
2. Which IO-Link protocols does the module support?
It supports IO-Link protocol 1.0 and IO-Link protocol 1.1.
3. What supply voltage does the module require?
The rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
4. What diagnostics are available?
It supports supply-voltage monitoring, wire-break, short-circuit, and group-error diagnosis, with green and red diagnostic LEDs.
5. Is the front connector included?
It is without a front connector; the connector with screw terminals or push-in connection must be ordered separately.
