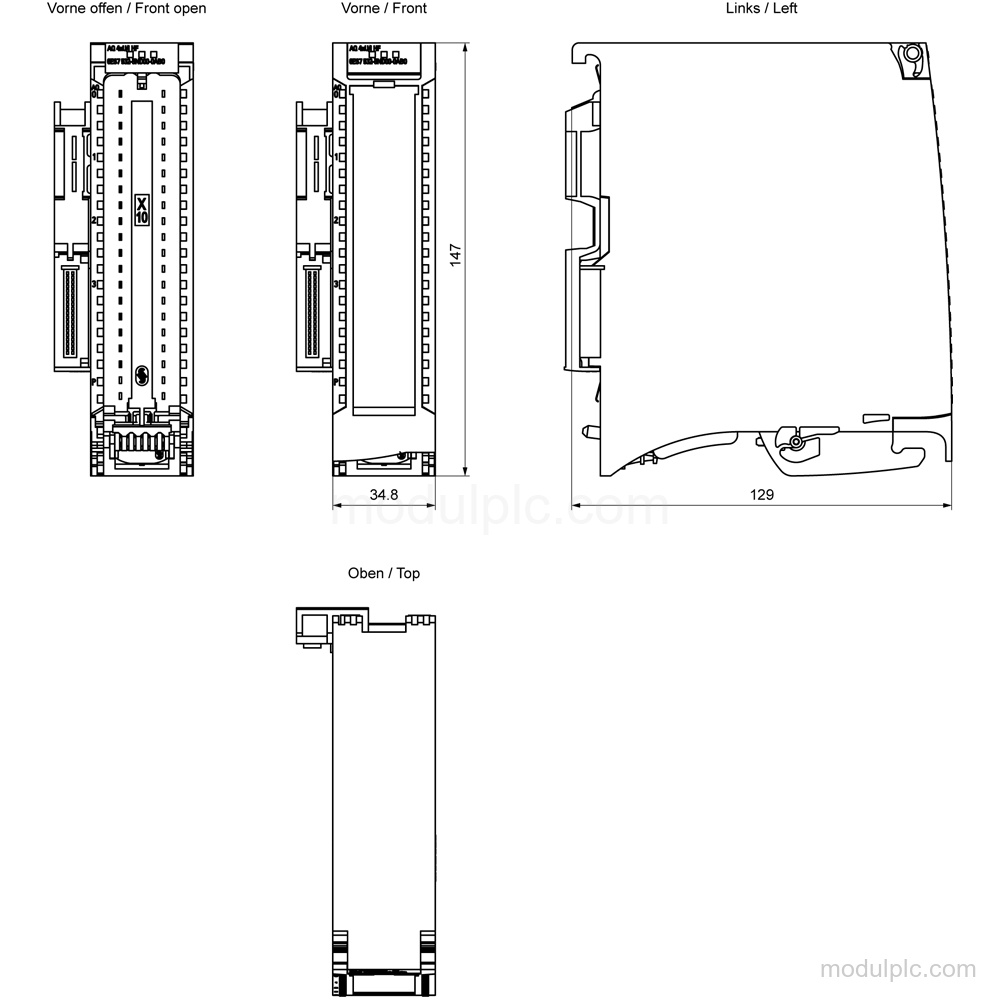

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | AQ 4xU/I HF |
| Analog output channels | 4 channels in groups of 1 |
| Resolution | 16 bit |
| Voltage output ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V |
| Current output ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V DC permissible range |
| Cycle time | 125 μs; all channels active |
| Diagnostic functions | Diagnostics, diagnostic alarm and substitute values |
| Isochronous mode | Yes; execution and activation time 100 μs minimum |
| Front connector | Screw terminals or push-in terminals, ordered separately |
Applications
- Safety-oriented load-group shutdown: Supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
Key Features
- Analog outputs: 4 channels in groups of 1; voltage and current outputs with 16-bit resolution.
- Supported output ranges: Voltage: 0 to 10 V, 1 V to 5 V and -10 V to +10 V. Current: 0 to 20 mA, -20 mA to +20 mA and 4 mA to 20 mA.
- Supply voltage: Rated value: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is provided.
- Diagnostics: Diagnostics, diagnostic alarms, substitute values, supply-voltage monitoring, wire-break detection for current output and short-circuit detection for voltage output.

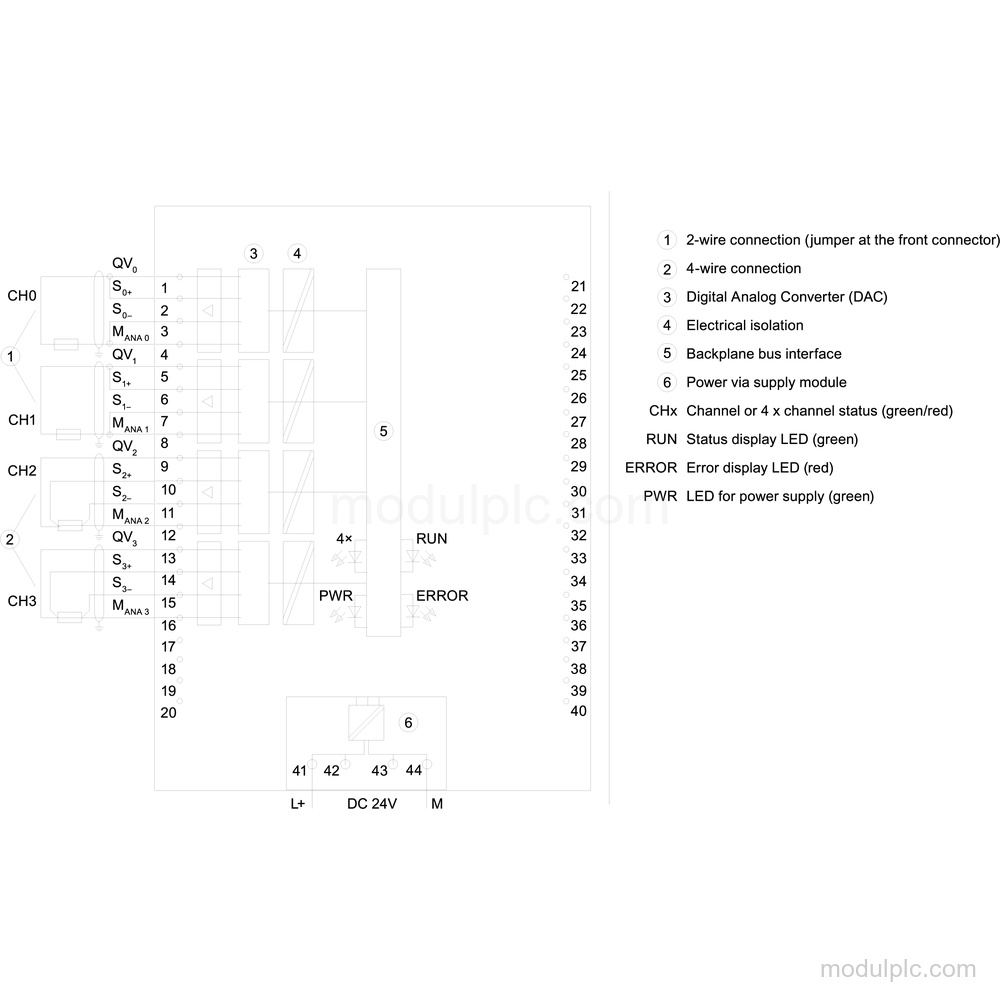

- Connection and load: Voltage output supports two-wire and four-wire connections; current output supports two-wire connections. Minimum voltage-output load impedance is 1 kΩ, or 0.5 kΩ at 1 V to 5 V.
- Delivery scope: Includes an infeed element, shielding bracket and shield terminal. The front connector with screw terminals or push-in terminals is ordered separately.
Frequently Asked Questions
1. How many analog output channels does the 6ES7532-5ND00-0AB0 have?
It has 4 analog output channels in groups of 1.
2. Which signal ranges does the module support?
Voltage ranges are 0 to 10 V, 1 V to 5 V and -10 V to +10 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA and 4 mA to 20 mA.
3. What supply voltage does it require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. What diagnostics are available?
The module has diagnostics, diagnostic alarms, substitute values, supply-voltage monitoring, wire-break detection for current output and short-circuit detection for voltage output.
5. What is included and what must be ordered separately?
The delivery includes an infeed element, shielding bracket and shield terminal. The front connector with screw terminals or push-in terminals must be ordered separately.
