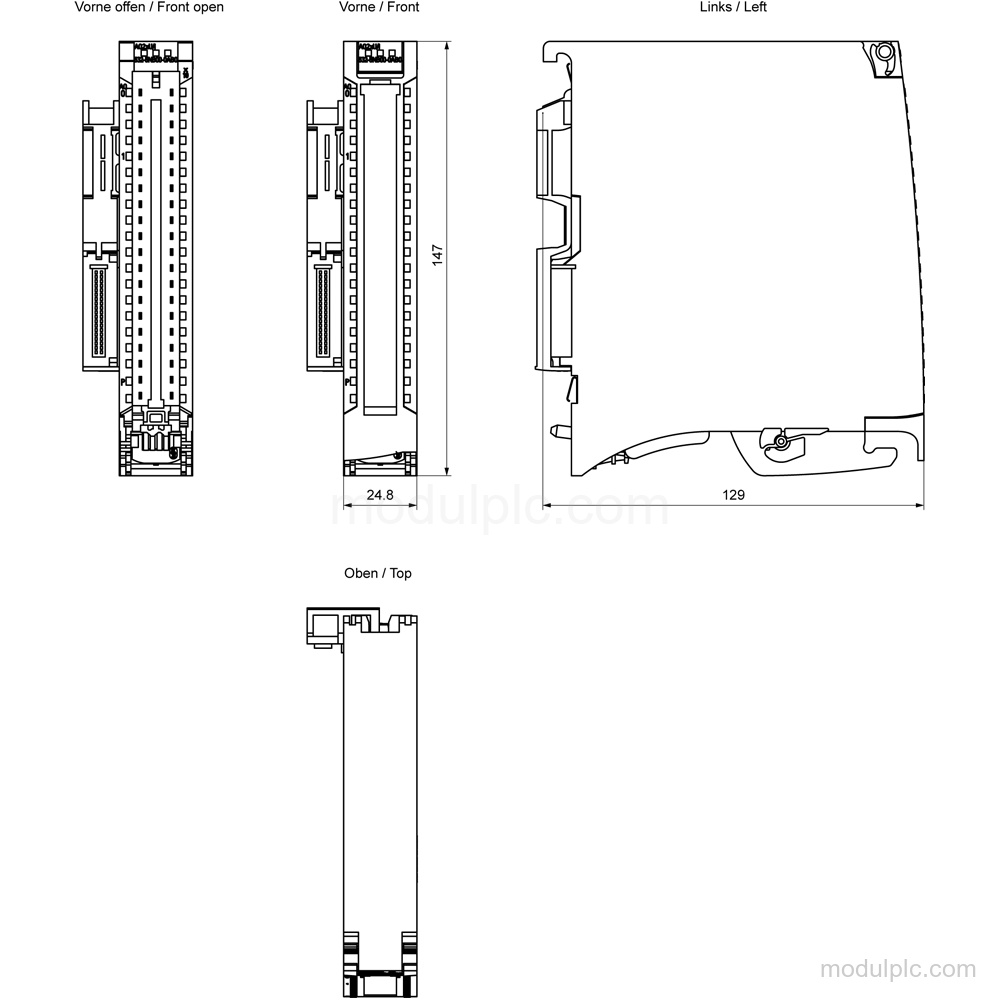

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

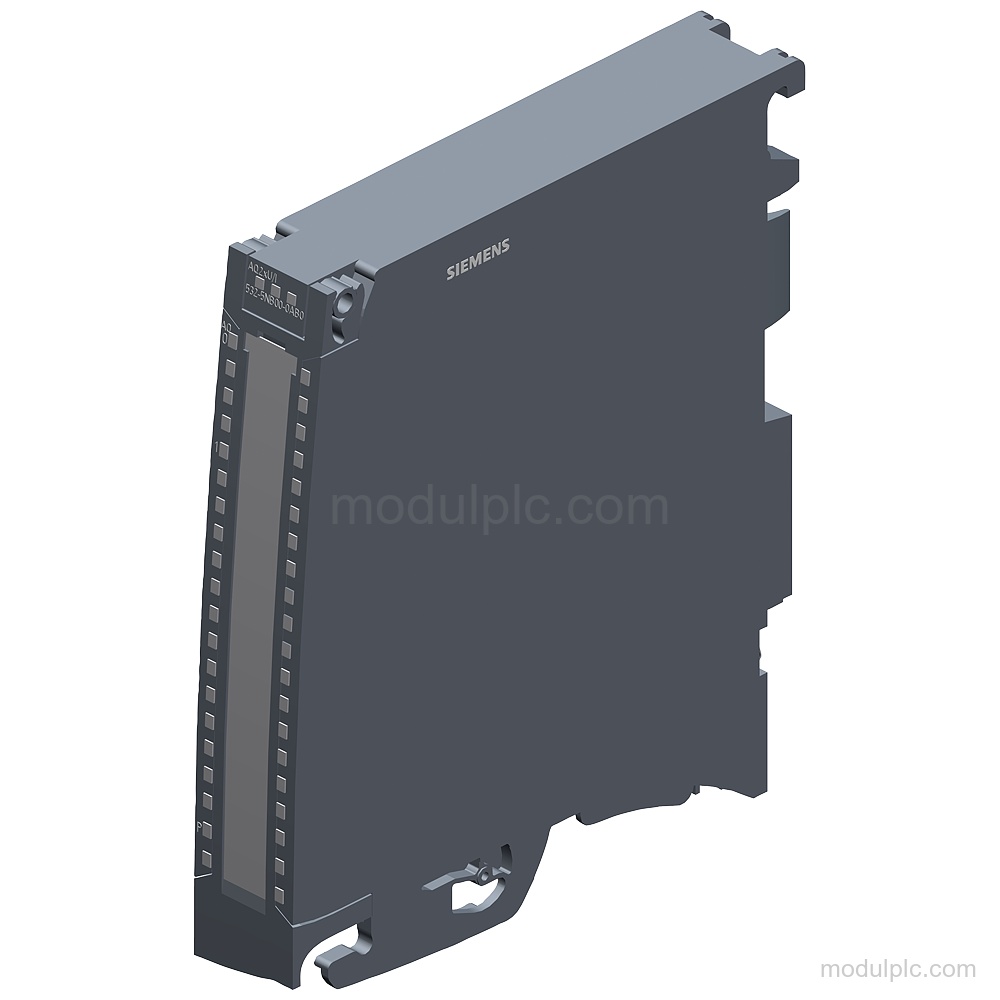

| Module type | AQ 2xU/I ST analog output module |
| Analog output channels | 2 |
| Supported output ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V; 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | Up to 16 bit |
| Accuracy | 0.3% |
| Cycle time | 3.2 ms for all channels, independent of the number of activated channels |
| Rated supply | 24 V DC |
| Supply range | 19.2 V DC to 28.8 V DC |
| Maximum current consumption | 110 mA |
| Front connection | Push-in front connector included |
Applications

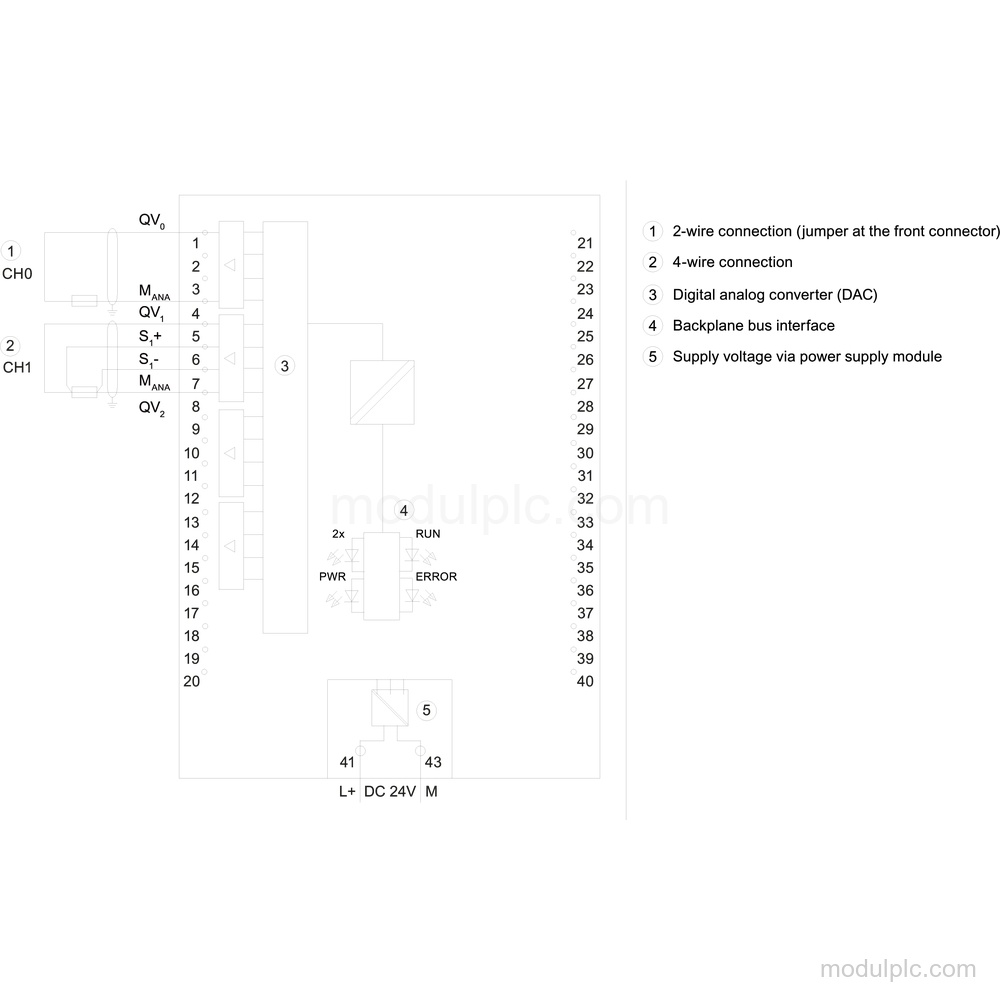

- Analog voltage and current output: The module provides analog voltage or current signals for connected actuators.
- Safety-oriented load-group shutdown: The module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
Key Features
- 2 analog output channels: The module has 2 channels in groups of 2 for voltage and current output.
- Voltage and current ranges: Supported ranges include 0 to 10 V, 1 V to 5 V, -10 V to +10 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- 16-bit resolution: Resolution with overrange is up to 16 bit, with 0.3% accuracy.
- Diagnostics and substitute values: The module has diagnostics, diagnostic alarms, supply-voltage monitoring, substitute values, and channel and module status LEDs.
- 24 V supply: Rated supply is 24 V DC, with a permissible range from 19.2 V DC to 28.8 V DC and reverse polarity protection.
- Push-in connection and safety shutdown: Delivery includes a push-in front connector, infeed element, shielding bracket, and shield terminal. The module supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
Frequently Asked Questions
1. How many analog outputs does 6ES7532-5NB00-0AB0 have?
It has 2 analog output channels in groups of 2.
2. Which signal ranges does the module support?
It supports 0 to 10 V, 1 V to 5 V, -10 V to +10 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and cycle time does it provide?
Resolution with overrange is up to 16 bit. Cycle time is 3.2 ms for all channels, independent of the number of activated channels.
4. What is included for connection?
Delivery includes a push-in front connector, infeed element, shielding bracket, and shield terminal.
