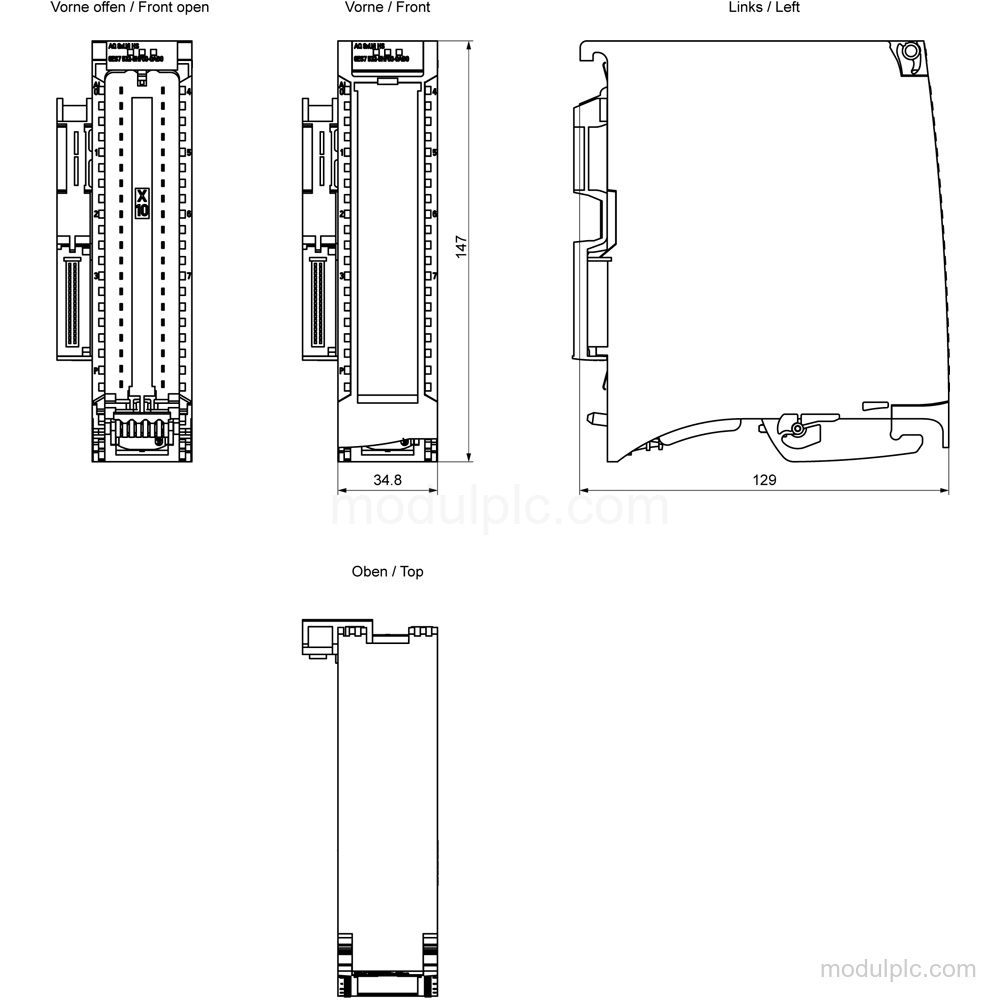

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AQ8xU/I HS analog output module |
| Analog output channels | 8 |
| Supported voltage ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V |
| Supported current ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | 16 bit |
| Operational error limit | Voltage: 0.3%; Current: 0.3% relative to output range |
| Minimum cycle time | 125 μs; independent of number of activated channels |
| Oversampling | Up to 16 values per cycle |
| Rated supply | 24 V DC |
| Front connector | Ordered separately |
Applications

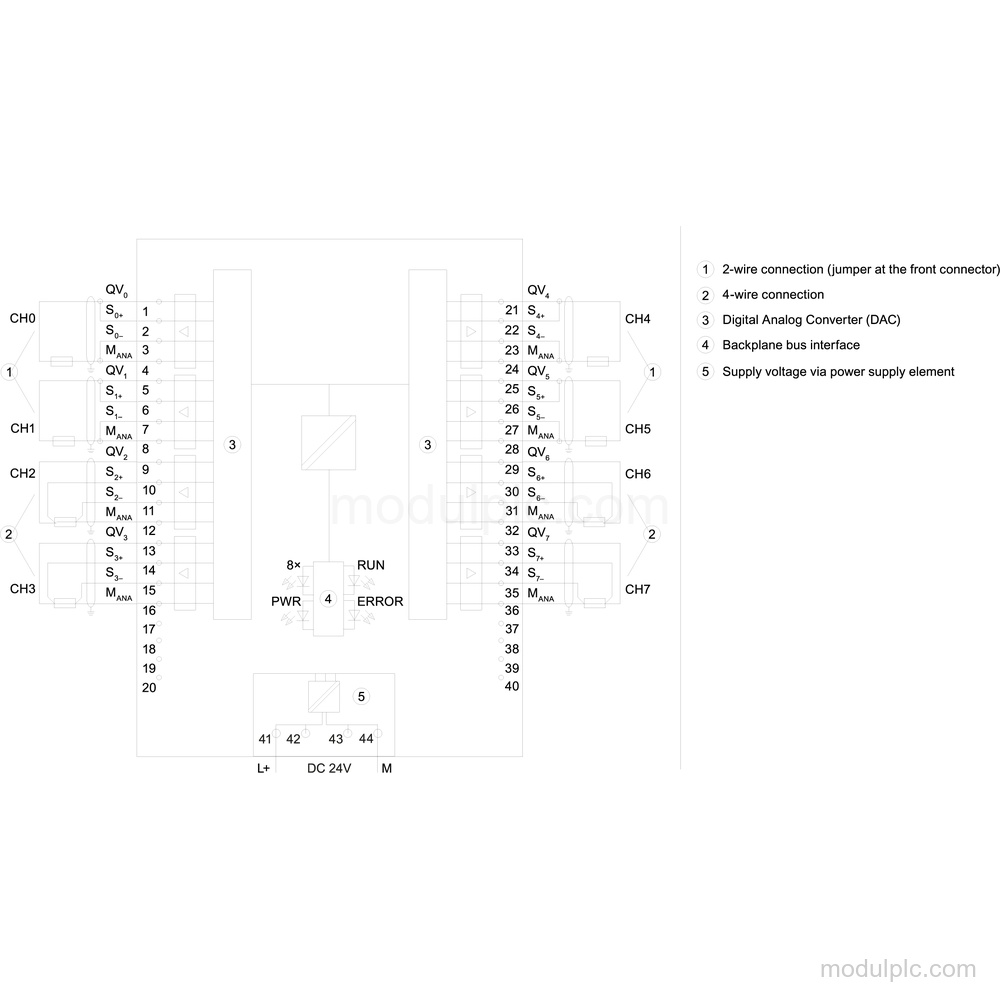

- Actuator signal output: Provides voltage or current output connections for actuators, including two-wire voltage, four-wire voltage, and two-wire current connections.
Key Features
- 8-channel analog output: AQ8xU/I HS module with 8 analog output channels.
- Voltage and current ranges: Supports 0 to 10 V, 1 V to 5 V, -10 V to +10 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA; -5 V to +5 V is not supported.
- Resolution and accuracy: Resolution is 16 bit, with 0.3% operational error limit relative to the output range for voltage and current.
- Timing and oversampling: Minimum cycle time for all channels is 125 μs, independent of the number of activated channels; oversampling supports up to 16 values per cycle.
- Diagnostics and isolation: Provides diagnostic alarms, supply-voltage monitoring, wire-break detection for current output, short-circuit detection for voltage output, and isolation between channels and the backplane bus.
- Supply and included components: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Delivery includes the infeed element, shielding bracket, and shield terminal; the front connector is ordered separately.
Frequently Asked Questions
1. How many analog outputs does the 6ES7532-5HF00-0AB0 have?
It has 8 analog output channels.
2. Which voltage and current ranges does this module support?
Voltage ranges are 0 to 10 V, 1 V to 5 V, and -10 V to +10 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and cycle time does the module provide?
Resolution is 16 bit. The minimum cycle time for all channels is 125 μs, independent of the number of activated channels.
4. What diagnostics are available?
The module has diagnostic alarms, supply-voltage monitoring, wire-break detection for current output, short-circuit detection for voltage output, and overflow/underflow detection.
5. Is the front connector included?
No. The front connector with screw terminals or push-in is ordered separately. The infeed element, shielding bracket, and shield terminal are included.
