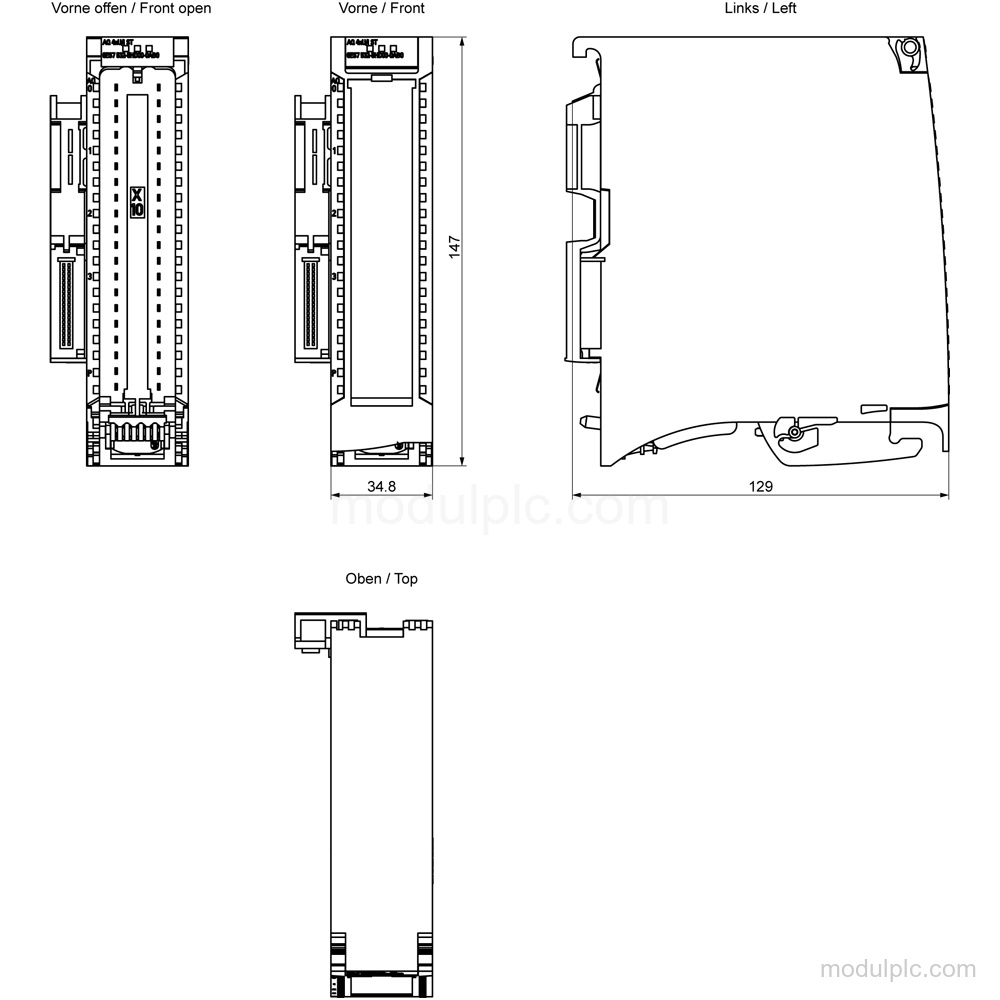

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | AQ 4xU/I ST analog output module |
| Analog output channels | 4 |
| Supported voltage ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V |
| Supported current ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution with overrange | 16 bit |
| Conversion time per channel | 0.5 ms |
| Cycle time, all channels | 3.2 ms; independent of number of activated channels |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Firmware version | V2.2.0 |
| Protection and diagnostics | Diagnostics, substitute values, supply-voltage monitoring, wire-break and short-circuit diagnosis |
Applications
- Safety-oriented load-group shutdown: Supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
Key Features
- Analog outputs: 4 analog output channels with voltage ranges of 0 to 10 V, 1 V to 5 V, and -10 V to +10 V, plus current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and timing: Resolution with overrange: 16 bit. Conversion time per channel: 0.5 ms; cycle time for all channels: 3.2 ms, independent of the number of activated channels.
- Diagnostics: Diagnostics, diagnostic alarms, substitute values, supply-voltage monitoring, overflow/underflow detection, and LED indications are supported. Wire-break diagnosis applies only to current output; short-circuit diagnosis applies only to voltage output.
- Supply and isolation: Rated supply: 24 V DC, permissible range 19.2 V to 28.8 V, with reverse polarity protection. The channels are isolated from the backplane bus and load voltage L+; the channels are not isolated from each other.

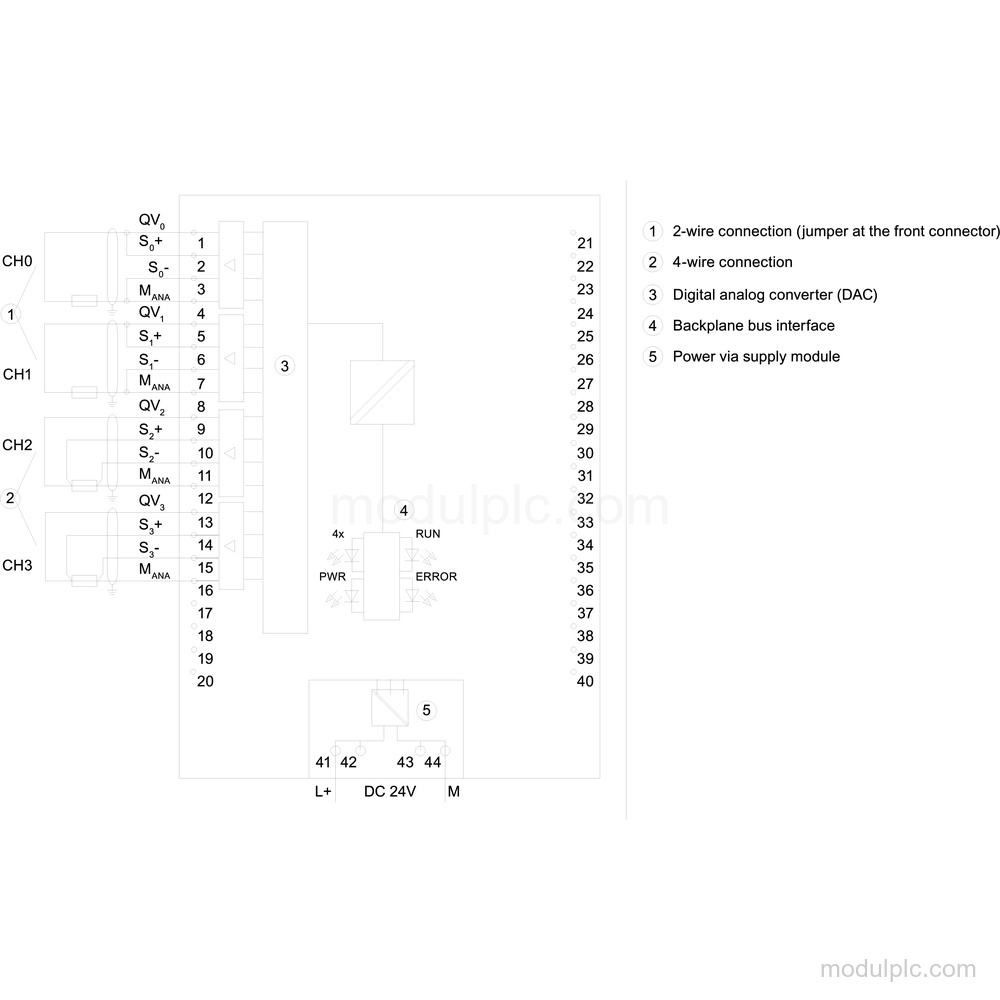

- Connections and delivery: Supports two-wire and four-wire connections for voltage output and two-wire connections for current output. Delivery includes the infeed element, shielding bracket, and shield terminal; the front connector with screw terminals or push-in is ordered separately.
Frequently Asked Questions
1. How many analog outputs does the 6ES7532-5HD00-0AB0 have?
It has 4 analog output channels.
2. Which signal ranges does the module support?
Voltage ranges are 0 to 10 V, 1 V to 5 V, and -10 V to +10 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What are the module's resolution and conversion time?
Resolution with overrange is 16 bit, and conversion time per channel is 0.5 ms.
4. Is the front connector included?
No. The front connector with screw terminals or push-in is ordered separately; the infeed element, shielding bracket, and shield terminal are included.
