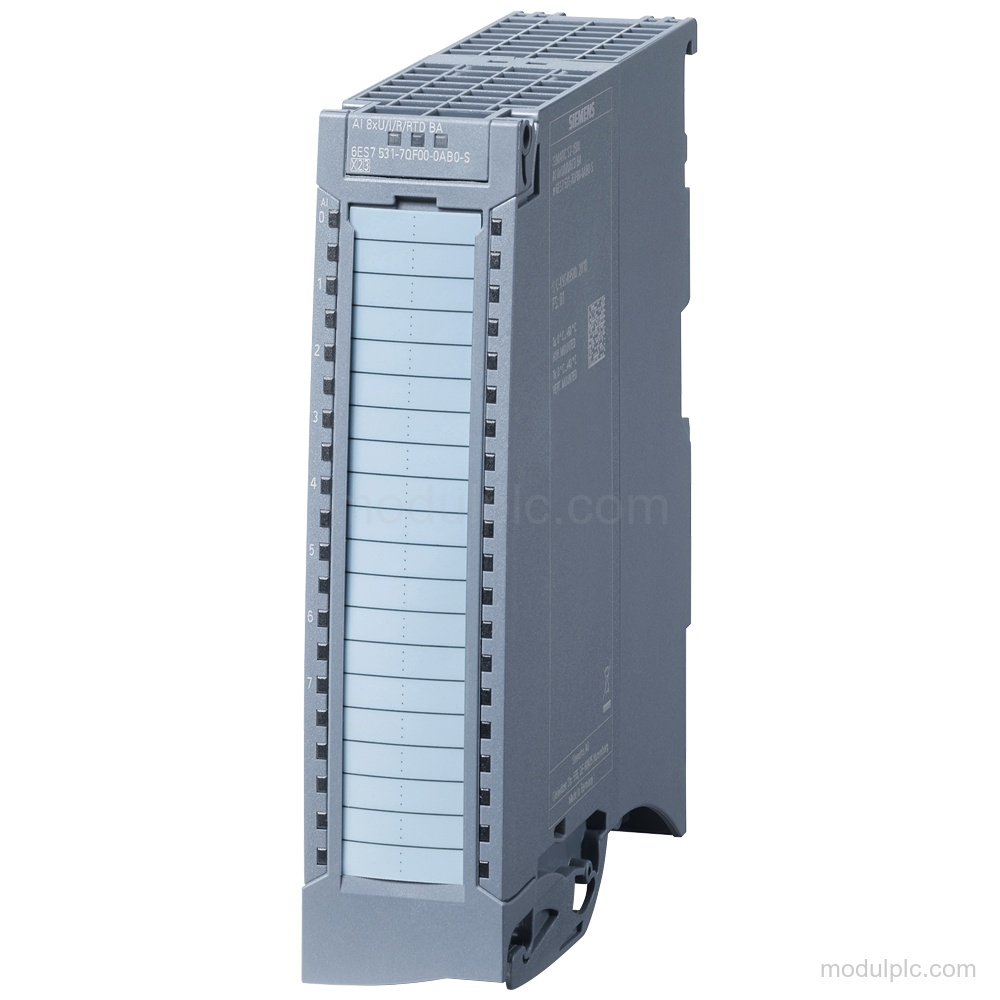

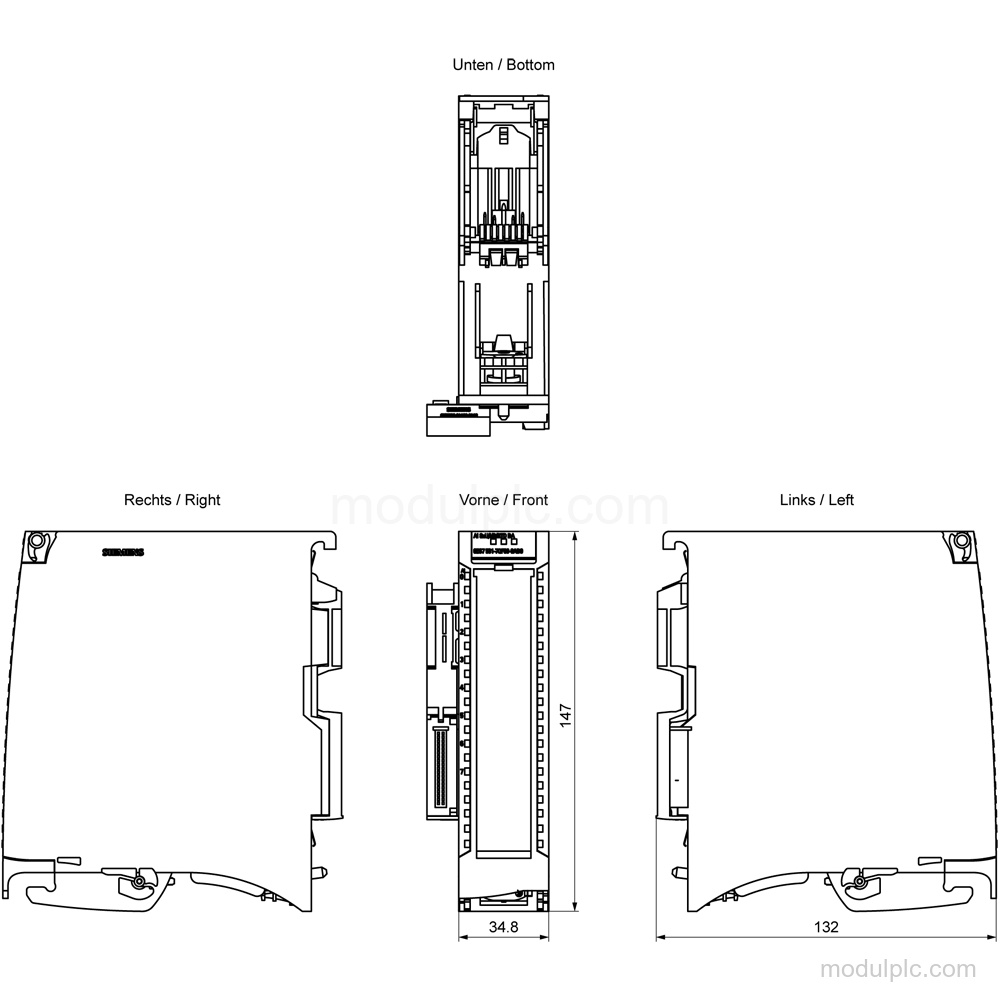

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AI 8xU/I/R/RTD BA |
| Analog input channels | 8 |
| Supported measurements | Voltage, current, resistance, and resistance thermometer |
| Resolution with overrange | 16 bit |
| Operational error limit | 0.5% relative to input range for voltage, current, and resistance |
| Power consumption from the backplane bus | 0.85 W |
| Front connector | Screw terminals or push-in; ordered separately |
| Diagnostics | Diagnostics, diagnostic alarms, limit value alarms, and hardware interrupts |
| Isolation between channels and backplane bus | Yes |
Applications
- Analog signal acquisition: The module performs voltage, current, resistance, and resistance thermometer measurement across 8 analog input channels.
Key Features
- Analog input channels: 8 channels support current, voltage, resistance, and resistance thermometer measurement.
- Signal ranges: Supported ranges include 1 V to 5 V, -1 V to +1 V, -10 V to +10 V, -5 V to +5 V, -50 mV to +50 mV, -500 mV to +500 mV, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and accuracy: Resolution with overrange is 16 bit; the operational error limit is 0.5% relative to the input range for voltage, current, and resistance.
- Diagnostics and interrupts: The module has diagnostics, diagnostic alarms, limit value alarms, hardware interrupts, wire-break diagnosis for 1 … 5 V, 4 … 20 mA, R, and RTD, and overflow/underflow detection.

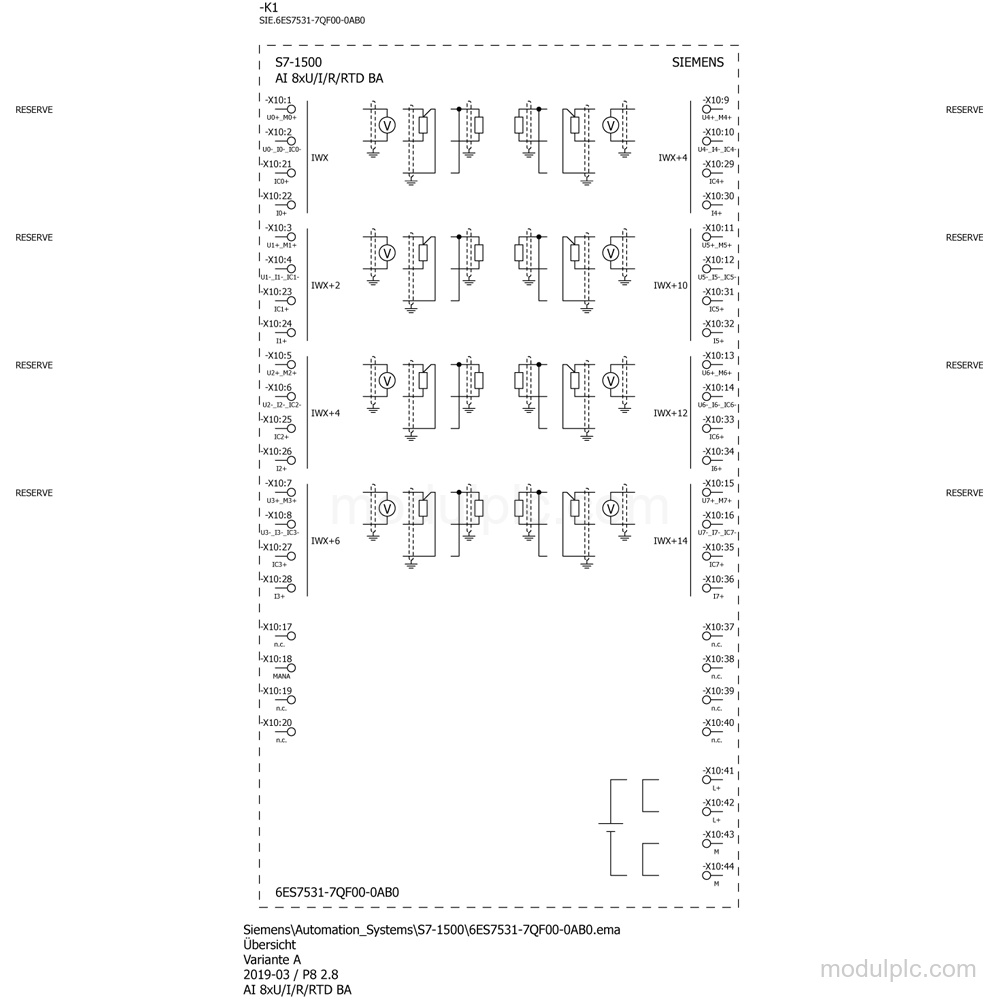

- Measurement connections: It supports voltage measurement, current measurement with 2-wire transducers with external supply and 4-wire transducers, and three-wire resistance measurement with internal cable-resistance compensation.
- Delivery and connector: Delivery includes the infeed element, shield bracket, and shield terminal. The front connector with screw terminals or push-in connection is ordered separately.
Frequently Asked Questions
1. How many analog inputs does 6ES7531-7QF00-0AB0 have?
It has 8 analog input channels.
2. Which signal types does 6ES7531-7QF00-0AB0 measure?
It measures voltage, current, resistance, and resistance thermometer signals.
3. What resolution and accuracy does the module provide?
Resolution with overrange is 16 bit. The operational error limit is 0.5% relative to the input range for voltage, current, and resistance.
4. Is the front connector included?
It is without the front connector. A front connector with screw terminals or push-in connection is ordered separately.
