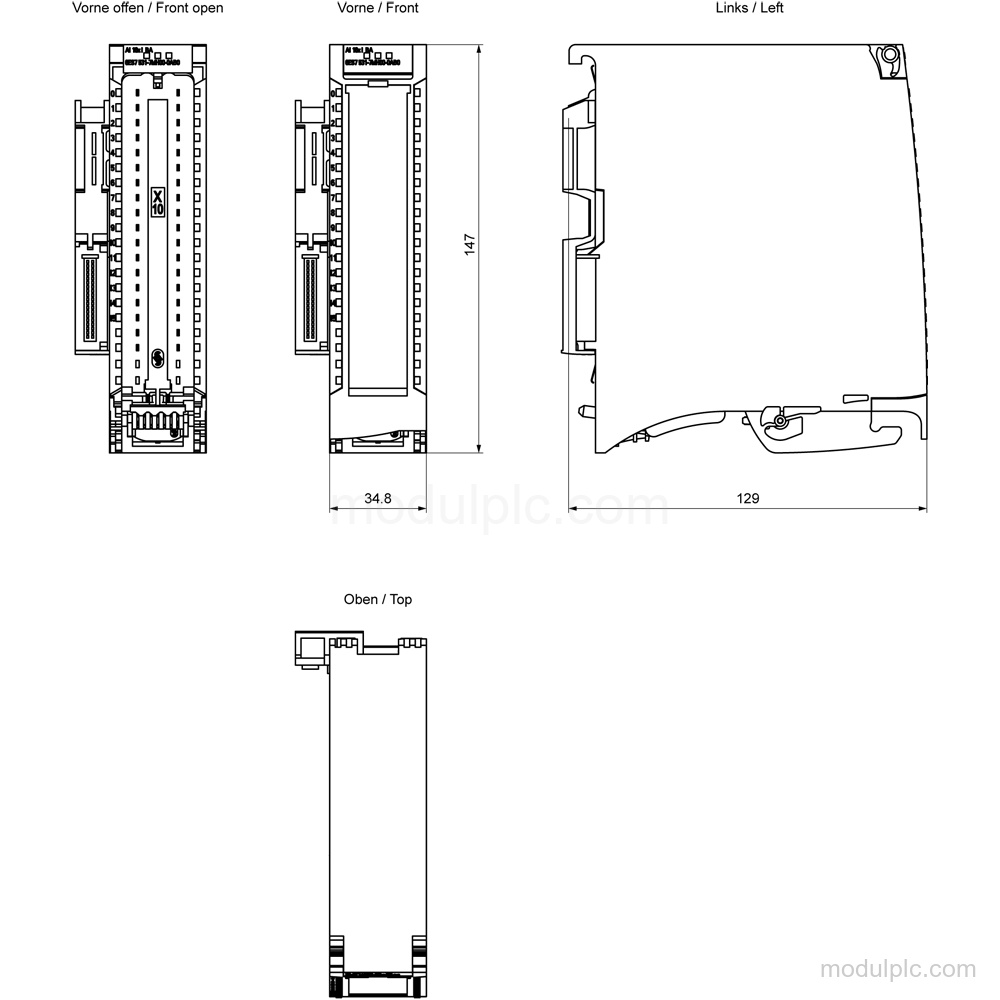

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 16 |
| Supported current ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution with overrange | 16 bit |
| Input resistance | 25 Ω; plus approx. 42 ohms for overvoltage protection by PTC |
| Integration time | 2,5 / 16,67 / 20 / 100 ms |
| Power consumption from the backplane bus | 0.85 W |
| Front connector | Screw terminals or push-in; ordered separately |
Applications

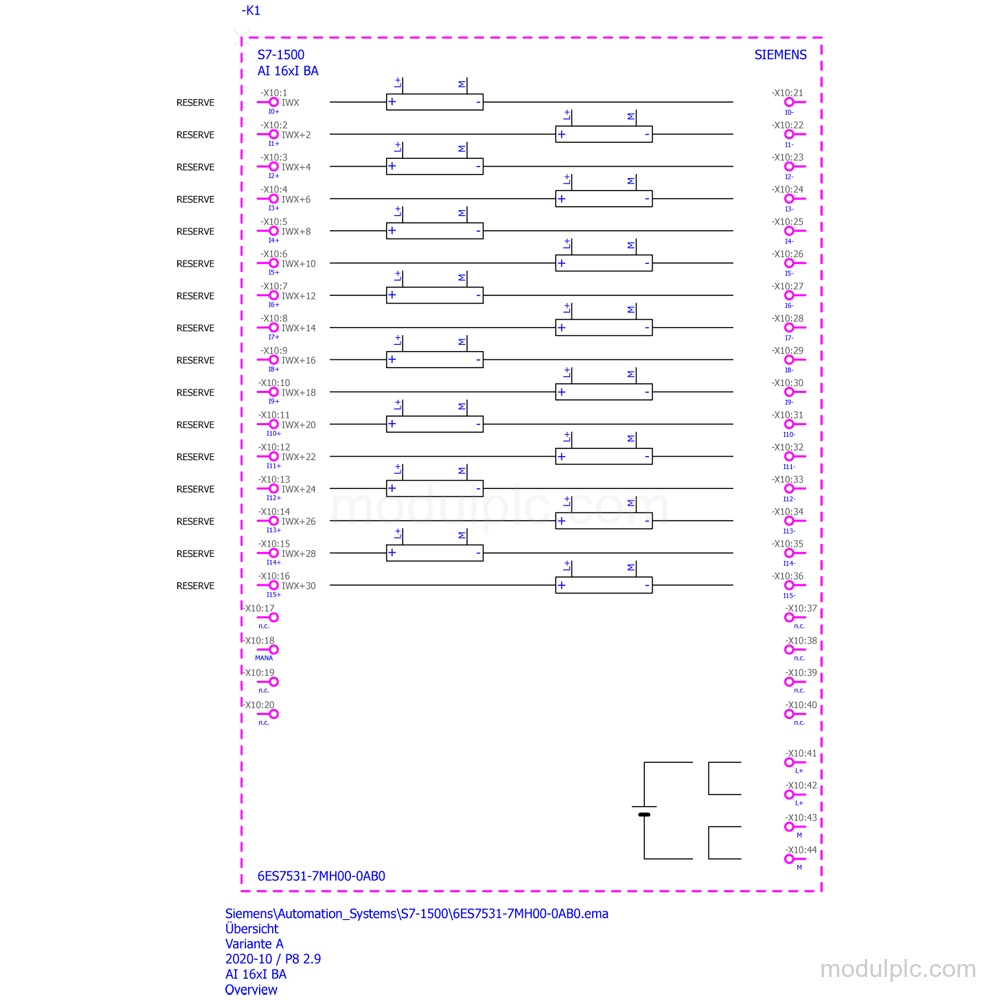

- Current measurement: The module supports current measurement with 2-wire transducers using an external supply and with 4-wire transducers.
- Input diagnostics: The module provides diagnostic alarms, limit value alarms, wire-break detection for 4 … 20 mA, and channel and module diagnostic indications.
Key Features
- Analog current inputs: 16 analog inputs support current measurement in 16 channels.
- Supported input ranges: Rated current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and conversion: Resolution with overrange is 16 bit; parameterizable integration times are 2,5 / 16,67 / 20 / 100 ms.
- Diagnostics and alarms: The module has diagnostics, diagnostic alarms, limit value alarms, wire-break detection for 4 … 20 mA, and overflow/underflow detection.
- Installation and connection: Delivery includes the infeed element, shield bracket, and shield terminal. The front connector with screw terminals or push-in must be ordered separately; shielded cable length is max. 800 m.
- Electrical separation: Isolation is tested with 707 V DC (type test). The permissible potential difference is 8 V DC between inputs and 4 V DC between inputs and MANA.
Frequently Asked Questions
1. How many analog current inputs does 6ES7531-7MH00-0AB0 have?
It has 16 analog inputs, all for current measurement.
2. Which current ranges does the AI 16xI BA support?
It supports 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and integration times are available?
Resolution with overrange is 16 bit. Parameterizable integration times are 2,5 / 16,67 / 20 / 100 ms.
4. What is included and what must be ordered separately?
Delivery includes the infeed element, shield bracket, and shield terminal. The front connector with screw terminals or push-in is ordered separately.
