Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 32 |
| Digital outputs | 32 transistor outputs |
| Input rated voltage | 24 V DC |
| Output current per channel | 0.3 A |
| Output current per group | 2 A; at 60 °C |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Input signal 0 | -5 … +5 V |
| Input signal 1 | -11 … -30 V; +11 … +30 V |
| Input delay | 3 ms to 4 ms |
Applications
- Digital signal input and output: Provides digital inputs and transistor outputs for signal acquisition and output control.
- Digital input control: The outputs can control a digital input.
Key Features

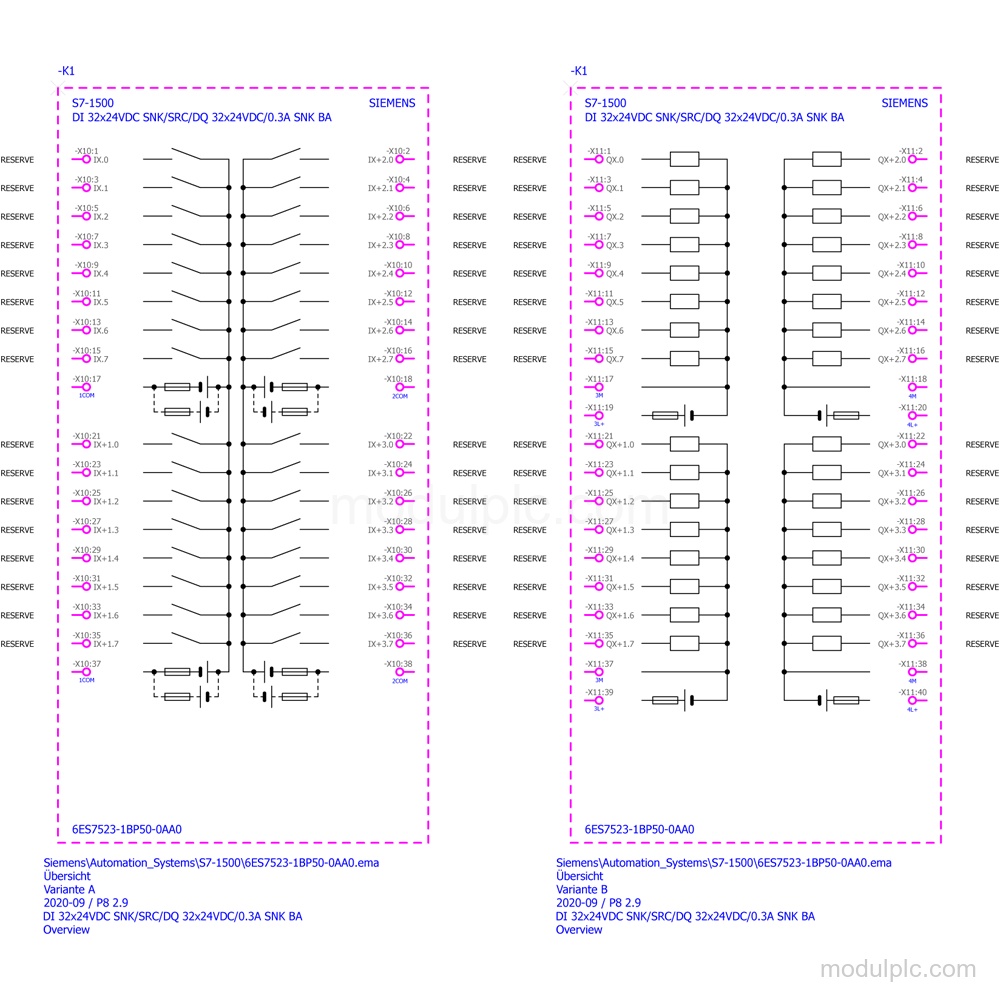

- Digital inputs and outputs: 32 digital inputs and 32 transistor outputs; inputs support sinking/sourcing operation.
- 24 V DC signals: Input rated voltage is 24 V DC; signal 0 is -5 … +5 V and signal 1 is -11 … -30 V or +11 … +30 V.
- Output capacity: Output current is 0.3 A per channel and 2 A per group at 60 °C; channels are arranged in groups of 16.
- Supply voltage: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
- Cable length: Maximum cable length is 1 000 m for shielded cables and 600 m for unshielded cables.

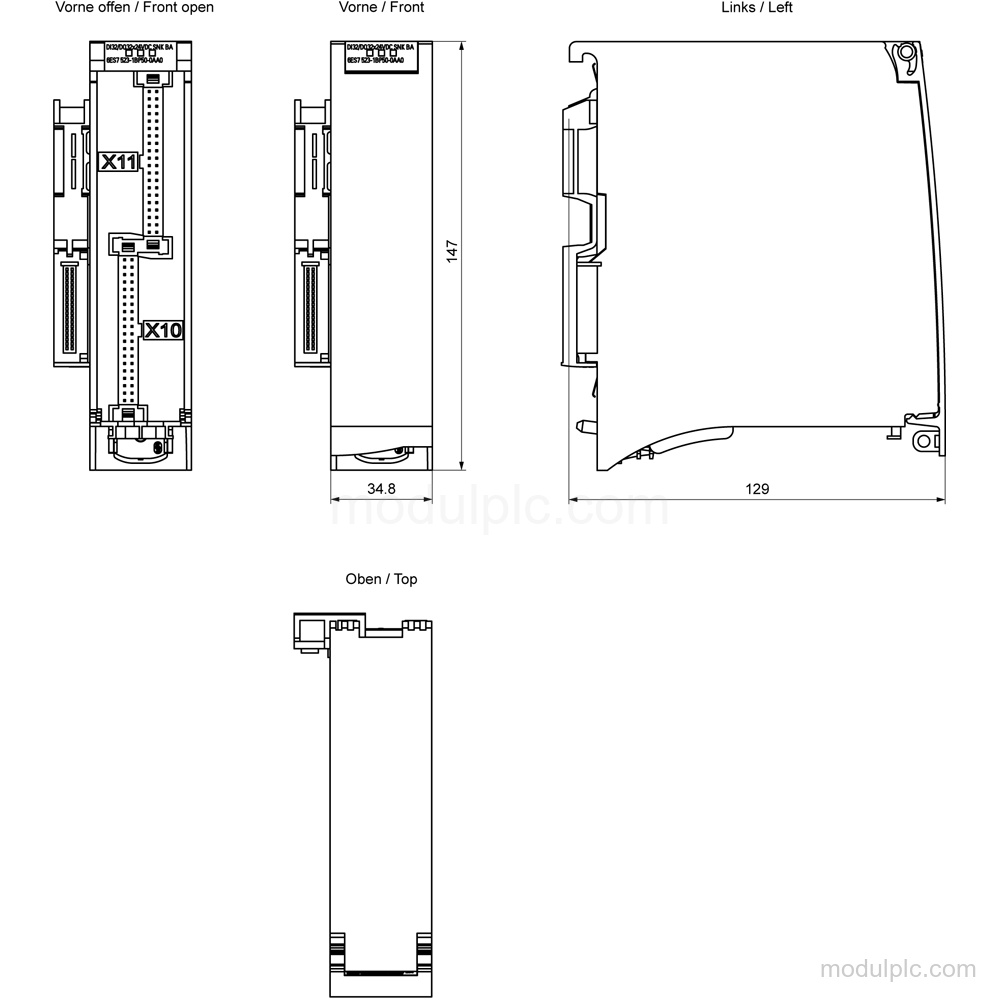

- Connection and dimensions: The module is 35 mm wide; cables and terminal blocks are ordered separately as accessories.
Frequently Asked Questions
1. How many digital channels does 6ES7523-1BP50-0AA0 have?
It has 32 digital inputs and 32 transistor outputs, arranged in groups of 16.
2. What signal voltage does the module use?
The input rated voltage is 24 V DC. Signal 0 is -5 … +5 V, while signal 1 is -11 … -30 V or +11 … +30 V.
3. What output current is available?
The output current is 0.3 A per channel, 2 A per group at 60 °C, and 4 A per module.
4. What is included with the module connection?
Cables and terminal blocks are not included; they must be ordered separately as accessories.
