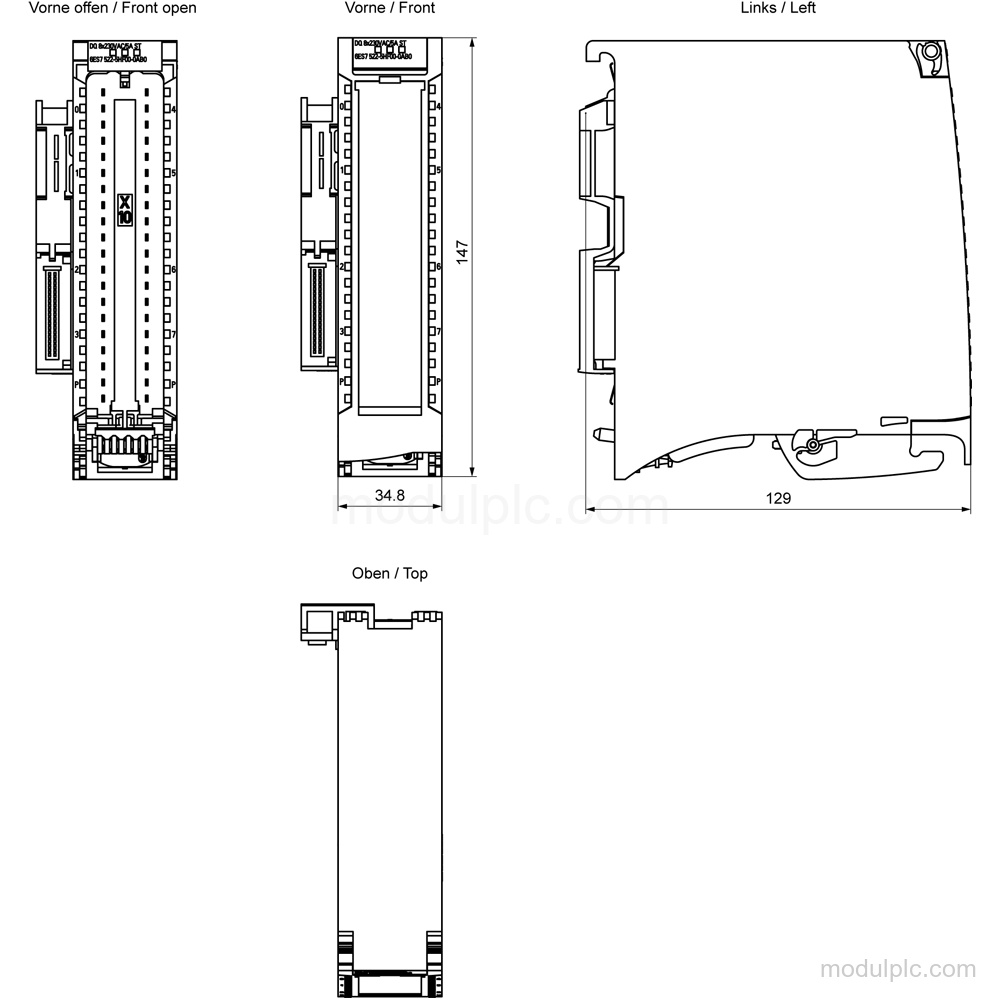

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | DQ 8×230 V AC/5 A ST (relay) |
| Digital outputs | 8 |
| Output type | Relays |
| Channel grouping | 8 channels in groups of 1; 5 A per group |
| Rated output voltage | 230 V AC |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V DC to 28.8 V DC |
| Maximum current consumption | 80 mA |
| Diagnostics | Yes; diagnostic alarm and connectable substitute values |
| Front connector | Screw terminals or push-in terminals; ordered separately |
Applications
- Load-group safety shutdown: Supports the safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
- Digital input control: Supports controlling a digital input.
- Redundant load control: Supports parallel switching of two outputs for redundant control of a load.
- Logic-link switching: Supports parallel switching of two outputs for logic links.

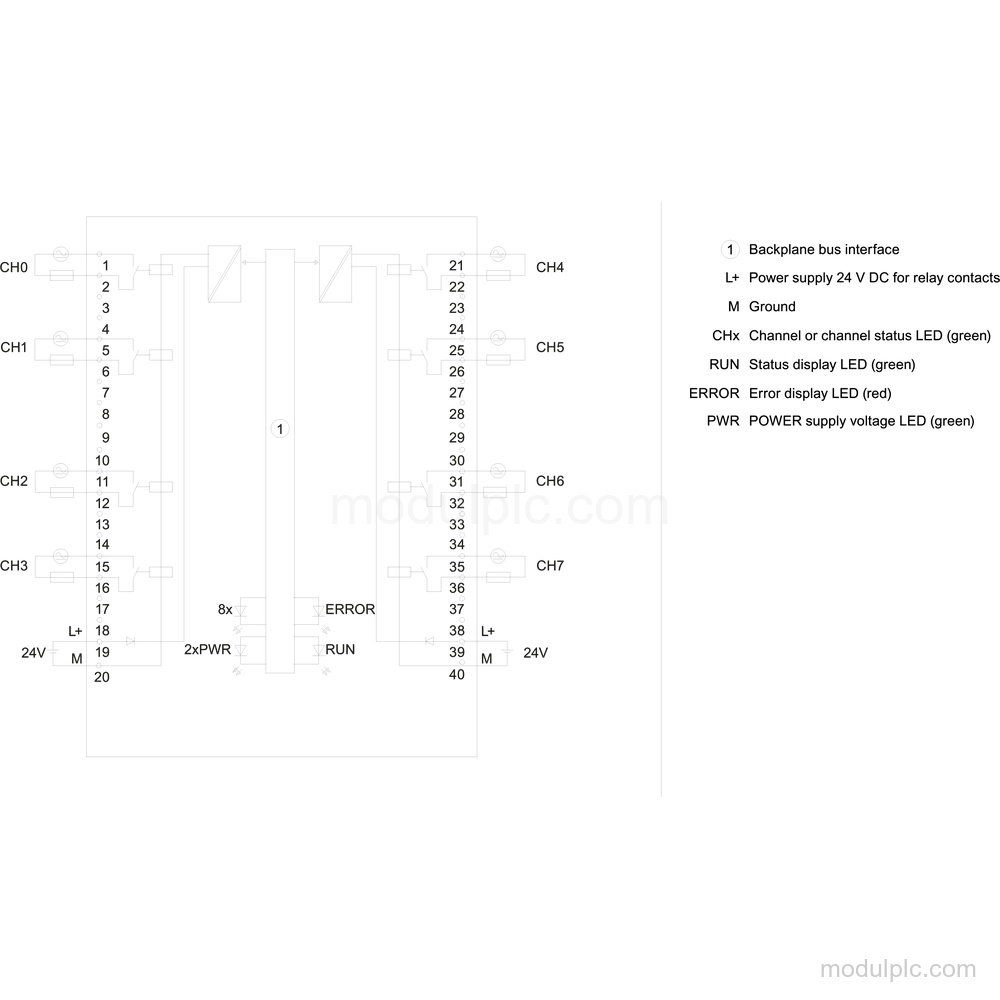

Key Features
- Digital relay outputs: The module has 8 parameterizable digital relay outputs, with current-sinking and current-sourcing operation.
- Output rating: Rated output voltage is 230 V AC; the specified output voltage also includes 24 V DC to 120 V DC / 24 V AC to 230 V AC.
- Channel grouping: The 8 channels are arranged in groups of 1, with 5 A per group.
- Supply and consumption: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC; maximum current consumption is 80 mA.
- Diagnostics and substitute values: The module has diagnostics, diagnostic alarms, connectable substitute values, supply-voltage monitoring, and RUN, ERROR, MAINT, PWR, and channel-status LEDs.
- Front connection: The front connector is ordered separately and is available with screw terminals or push-in terminals.
Frequently Asked Questions
1. How many relay outputs does 6ES7522-5HF00-0AB0 have?
It has 8 digital relay outputs arranged in groups of 1.
2. What output voltage and current are specified?
The rated output voltage is 230 V AC. The output current for signal "1" has a rated value of 5 A, with a permissible minimum of 5 mA; 10 V and a permissible maximum of 8 A thermal continuous current.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC.
4. What diagnostics are available?
Diagnostics, diagnostic alarms, connectable substitute values, and supply-voltage monitoring are available. The module also has RUN, ERROR, MAINT, PWR, and channel-status LEDs.
5. Is the front connector included?
It is without a front connector; the connector must be ordered separately with screw terminals or push-in terminals.
