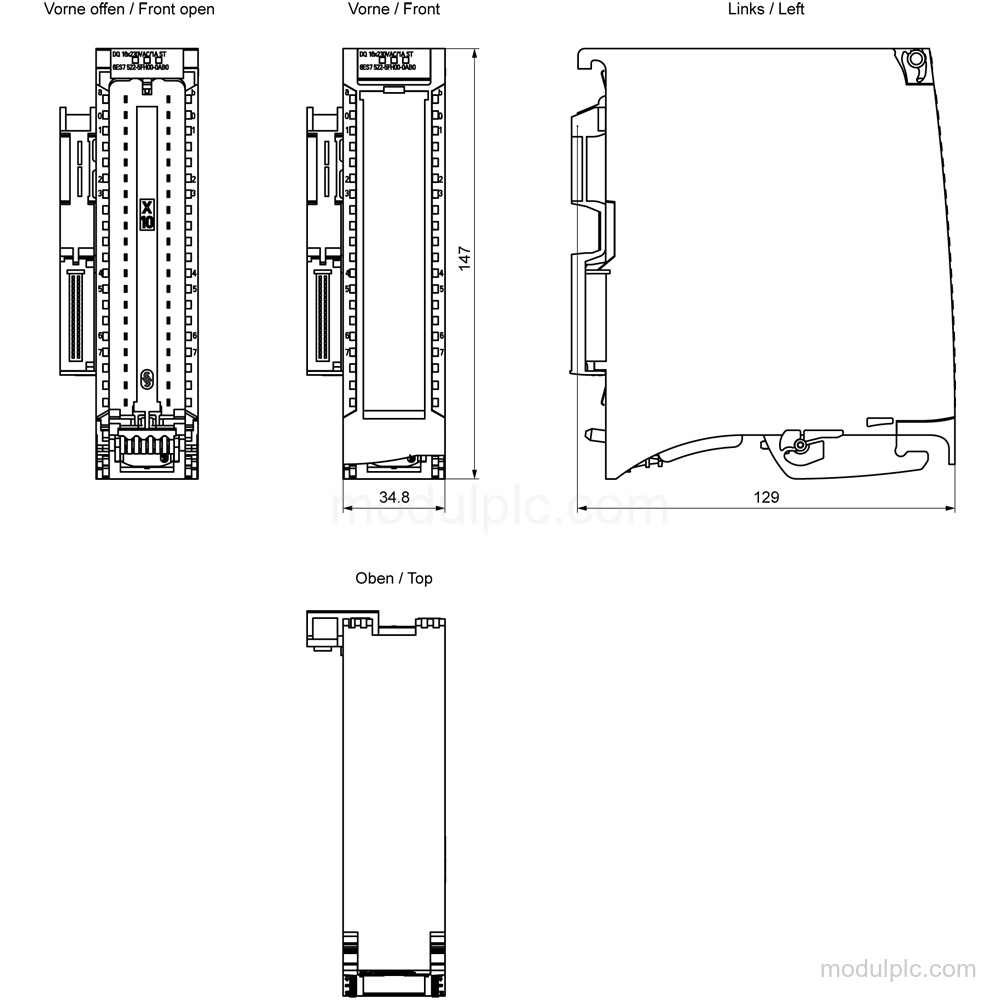

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | DQ 16×230 V AC/1 A ST (Triac) |
| Digital output channels | 16 |
| Output technology | Triac |
| Rated output voltage | 230 V AC; 120/230 V AC, 50/60 Hz |
| Rated current per channel | 1 A |
| Maximum current per group | 2 A; see additional description in the manual |
| Maximum current per module | 10 A; see additional description in the manual |
| Maximum resistive-load switching frequency | 10 Hz |
| Front connector | Screw terminals or push-in; ordered separately |
| Isolation tested with | 3 100 V DC |
Applications
- Digital output switching: The module provides Triac digital output control for connected loads.
- Redundant load control: Two outputs can be switched in parallel for redundant control of a load.
- Substitute-value output: Substitute values can be connected at the outputs.
Key Features
- Triac digital outputs: The module has 16 parameterizable Triac digital outputs.
- Output voltage and current: Rated output voltage is 230 V AC at 50/60 Hz. Rated output current is 1 A per channel.

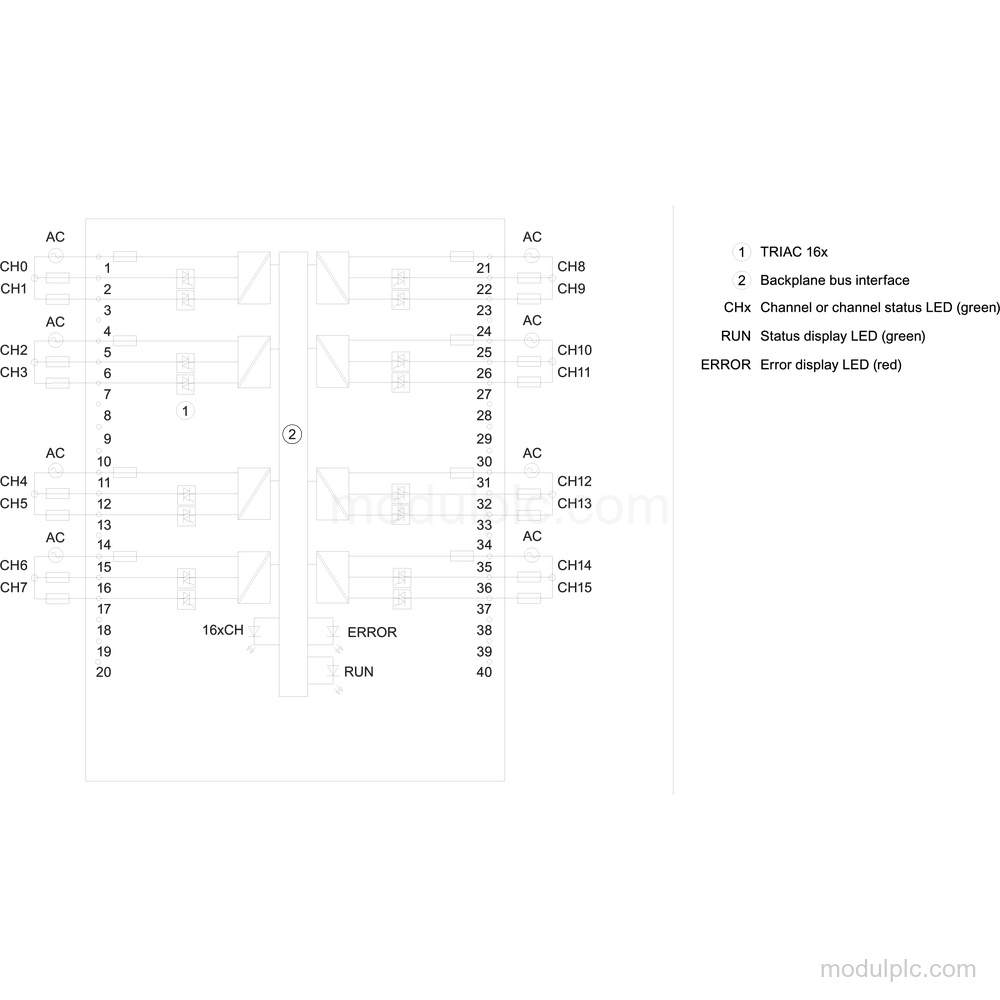

- Grouped channels: The 16 channels are arranged in groups of 2. Maximum current is 2 A per group and 10 A per module.
- Load switching capacity: Maximum switching capacity is 1 A with resistive load and 50 W with lamp load.
- Connection options: The front connector is not included and must be ordered separately; screw-terminal or push-in versions are available.
- Potential separation: The channels are not electrically separated from each other, but are separated from the backplane bus. Tested isolation is 3 100 V DC.
Frequently Asked Questions
1. What type of outputs does Siemens 6ES7522-5FH00-0AB0 have?
It has 16 parameterizable Triac digital outputs.
2. What output voltage and current does the module support?
The rated output voltage is 230 V AC at 50/60 Hz, with 1 A rated current per channel.
3. How are the channels grouped?
The 16 channels are arranged in groups of 2. Maximum current is 2 A per group.
4. Is the front connector included?
It is without a front connector. A screw-terminal or push-in front connector must be ordered separately.
