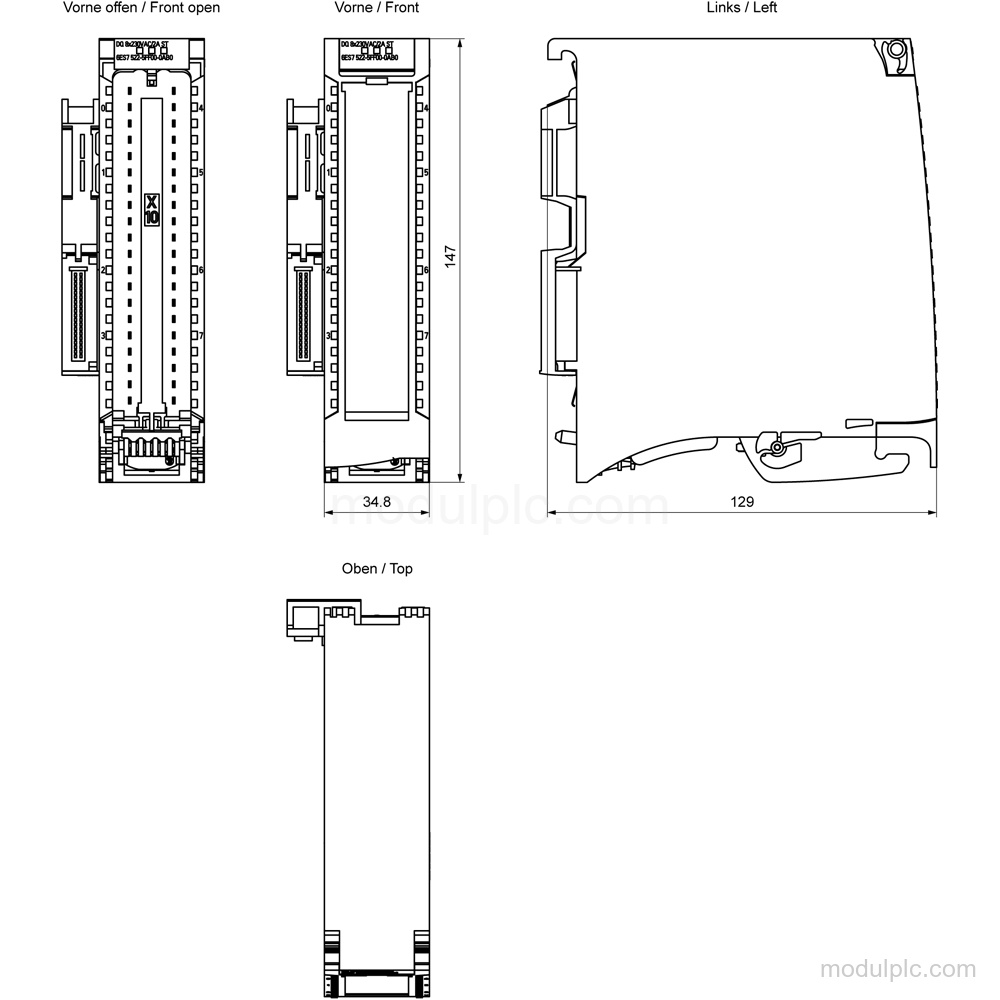

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Triac |
| Number of digital outputs | 8 |
| Output voltage | 230 V; 120/230 V AC, 50/60 Hz |
| Rated output current, signal "1" | 2 A |
| Maximum current per group | 2 A |
| Maximum current per module | 10 A; see additional description in the manual |
| Maximum switching frequency, resistive load | 10 Hz |
| Front connector | Screw terminals or push-in; ordered separately |
| Firmware version | V2.3.0 |
| Potential separation | Between channels, backplane bus, and load voltage L1 |
| Built-in fuse | 6.3 A melting fuse, slow-blow |
Applications
- Load output control: Controls AC loads through the 8 Triac digital outputs, including redundant control of a load by two outputs.
Key Features

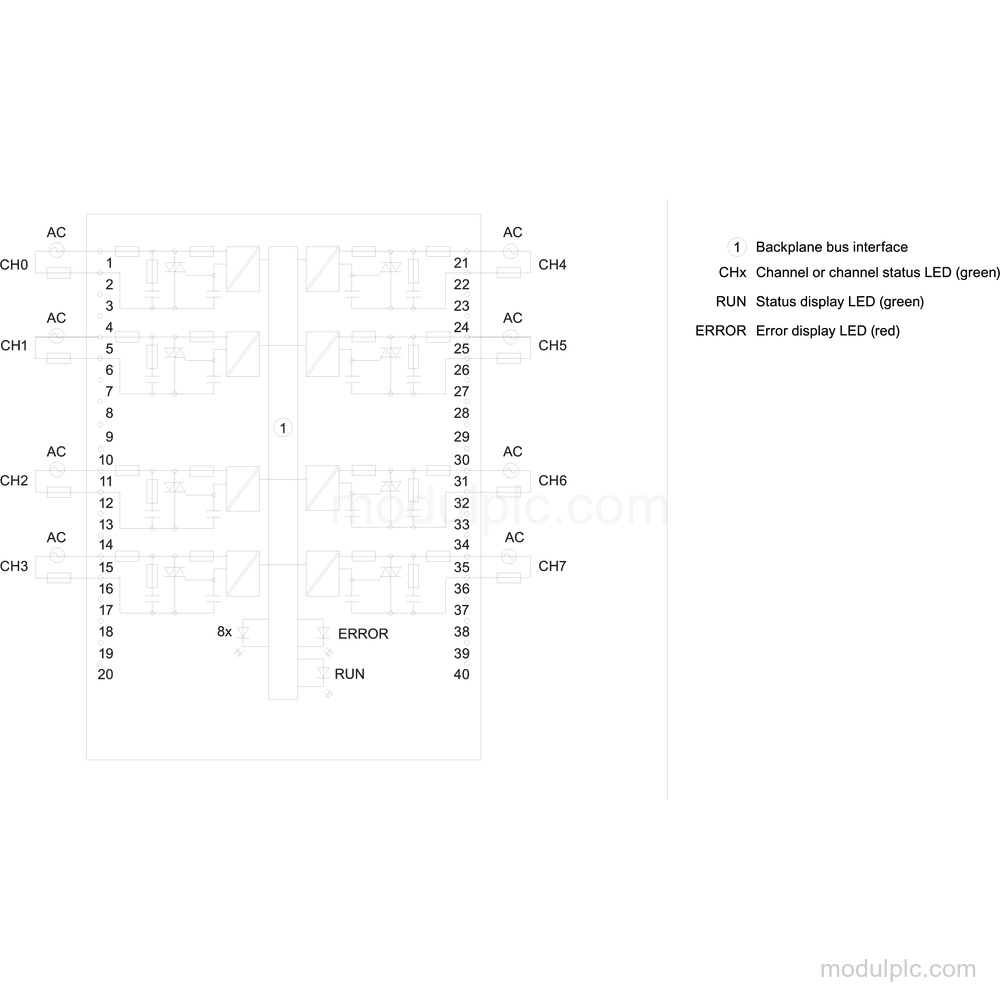

- Digital output channels: 8 current-sourcing, parameterizable Triac outputs in groups of 1.
- Output voltage and current: Rated output voltage: 230 V; 120/230 V AC, 50/60 Hz. Signal "1" rated output current: 2 A.
- Switching capacity: Maximum switching capacity is 2 A with a resistive load and 50 W on a lamp load.
- Connection and protection: Front connector with screw terminals or push-in must be ordered separately. Built-in fuse: 6.3 A melting fuse, slow-blow; short-circuit protection: No.
- Isolation and status indication: Potential separation exists between channels, the backplane bus, and load voltage L1. RUN, ERROR, MAINT, channel status, and module diagnostic LEDs are provided.
- Firmware and operating functions: Firmware version V2.3.0; FW update possible. MSO, prioritized startup, I&M0 to I&M3, substitute values, and an integrated operating cycle counter are supported.
Frequently Asked Questions
1. What output type and channel count does Siemens 6ES7522-5FF00-0AB0 have?
It has 8 current-sourcing, parameterizable Triac digital outputs in groups of 1.
2. What output voltage and current does the module support?
The rated output voltage is 230 V; 120/230 V AC, 50/60 Hz. The signal "1" rated output current is 2 A, with 2 A maximum per group.
3. Is the front connector included?
It is without the front connector; a connector with screw terminals or push-in must be ordered separately.
4. What protection and diagnostics are available?
Short-circuit protection and diagnostic functions are not provided. The module has a 6.3 A melting fuse, slow-blow, plus RUN, ERROR, MAINT, channel status, and module diagnostic LEDs.
