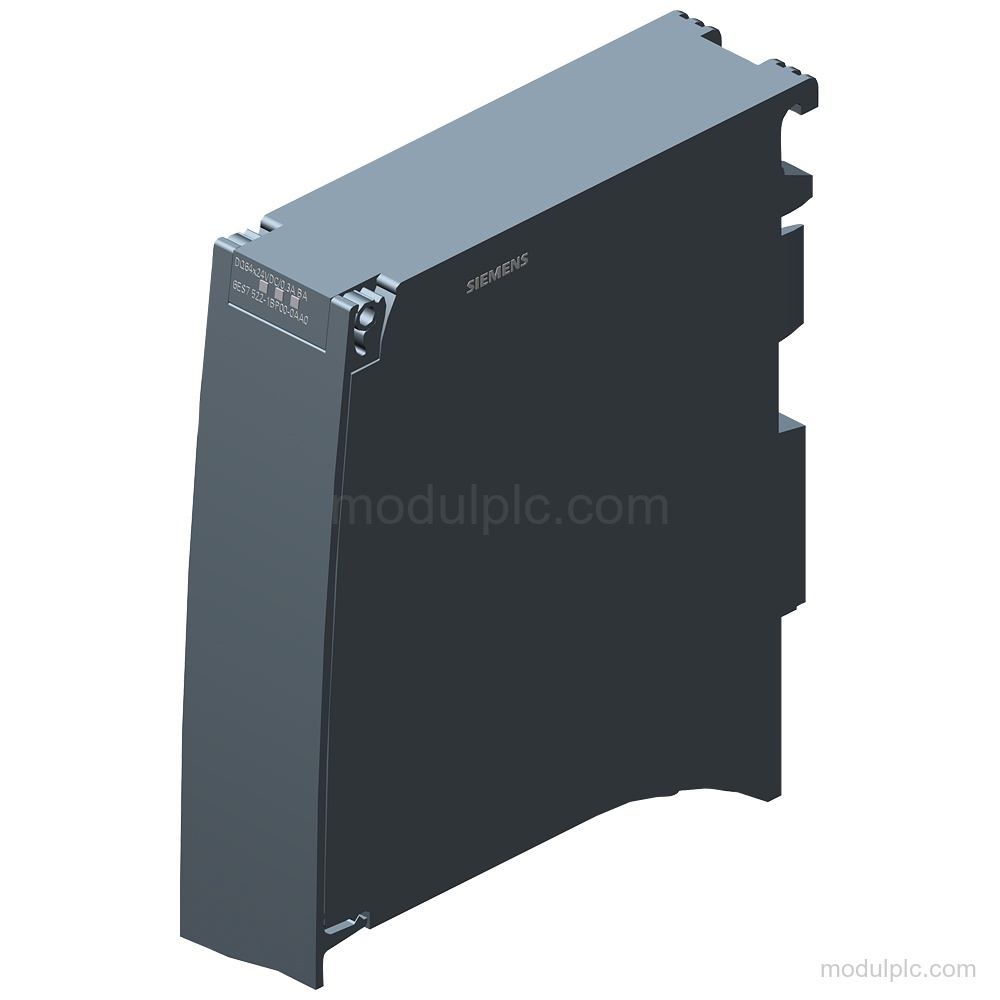

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | DQ 64x24VDC/0.3A BA |
| Digital outputs | 64 transistor outputs |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Current per channel, max. | 0.3 A |
| Current per module, max. | 8 A |
| Output address space | 8 byte |
| Power consumption from backplane bus | 0.6 W |
| Output delay, 0 to 1, max. | 100 μs |
| Output delay, 1 to 0, max. | 500 μs |
| Isolation tested with | 707 V DC (type test) |
Applications
- Load-group shutdown: Supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
- Digital output control: Controls digital outputs and can control a digital input.
Key Features

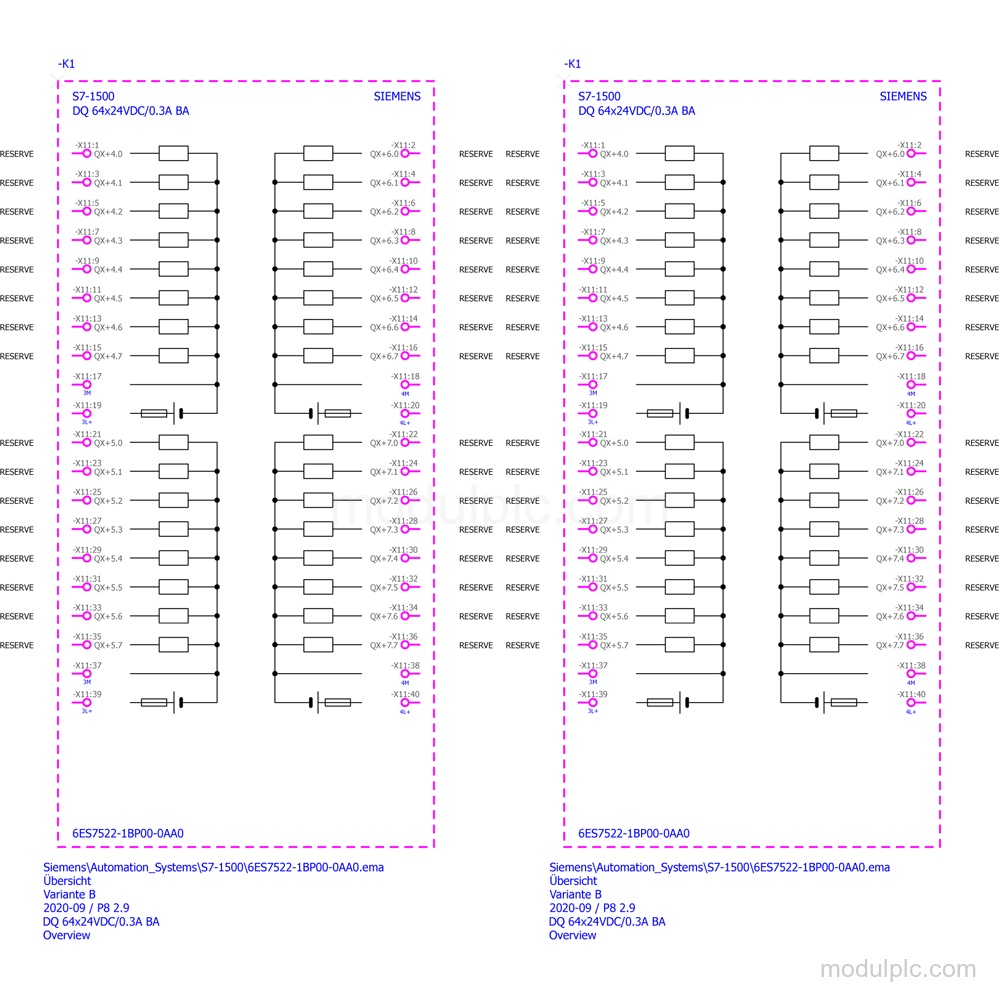

- Digital outputs: The module has 64 transistor digital outputs with a 0.3 A rated and maximum current per channel.
- Supply voltage: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
- Output switching: Maximum switching capacity is 0.3 A with a resistive load and 5 W with a lamp load.
- Safety-oriented shutdown: The module supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.

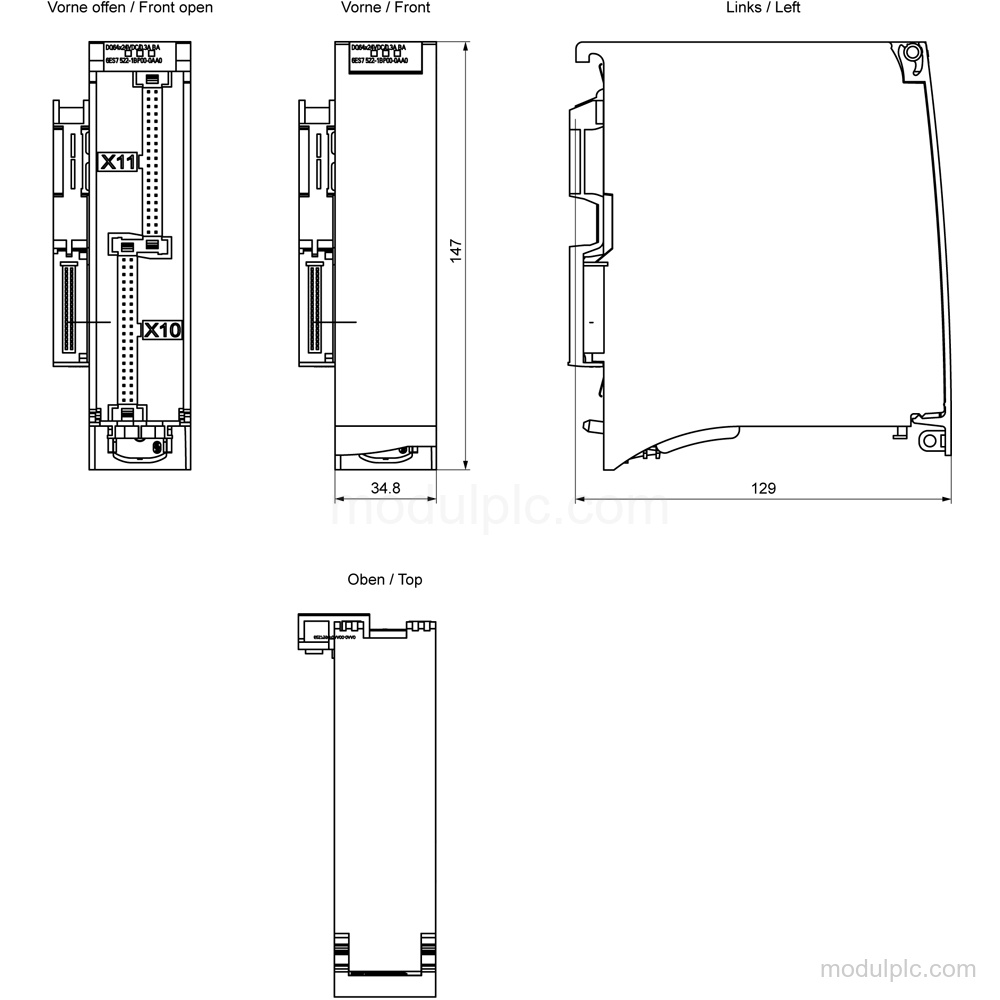

- Connections and width: The module is 35 mm wide. Cables and terminal blocks must be ordered separately as accessories.
Frequently Asked Questions
1. What type of outputs does 6ES7522-1BP00-0AA0 have?
It has 64 transistor digital outputs with a 0.3 A rated and maximum current per channel.
2. What supply voltage does this module require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
3. Does the module provide diagnostic functions?
It has no diagnostics function, diagnostic alarm, maintenance interrupt, supply-voltage monitoring, wire-break diagnosis, short-circuit diagnosis, or group-error diagnosis.
4. Are cables and terminal blocks included?
The module is without cables and terminal blocks; they must be ordered separately as accessories.
