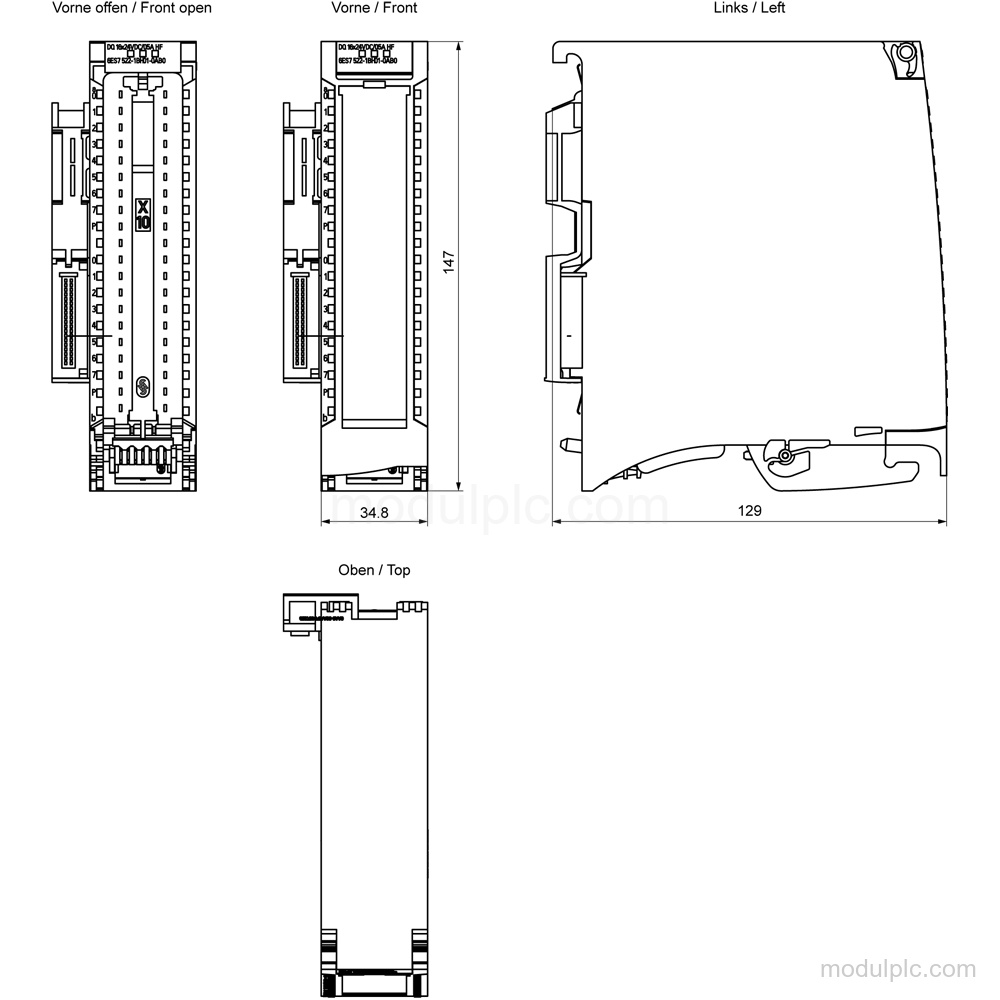

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | DQ 16x24VDC/0.5A HF |
| Digital output channels | 16 |
| Output type | Transistor; current-sourcing |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Current per channel, max. | 0.5 A; see additional description in the manual |
| Current per group, max. | 4 A; see additional description in the manual |
| Current per module, max. | 8 A; see additional description in the manual |
| Diagnostics | Supply voltage, wire break, short-circuit, group error, and single-channel diagnostics |
| Front connector | Screw terminals or push-in; ordered separately |
Applications
- Load-group shutdown: Supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
- Digital output control: Controls digital outputs and can control a digital input.
Key Features

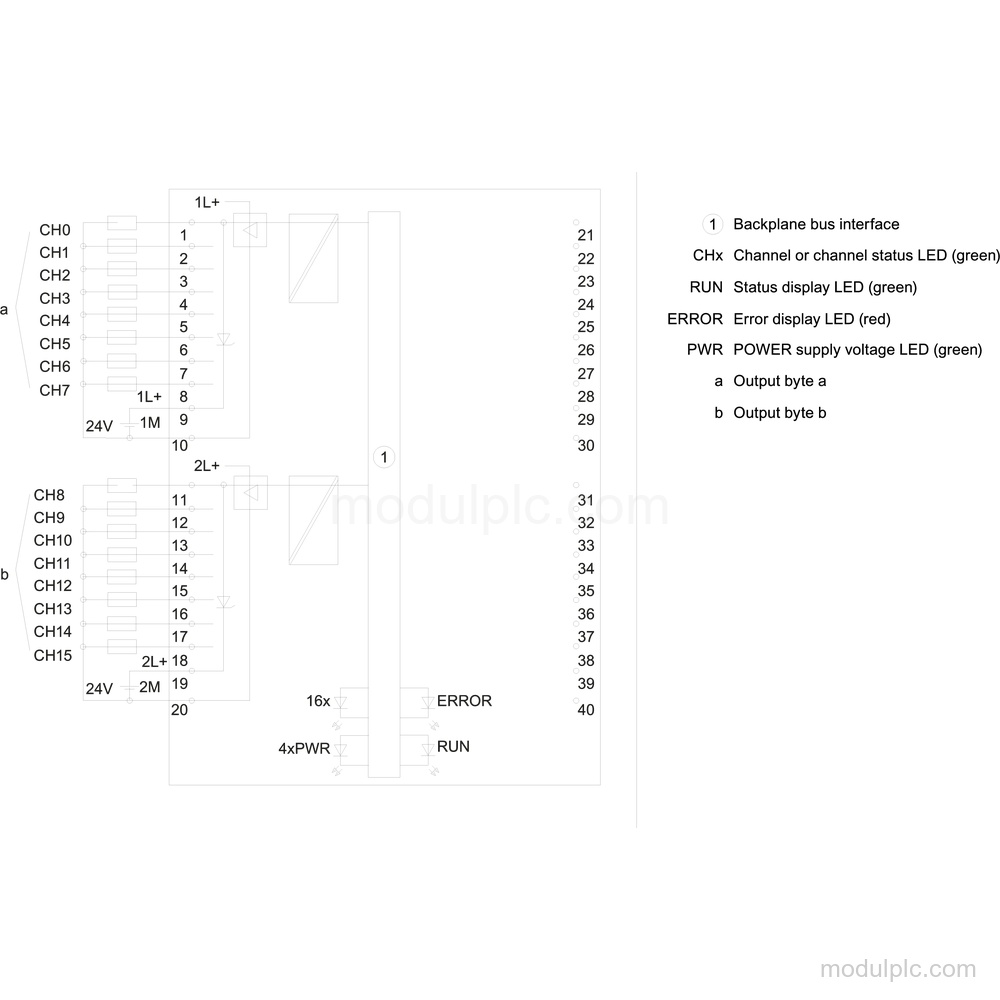

- Digital output channels: 16 transistor digital outputs in groups of 8; current-sourcing and parameterizable.
- Output capacity: 0.5 A per channel, 4 A per group, and 8 A per module; the module supports up to 0.5 A with a resistive load.
- Supply and output voltage: Rated supply voltage: 24 V DC, permissible range 19.2 V to 28.8 V; rated output voltage: 24 V DC.
- Diagnostics and protection: Single-channel diagnostics, supply-voltage monitoring, wire-break and short-circuit diagnostics, group error, and electronically clocked short-circuit protection.
- Safety-oriented shutdown: Supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
Frequently Asked Questions
1. How many digital outputs does the 6ES7522-1BH01-0AB0 have?
It has 16 transistor digital outputs in groups of 8.
2. What supply voltage does the module use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. What current can each output switch?
The rated and maximum current per channel is 0.5 A; see the additional description in the manual.
4. What diagnostics are available?
The module has single-channel diagnostics, supply-voltage monitoring, wire-break and short-circuit diagnostics, group error, and diagnostic alarms.
5. Is the front connector included?
It is without a front connector; screw terminals or push-in must be ordered separately.
