Product Overview
Technical Summary
| Parameter | Value |
|---|---|

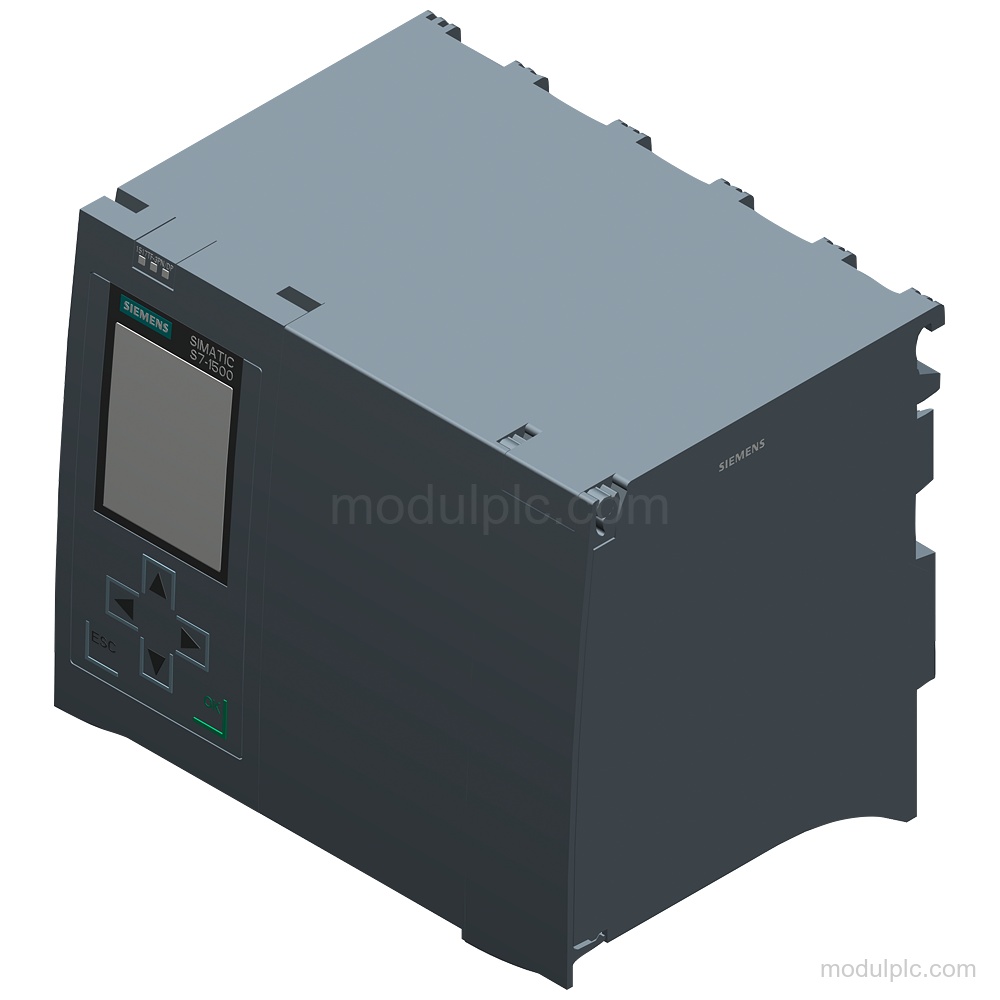

| Module type | SIMATIC S7-1500TF CPU 1517TF-3 PN/DP central processing unit |
| Program work memory | 3 MB |
| Data memory | 8 MB |
| 1st interface | PROFINET IRT with 2-port switch |
| 2nd interface | Ethernet |
| 3rd interface | PROFIBUS |
| Bit performance | 2 ns |
| Required component | SIMATIC Memory Card |
Applications
- Program and data processing: The central processing unit processes the program and data.
Key Features
- Central processing unit: SIMATIC S7-1500TF CPU 1517TF-3 PN/DP central processing unit.
- Memory: 3 MB work memory for the program and 8 MB memory for data.
- PROFINET IRT interface: 1st interface: PROFINET IRT with a 2-port switch.
- Ethernet and PROFIBUS interfaces: 2nd interface: Ethernet; 3rd interface: PROFIBUS.
- Bit performance: 2 ns bit performance.
- Memory card requirement and lifecycle: A SIMATIC Memory Card is required. Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What is the function of Siemens 6ES7517-3UP00-0AB0?
It is a SIMATIC S7-1500TF CPU 1517TF-3 PN/DP central processing unit.
2. Which interfaces does this CPU have?
It has PROFINET IRT with a 2-port switch as the 1st interface, Ethernet as the 2nd interface, and PROFIBUS as the 3rd interface.
3. What memory and card requirements apply?
It has 3 MB work memory and 8 MB data memory, and a SIMATIC Memory Card is required.
