Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1517H-3 PN |
| Program work memory | 2 Mbyte |
| Data work memory | 8 Mbyte |
| PROFINET interfaces | 2 |
| PROFINET IO Devices, max. | 256 |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V DC |
| Current consumption | 1.5 A rated; 1.9 A maximum |
| RJ45 ports | X1: 2; X2: 1 |
| SIMATIC Memory Card | Required; 1 slot |
Applications
- PROFINET IO control: The CPU supports PROFINET IO Controller operation and can connect up to 256 IO Devices.
- OPC UA server communication: The CPU provides an OPC UA Server with data access for read, write, and subscribe operations, plus method calls and a custom address space.
- PID control: The CPU supports PID_Compact, PID_3Step for valves, and PID-Temp controllers with integrated optimization.
Key Features

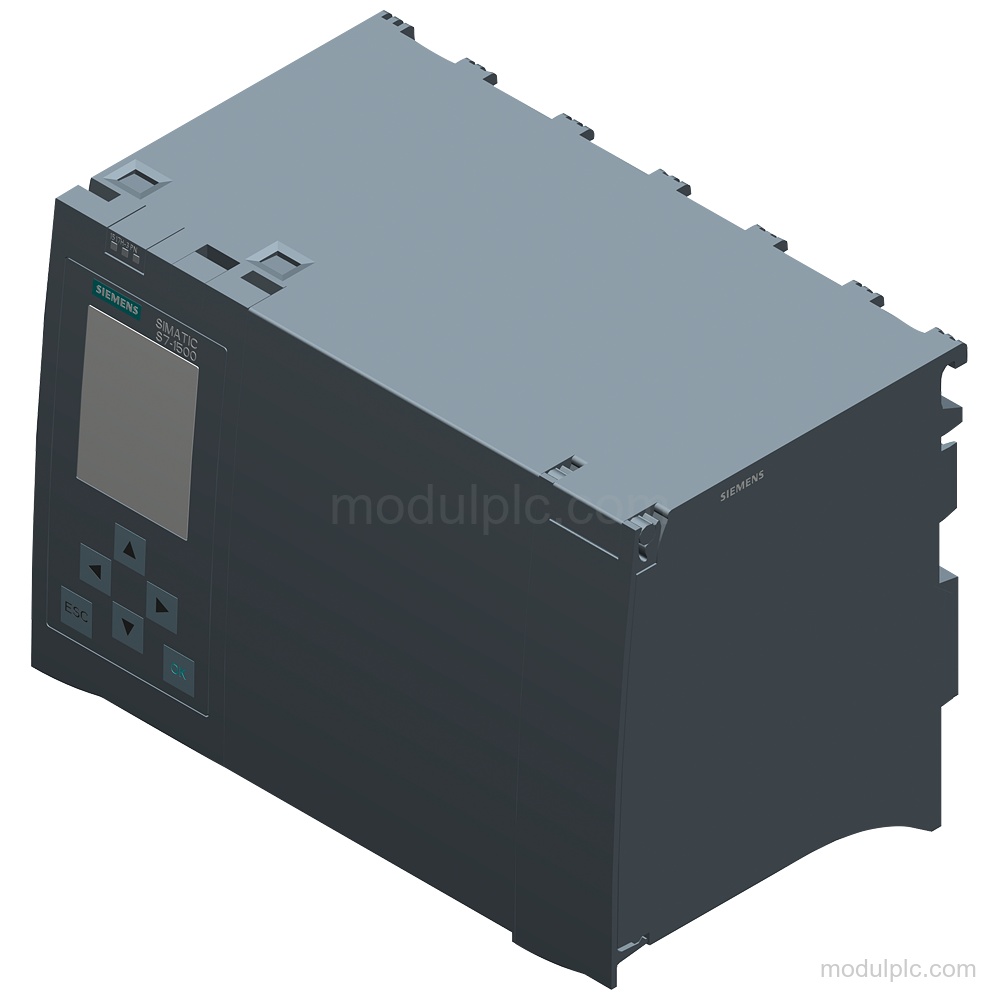

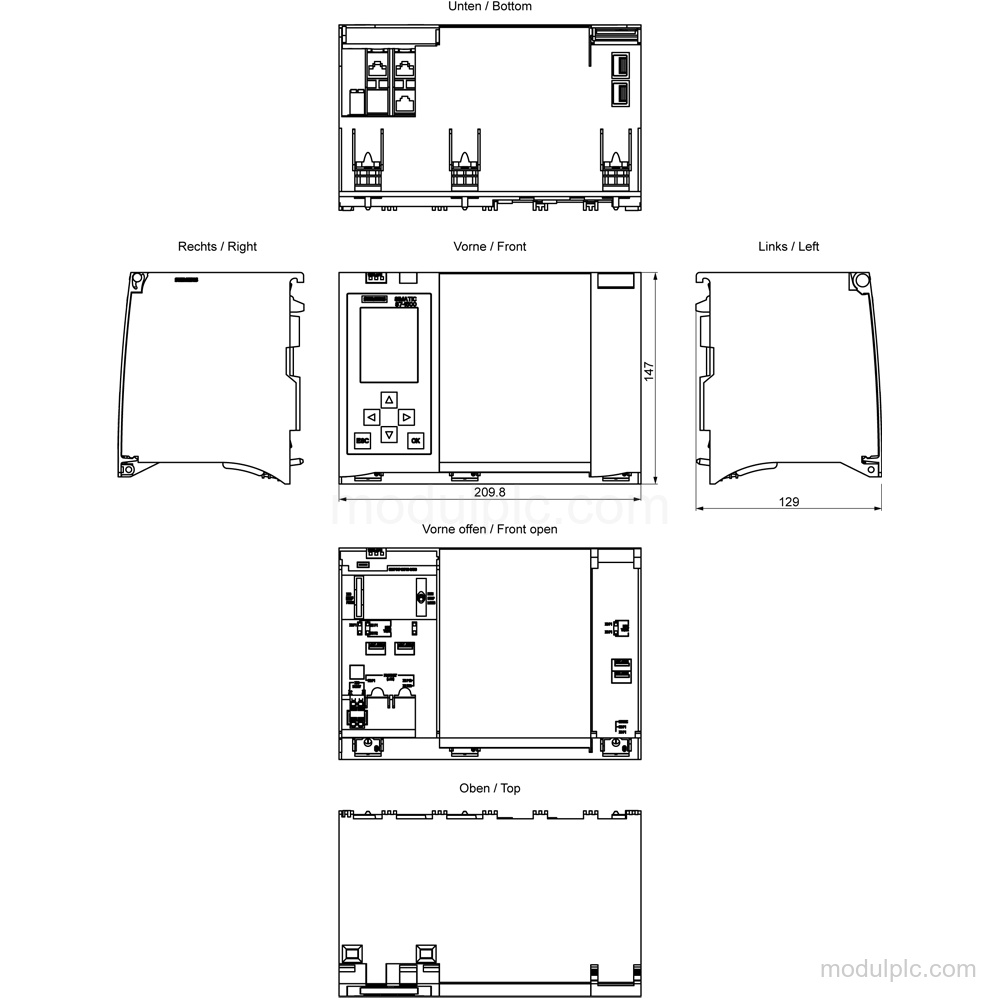

- Central processing unit: CPU 1517H-3 PN for the SIMATIC S7-1500H system, with 2 MB integrated work memory for the program and 8 MB for data.

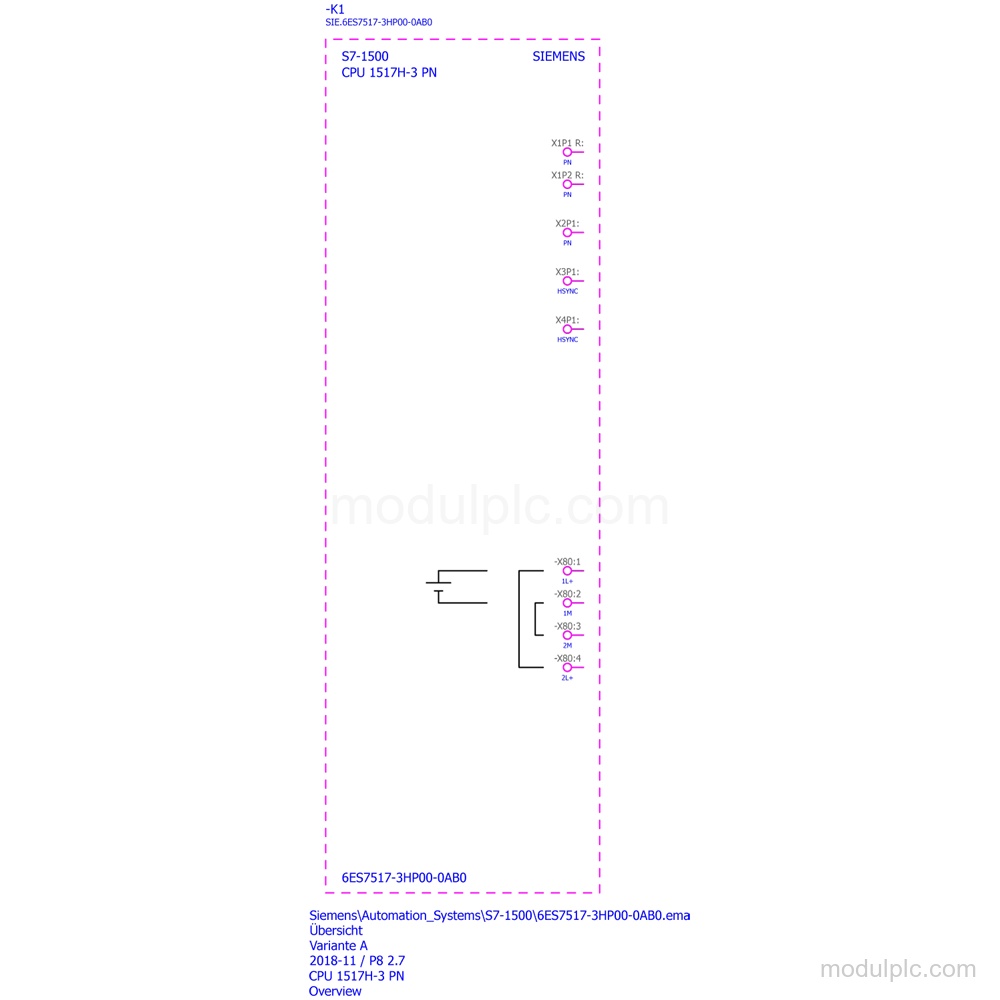

- PROFINET interfaces: 2 PROFINET interfaces with 2 RJ45 ports and an integrated switch on X1; X2 provides 1 RJ45 port without an integrated switch.
- Communication protocols: Supports PROFINET IO Controller, SIMATIC communication as server, Open IE communication, Web server, MODBUS TCP, and OPC UA Server.
- Supply and current: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Current consumption is 1.5 A rated and 1.9 A maximum.
- Memory card and storage: 1 slot is available for a SIMATIC Memory Card, which is required; plug-in load memory is up to 32 Gbyte.
- Diagnostics and protection: Diagnostic buffer has up to 3 200 entries, including 1 000 powerfail-proof entries; RUN/STOP, ERROR, and MAINT LEDs are provided.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7517-3HP00-0AB0?
It is a SIMATIC S7-1500H CPU 1517H-3 PN central processing unit.
2. How many PROFINET interfaces and ports does the CPU have?
It has 2 PROFINET interfaces. X1 has 2 RJ45 ports with an integrated switch, while X2 has 1 RJ45 port without an integrated switch.
3. What supply voltage does the CPU require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. Is a SIMATIC Memory Card included in the configuration?
It is not included; a SIMATIC Memory Card is required and the CPU has 1 card slot.
