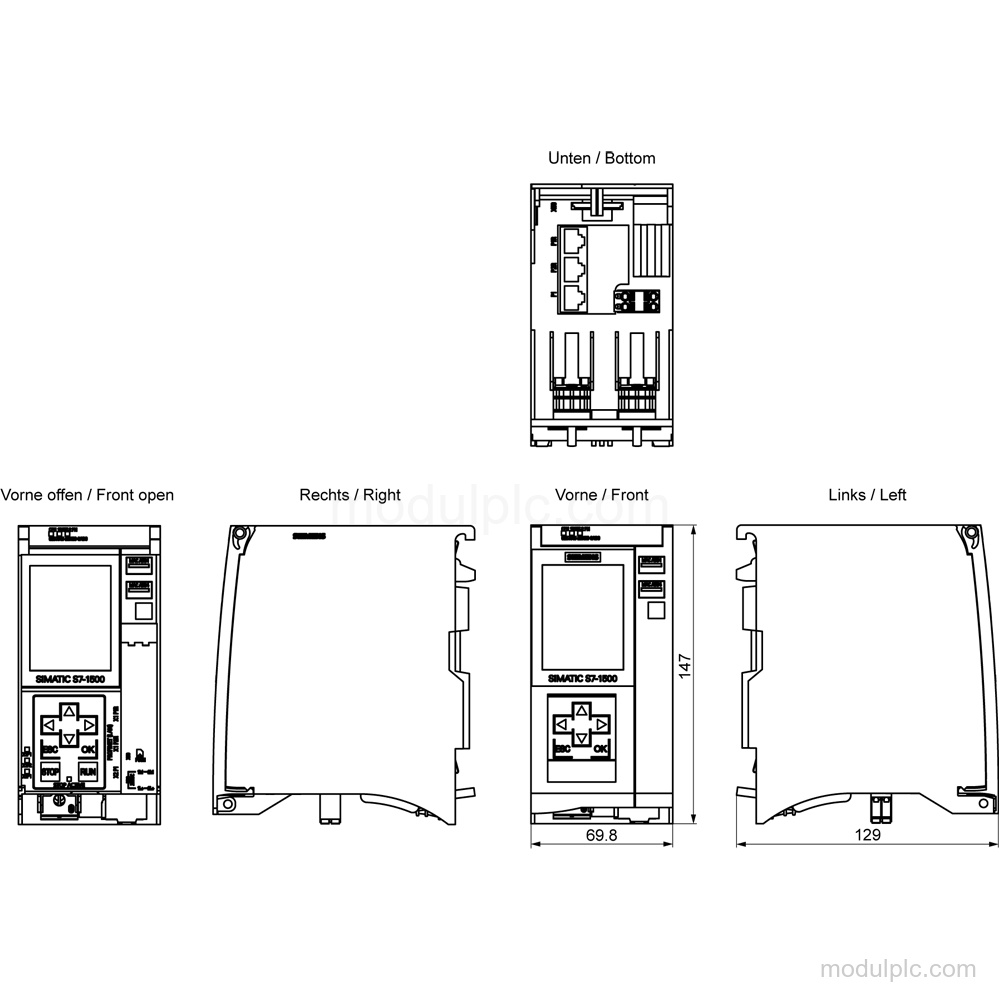

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

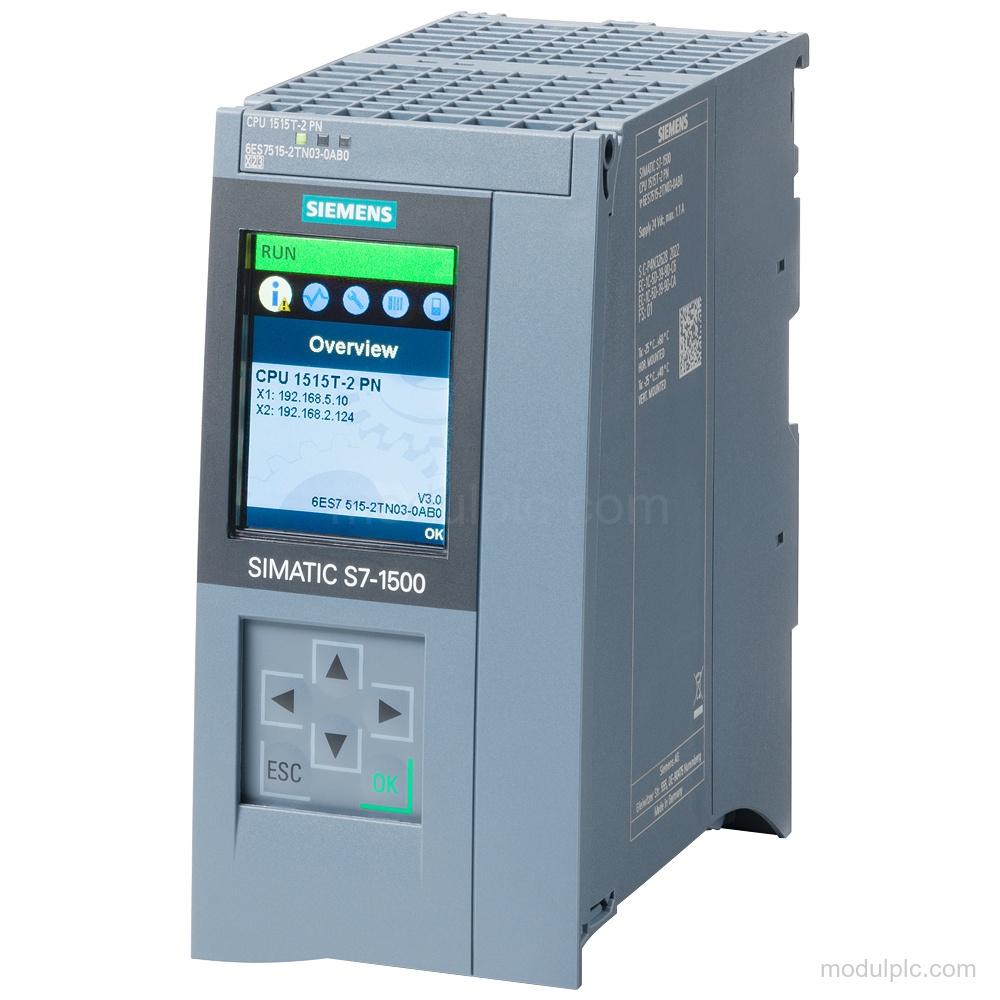

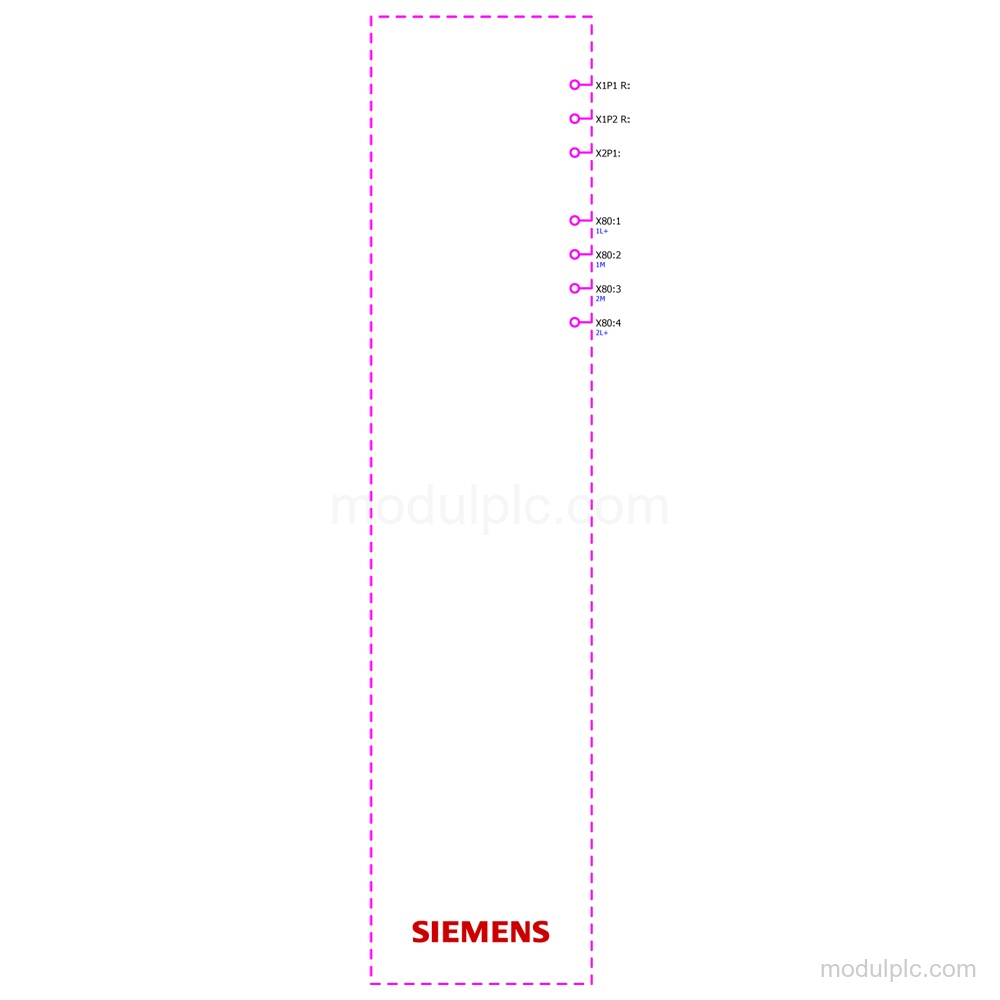

| Product type | CPU 1515T-2 PN |
| Program work memory | 1.5 Mbyte |
| Data work memory | 4.5 Mbyte |
| Bit-operation performance | 6 ns |
| Number of PROFINET interfaces | 2 |
| X1 interface | PROFINET IRT; 2-port integrated switch |
| X2 interface | PROFINET RT; 1 port |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| SIMATIC Memory Card | Required; 1 slot; up to 32 Gbyte plug-in load memory |
| Motion Control resources | 2 400 |
Applications
- Motion Control: Supports Motion Control technology objects, including positioning axes and kinematics with up to 4 interpolating axes.
- Industrial communication: Provides PROFINET, OPC UA, Open IE communication, and MODBUS TCP functions for exchanging data.
- Process control: Provides PID_Compact, PID_3Step, and PID-Temp controllers with integrated optimization.
Key Features
- Technology CPU: CPU 1515T-2 PN with 6 ns typical bit-operation processing time and support for Motion Control technology objects.
- Work memory: Integrated work memory: 1.5 Mbyte for the program and 4.5 Mbyte for data.
- PROFINET interfaces: Two interfaces are provided: X1 with PROFINET IRT, a 2-port integrated switch, and X2 with PROFINET RT and 1 port.
- Power supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC and reverse polarity protection.
- Communication: Supports PROFINET IO Controller, PROFINET IO Device, SIMATIC communication, Open IE communication, OPC UA, and MODBUS TCP.
- Memory card requirement: One SIMATIC Memory Card is required; plug-in load memory supports up to 32 Gbyte.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7515-2TN03-0AB0?
It is a SIMATIC S7-1500T CPU 1515T-2 PN with Motion Control technology-object support and 6 ns typical bit-operation processing time.
2. How many PROFINET interfaces does the CPU have?
It has 2 PROFINET interfaces. X1 provides PROFINET IRT with a 2-port integrated switch, while X2 provides PROFINET RT with 1 port.
3. What supply voltage does this CPU use?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
