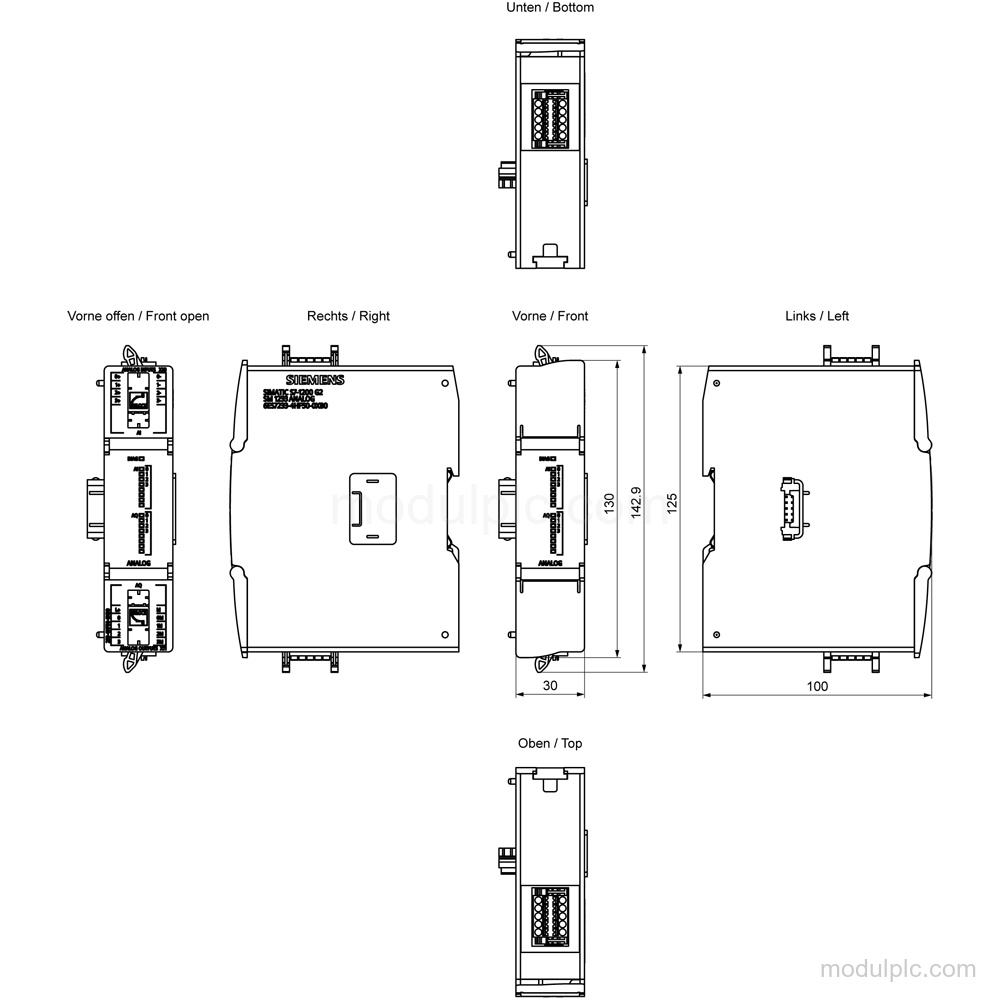

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SM 1233, AI 4x 14 bit/AQ 4x 14 bit |
| Analog inputs | 4; Current or voltage differential inputs |
| Analog outputs | 4; Current or voltage |
| Input ranges | ±10 V, ±5 V, ±2.5 V, 0 to 20 mA, 4 mA to 20 mA |
| Output ranges | -10 V to +10 V, 0 to 20 mA, 4 mA to 20 mA |
| Resolution | 14 bit ADC/DAC |
| Cycle time | 0.625 ms max.; all channels, at 400 Hz rejection |
| Supply voltage | 24 V rated; 20.4 V to 28.8 V permissible |
| Typical current consumption | 40 mA |
| Typical power loss | 4.7 W |
| Protection | IP20 |
Applications
- Analog signal acquisition: Acquires voltage and current signals through 4 analog inputs.
- Analog value generation: Generates voltage and current analog values through 4 analog outputs.
Key Features

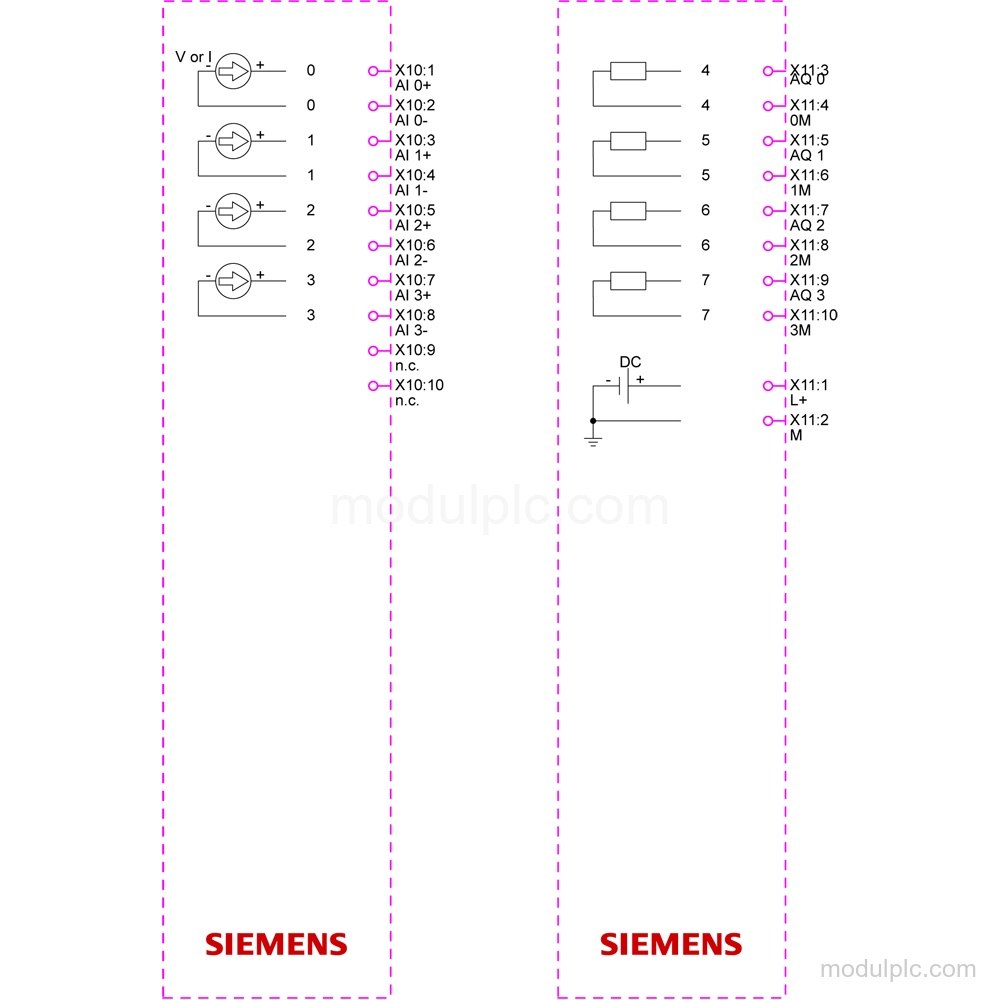

- Analog I/O channels: 4 analog inputs with current or voltage differential inputs and 4 analog outputs for current or voltage.
- Input signal ranges: Inputs support ±10 V, ±5 V, ±2.5 V, 0 to 20 mA, and 4 mA to 20 mA.
- Output signal ranges: Outputs support -10 V to +10 V, 0 to 20 mA, and 4 mA to 20 mA.
- Resolution and cycle time: Inputs and outputs use 14 bit conversion; the maximum cycle time for all channels is 0.625 ms at 400 Hz rejection.
- Supply and consumption: Rated supply voltage is 24 V, with a permissible range of 20.4 V to 28.8 V. Typical current consumption is 40 mA and typical power loss is 4.7 W.
- Diagnostics and protection: Diagnostics include supply-voltage monitoring, wire-break and short-circuit detection, diagnostic alarms, DIAG LED indication, and IP20 protection.
Frequently Asked Questions
1. How many analog channels does the 6ES7233-4HF50-0XB0 have?
It has 4 analog inputs and 4 analog outputs.
2. Which input signal ranges are supported?
The inputs support ±10 V, ±5 V, ±2.5 V, 0 to 20 mA, and 4 mA to 20 mA.
3. Which output signal ranges are supported?
The outputs support -10 V to +10 V, 0 to 20 mA, and 4 mA to 20 mA.
4. What supply voltage does this module require?
The rated supply voltage is 24 V, with a permissible range of 20.4 V to 28.8 V.
