Product Overview

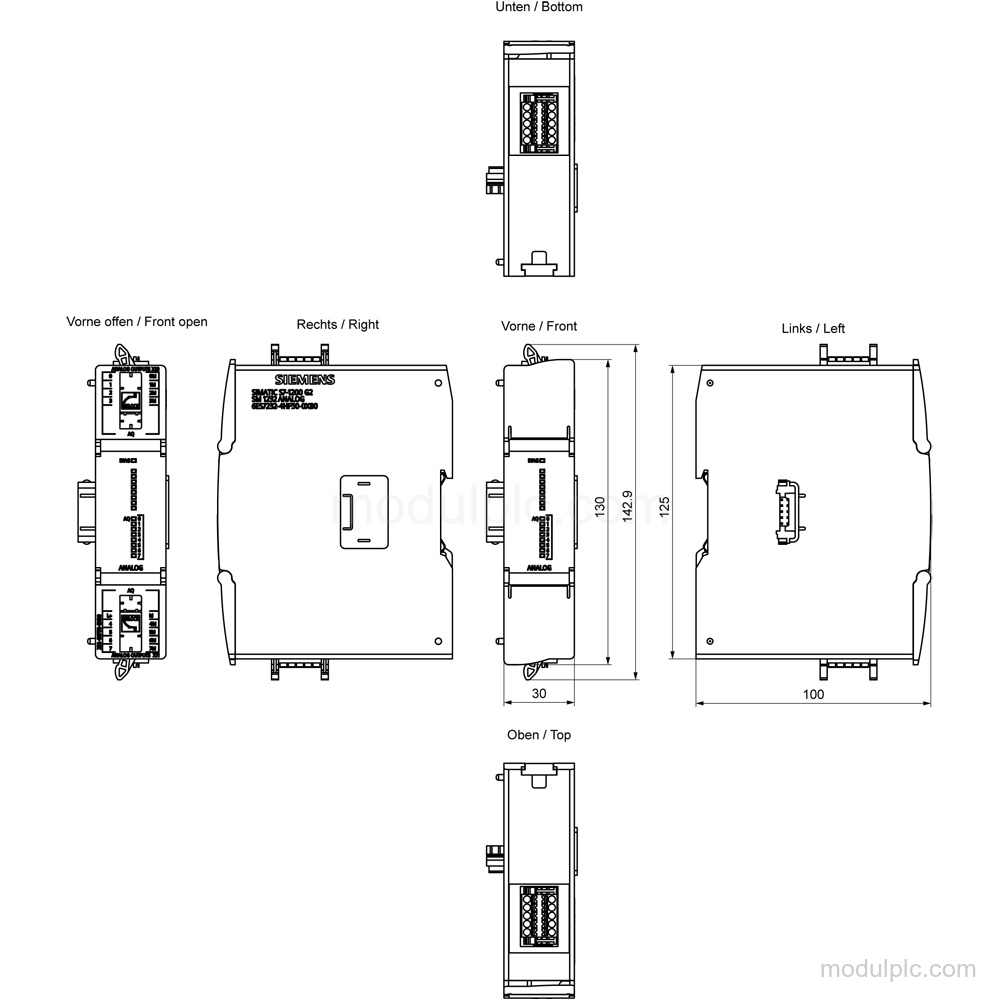

Technical Summary
| Parameter | Value |
|---|---|
| Product type | SM 1232, AQ 8x 14 bit |
| Analog outputs | 8; Current or voltage |
| Output ranges | -10 V to +10 V; 0 to 20 mA; 4 mA to 20 mA |
| Resolution | 14 bit; Voltage: 14 bit; Current: 13 bit |
| Supply voltage | 24 V DC rated; 20.4 V to 28.8 V DC permissible |
| Current consumption | 45 mA typical |
| Diagnostics | Supply-voltage monitoring, wire break, short circuit, diagnostic alarm, DIAG LED |
| Protection | IP20 |
Applications

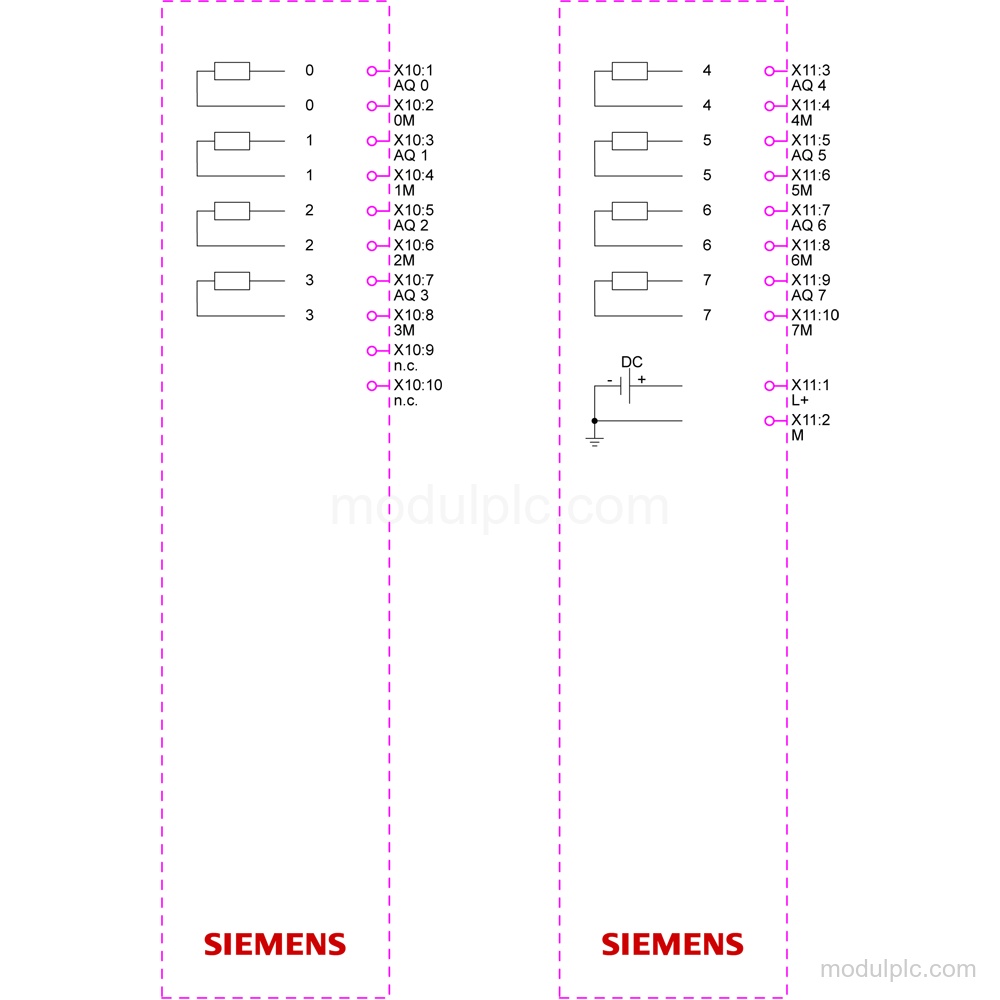

- Analog signal output: Provides current or voltage analog outputs through 8 AO channels.
Key Features
- Analog output channels: 8 analog outputs, configurable for current or voltage.
- Supported output ranges: Voltage: -10 V to +10 V; current: 0 to 20 mA or 4 mA to 20 mA.
- Resolution: 14 bit maximum resolution with overrange including sign; current resolution: 13 bit.
- Supply and consumption: Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC. Typical current consumption: 45 mA.
- Diagnostics: Diagnostics function and diagnostic alarm are available, including supply-voltage monitoring, wire-break and short-circuit diagnostics. A DIAG LED indicates status.
- Protection and cable length: IP20 degree of protection. Maximum shielded cable length: 100 m with shielded, twisted pair.
Frequently Asked Questions
1. What type of module is Siemens 6ES7232-4HF50-0XB0?
It is an SM 1232 analog output module with 8x 14-bit AQ.
2. How many analog outputs does the module have?
It has 8 analog outputs for current or voltage.
3. Which signal ranges are supported?
It supports -10 V to +10 V, 0 to 20 mA, and 4 mA to 20 mA.
4. What diagnostics does it provide?
It provides supply-voltage monitoring, wire-break and short-circuit diagnostics, a diagnostic alarm, and a DIAG LED.
