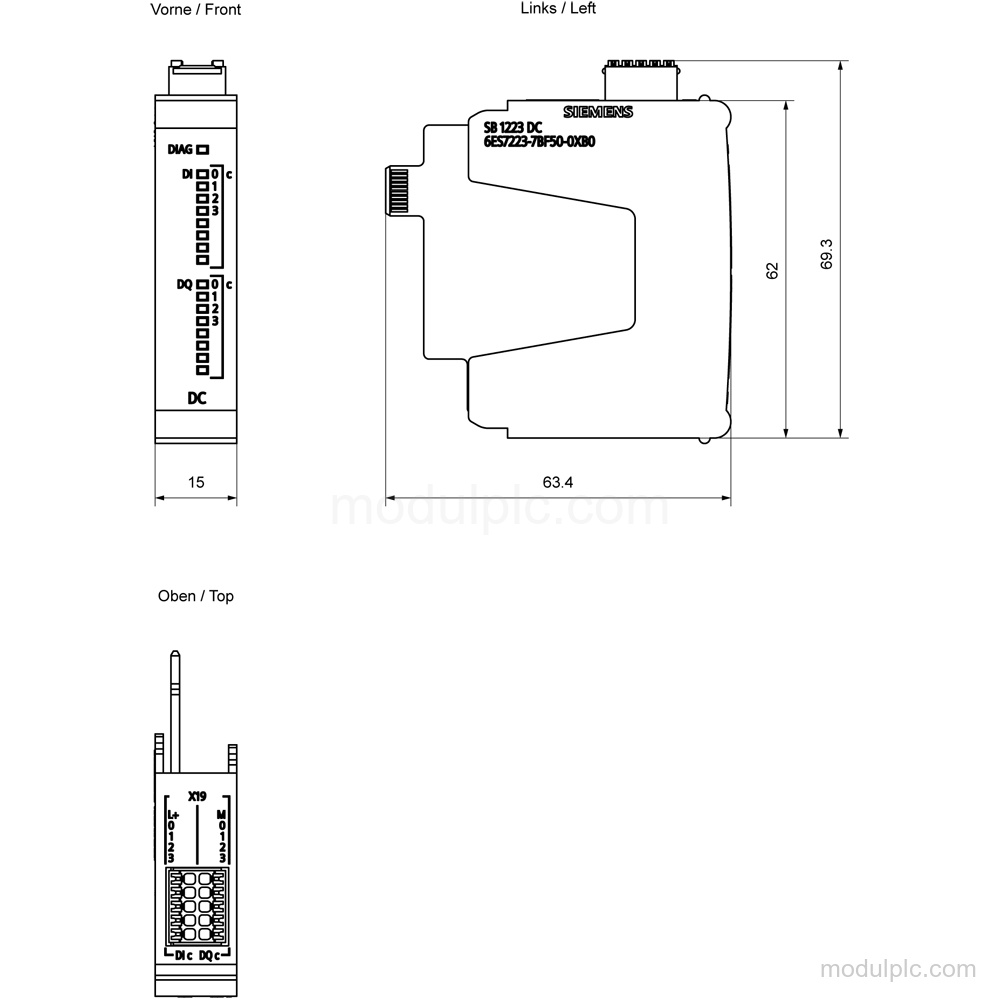

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 4; sink / source |
| Digital outputs | 4; sinking / sourcing transistor |
| Input signal range | Signal 0: 5 V DC or 0.5 mA; signal 1: 15 V DC at 2.5 mA |
| Output current | 0.1 A rated value for signal 1 |
| Operating frequency | 100 kHz |
| Supply voltage | 24 V DC rated; permissible range 20.4 V to 28.8 V |
| Input filtering | Parameterizable: 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms |
| Output switching capacity | 0.1 A with resistive load, max. |
| Input-output isolation | Between channels: no; between channels and backplane bus: yes, 707 V DC type test |
| Diagnostics | Diagnostics, diagnostic alarm, supply-voltage monitoring, and DIAG LEDs |
| Protection | IP20; output short-circuit protection |

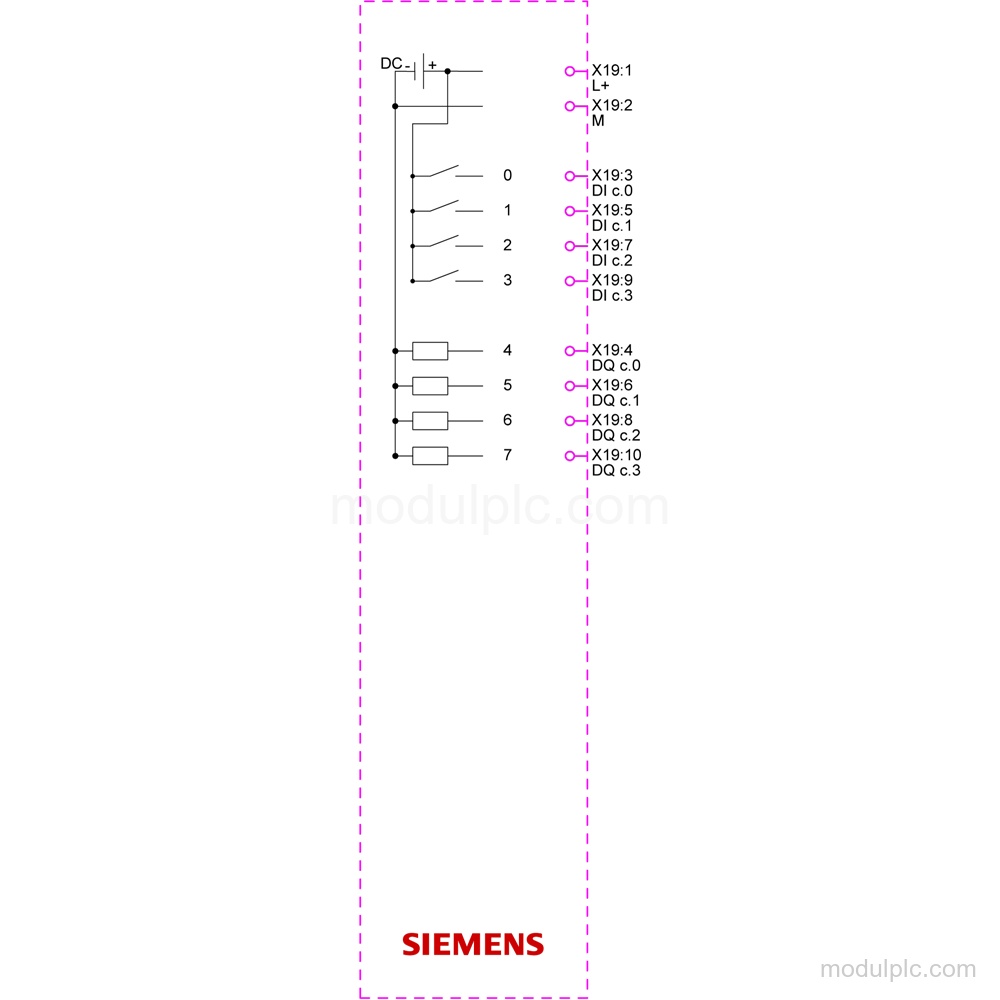

Key Features
- Digital I/O configuration: 4 digital inputs and 4 digital outputs; inputs are sink/source and outputs are sinking/sourcing transistor outputs.
- 24 V DC signals: Rated input and output voltage is 24 V DC. Input signal 0 is 5 V DC or 0.5 mA, and signal 1 is 15 V DC at 2.5 mA.
- 100 kHz operation: The digital inputs and outputs support 100 kHz operation.
- Configurable input filtering: Standard input filtering is parameterizable from 0.1 μs to 20.0 μs or from 0.05 ms to 20.0 ms.
- Diagnostics and status LEDs: The module has diagnostics, diagnostic alarms, supply-voltage monitoring, and DIAG LEDs for input and output status.
- Isolation and protection: Inputs and outputs are not isolated between channels, but each is isolated from the backplane bus at 707 V DC type test; outputs have short-circuit protection and IP20 protection.
Frequently Asked Questions
1. How many digital inputs and outputs does 6ES7223-7BF50-0XB0 have?
It has 4 digital inputs and 4 digital outputs. The inputs are sink/source, and the outputs are sinking/sourcing transistor outputs.
2. What signal levels does the module support?
The rated input and output voltage is 24 V DC. Input signal 0 is 5 V DC or 0.5 mA, while signal 1 is 15 V DC at 2.5 mA.
3. What timing capability is specified for the digital I/O?
The digital inputs and outputs support 100 kHz operation. Output delay with resistive load is 1.8 μs maximum for both 0 to 1 and 1 to 0.
4. What diagnostics are available?
The module has diagnostics, diagnostic alarms, supply-voltage monitoring, and DIAG LEDs for input and output status.
5. What should be verified before requesting a quote?
Verify the 24 V DC supply, 4-input/4-output configuration, 100 kHz requirement, signal levels, installation conditions, and required cable lengths.
