Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SB 1223, DI 4x 5 V DC/DQ 4x 5 V DC 200 kHz |
| Digital inputs | 4; Current-sourcing |
| Digital outputs | 4; sinking/sourcing transistor |
| Input voltage | 5 V DC rated value |
| Output voltage | 5 V DC rated value |
| Output current | 0.1 A rated value; 0.1 A permissible range, max. |
| Supply voltage | 5 V DC rated value; 4.25 V to 6 V permissible range |
| Input current from backplane bus | 60 mA, typ. |
Applications
- Digital signal acquisition: The 4 digital inputs acquire 5 V DC signals at up to 200 kHz.
- Digital output control: The 4 transistor digital outputs control 5 V DC signals at up to 200 kHz.
Key Features
- Digital I/O channels: 4 digital inputs and 4 digital outputs, each arranged in groups of 4.
- 5 V DC signal operation: Inputs and outputs have a 5 V DC rated value; outputs support 0.1 A with a resistive load.
- High-speed switching: Inputs and outputs support operation up to 200 kHz.
- Diagnostics: The module has diagnostics, diagnostic alarms, supply-voltage monitoring, and DIAG LED indications for input and output status.
- Electrical isolation: Digital inputs and outputs are electrically isolated from the backplane bus at 707 V DC type test; channels within each group are not isolated.

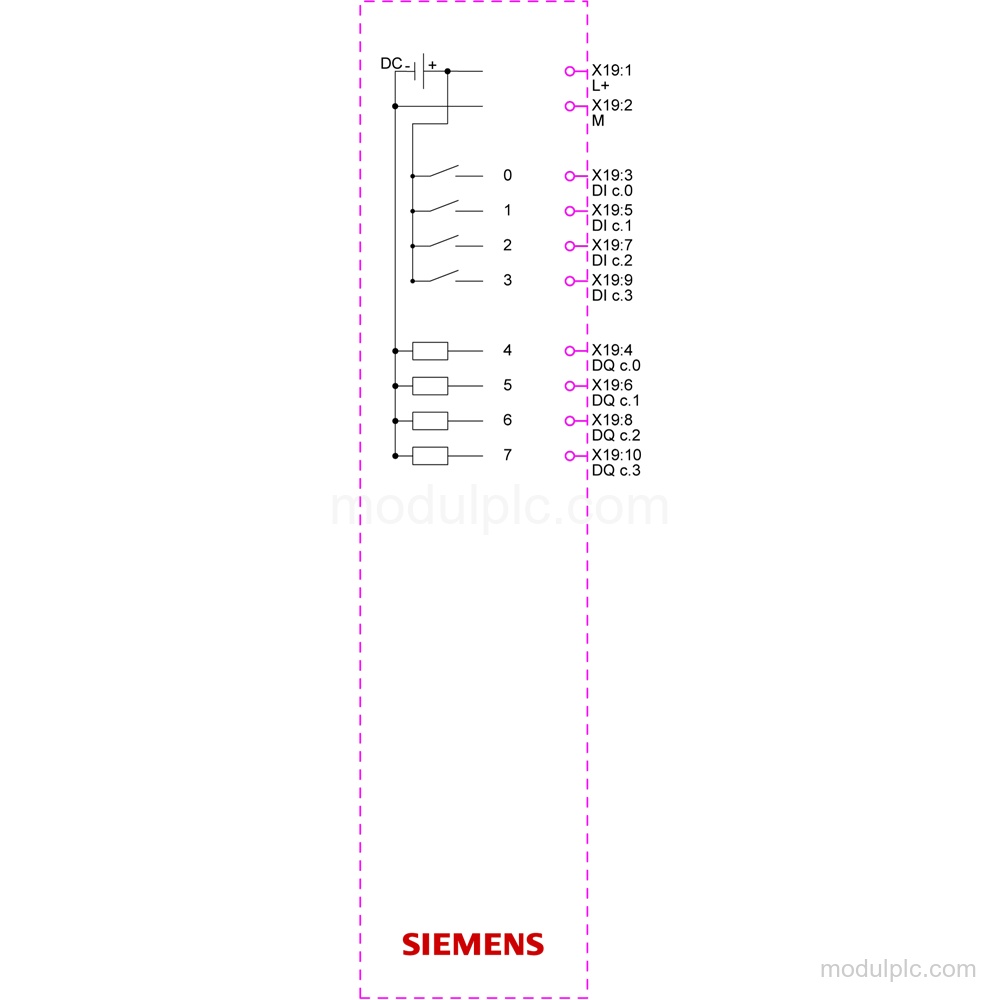

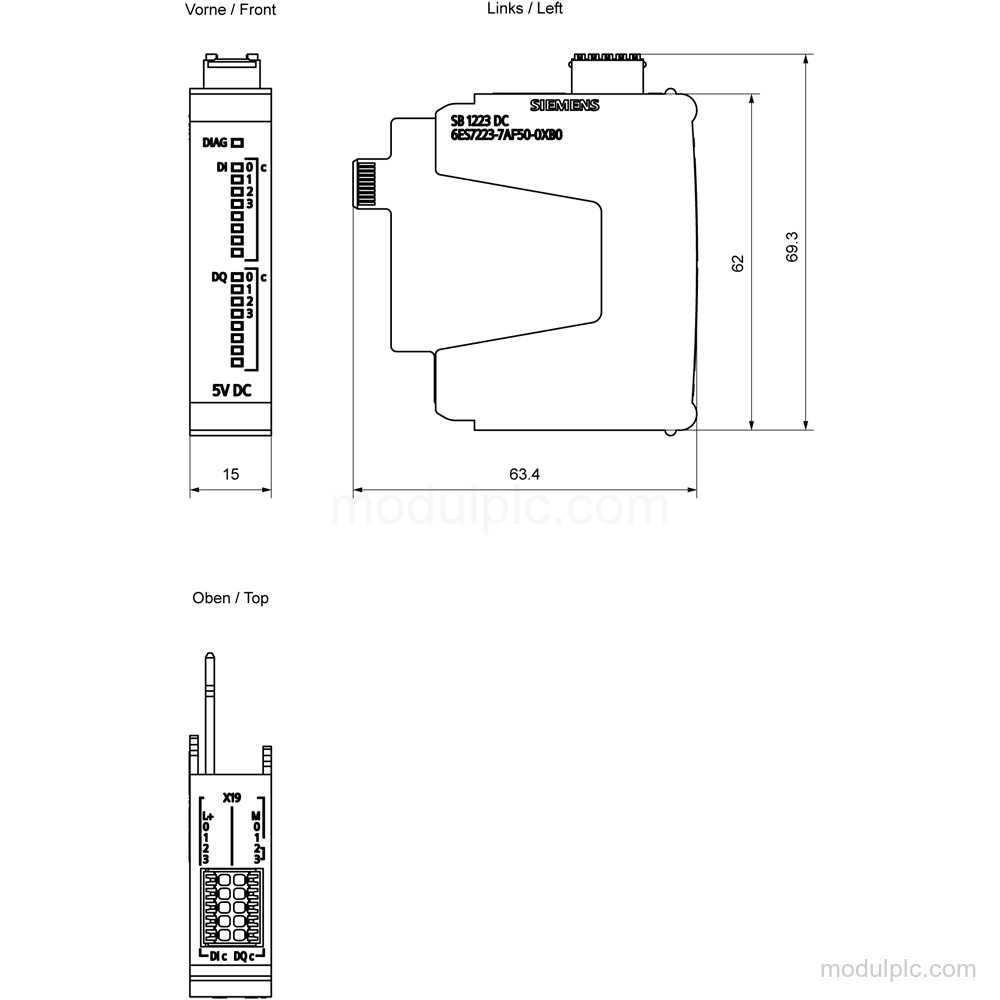

- Compact installation: Dimensions are 82.00 x 34.00 x 79.00 mm and net weight is 0.028 kg. All mounting positions are supported up to 40 °C, max. 4.
Frequently Asked Questions
1. How many digital I/O channels does the 6ES7223-7AF50-0XB0 have?
It has 4 digital inputs and 4 digital outputs, with each type arranged in groups of 4.
2. What signal voltage and output current does this module support?
The input and output rated voltage is 5 V DC. The output current is 0.1 A rated value and 0.1 A permissible range, max.
3. What diagnostics are available?
The module has diagnostics, diagnostic alarms, supply-voltage monitoring, and DIAG LED indications for input and output status.
