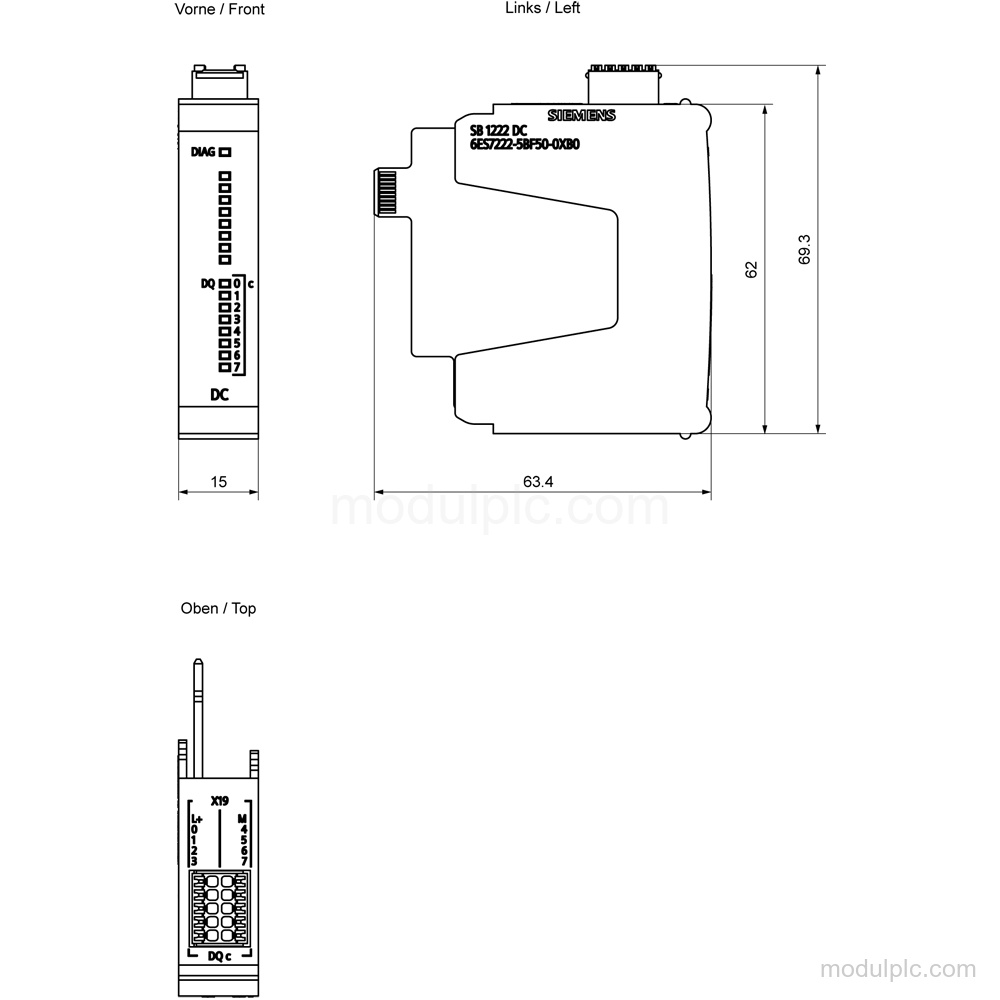

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SB 1222, DQ 8x 24 V DC 100 kHz |
| Digital outputs | 8 |
| Output voltage, rated | 24 V DC |
| Output current, rated | 0.1 A |
| Supply voltage, rated | 24 V DC |
| Supply voltage, permissible range | 20.4 V to 28.8 V |
| Output delay, maximum | 1.8 μs for "0" to "1" and "1" to "0" |
| Configuration | STEP 7 TIA Portal V20 or higher |
| Protection | IP20 |
Applications
- Digital output control: Provides transistor digital outputs for controlling connected loads through 24 V DC output signals.
Key Features

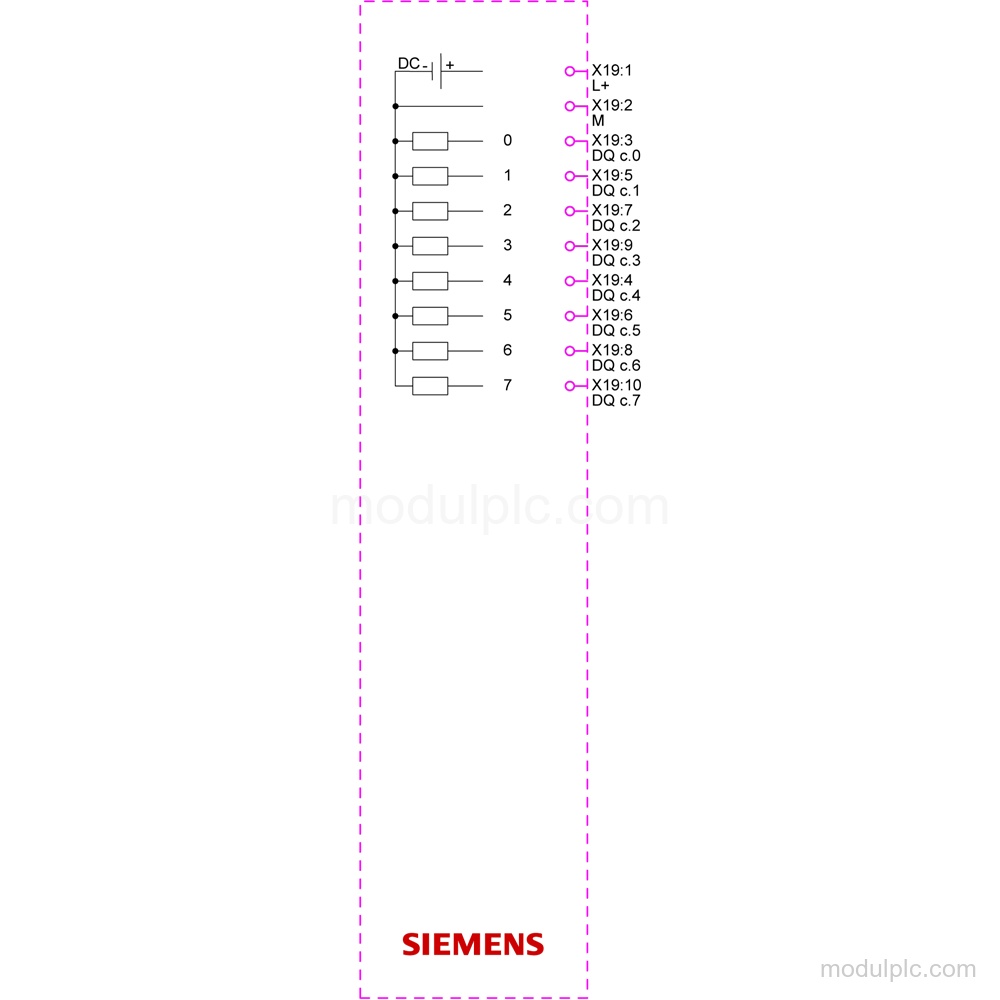

- Digital outputs: 8 digital outputs in 1 group, with sinking/sourcing transistor outputs.
- Output signal: 24 V DC rated output voltage and 0.1 A rated output current for signal "1".
- High-speed operation: 100 kHz output capability with a maximum output delay of 1.8 μs for both "0" to "1" and "1" to "0".
- Supply voltage: 24 V DC rated supply voltage with a permissible range of 20.4 V to 28.8 V.
- Diagnostics and protection: Short-circuit protection, diagnostic alarm, supply-voltage monitoring, and DIAG LED indication.
- Installation and connection: IP20 protection; maximum cable length is 500 m shielded or 150 m unshielded.
Frequently Asked Questions
1. How many digital outputs does the 6ES7222-5BF50-0XB0 have?
It has 8 digital outputs in 1 group.
2. What output voltage and current does this module support?
The rated output voltage is 24 V DC, and the rated output current for signal "1" is 0.1 A.
3. What is the output delay?
The maximum output delay is 1.8 μs for both "0" to "1" and "1" to "0" with a resistive load.
4. What diagnostics and protection are included?
It has short-circuit protection, a diagnostic alarm, supply-voltage monitoring, and DIAG LED indication.
