Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SIM 1274, 14 DI |
| Digital inputs | 14 |
| Digital outputs | 0 |
| Analog inputs | 0 |
| Analog outputs | 0 |
| 24 V DC inputs | 10 |
| 1.5 V differential inputs | 4 |
Applications
- Input simulation: The simulator module provides input switches and 24 V DC or differential inputs for simulating input signals.
Key Features
- Simulator module: Product type designation: SIM 1274, 14 DI.
- Digital inputs: Number of digital inputs: 14.

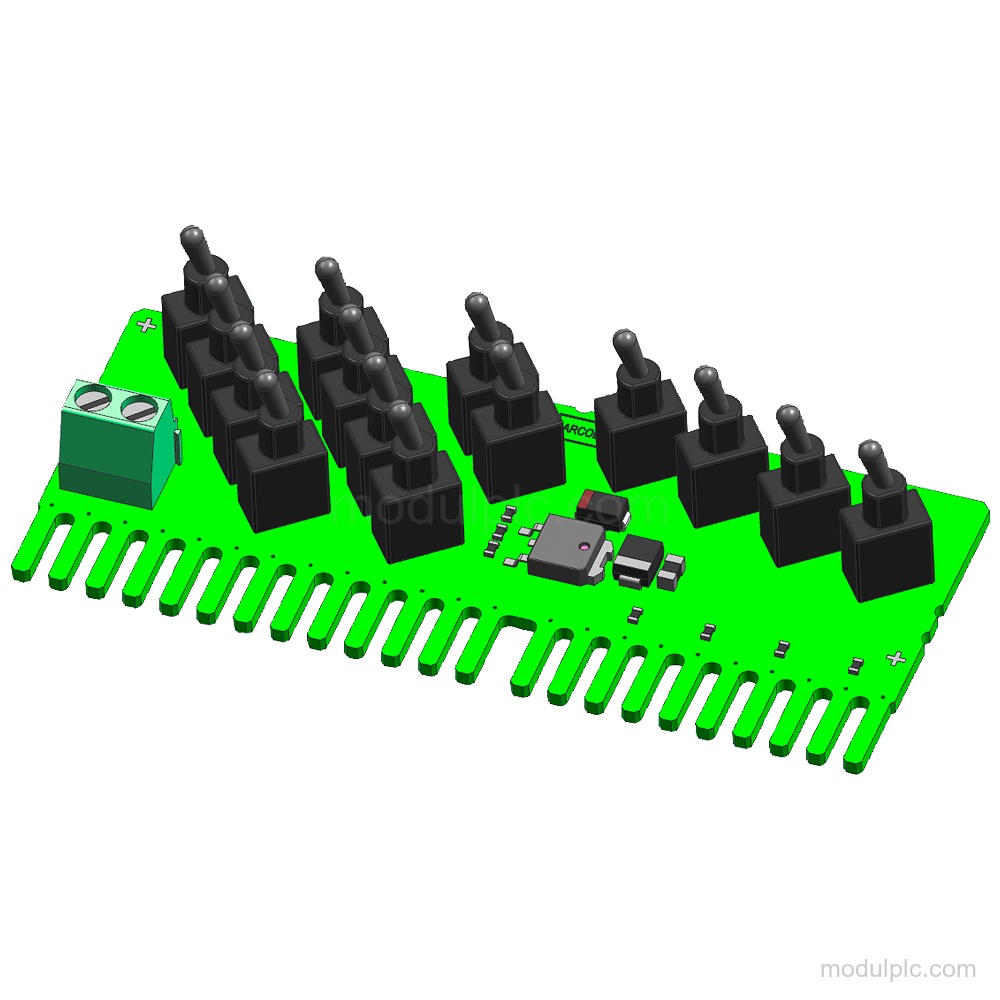

- Input switches: The module has 14 input switches.
- 24 V DC inputs: 10 x 24 V DC inputs.
- Differential inputs: 4 x 1.5 V differential inputs.

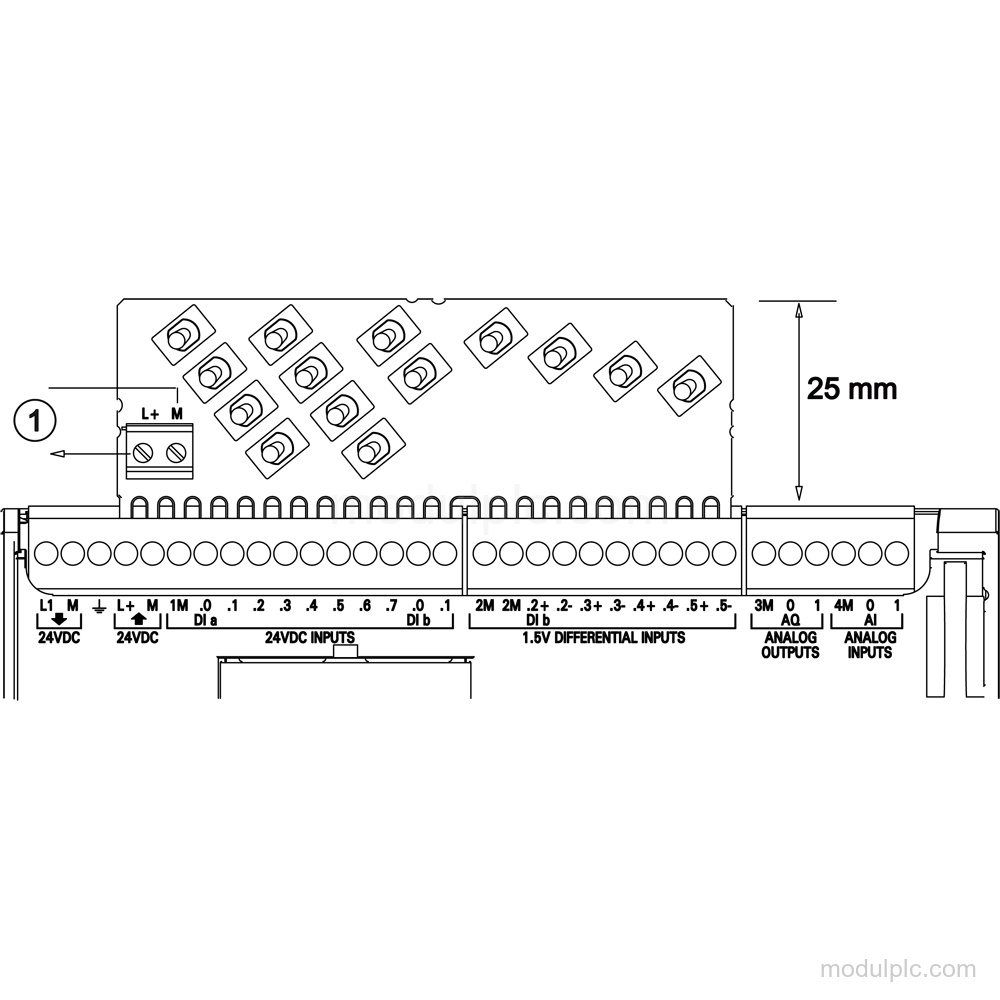

- Dimensions: Width: 93 mm; height: 40 mm; depth: 23 mm.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7274-1XK30-0XA0?
It is a SIM 1274 simulator module with 14 input switches for CPU 1217C.
2. How many inputs does the SIM 1274 have?
It has 14 digital inputs: 10 x 24 V DC inputs and 4 x 1.5 V differential inputs.
3. What are the dimensions of this simulator module?
The dimensions are 93 mm wide, 40 mm high, and 23 mm deep.
