Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SIM 1274, 8DI |
| Digital inputs | 8 |
| Digital outputs | 0 |
| Rated supply voltage | 24 V DC |
| IP degree of protection | IP20 |
Applications

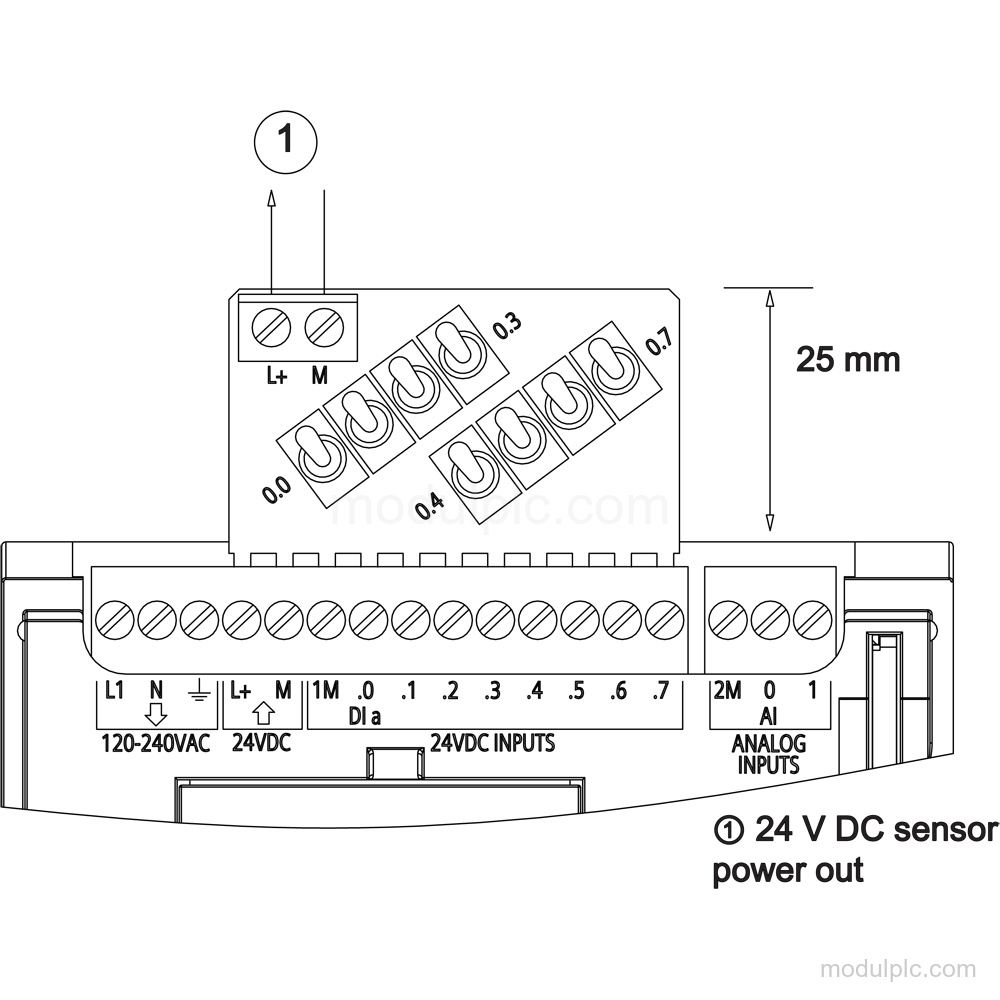

- Digital input simulation: The simulator module provides 8 input switches for simulating 24 V DC digital inputs.
Key Features
- SIM 1274, 8DI: Product type designation: SIM 1274, 8DI.
- 8 digital inputs: The module has 8 digital inputs and 0 digital outputs.
- 24 V DC supply: Rated supply voltage: 24 V DC.
- IP20 protection: IP degree of protection: IP20.
- Compact dimensions: Dimensions: 43 mm width, 35 mm height, and 23 mm depth.
- Active Product: Product lifecycle: Active Product.
Frequently Asked Questions
1. How many digital inputs does the SIM 1274 have?
The SIM 1274 has 8 digital inputs.
2. What supply voltage does the 6ES7274-1XF30-0XA0 use?
Its rated supply voltage is 24 V DC.
3. Does this module provide digital outputs?
It has 0 digital outputs.
4. What are the dimensions of the simulator module?
The dimensions are 43 mm width, 35 mm height, and 23 mm depth.
