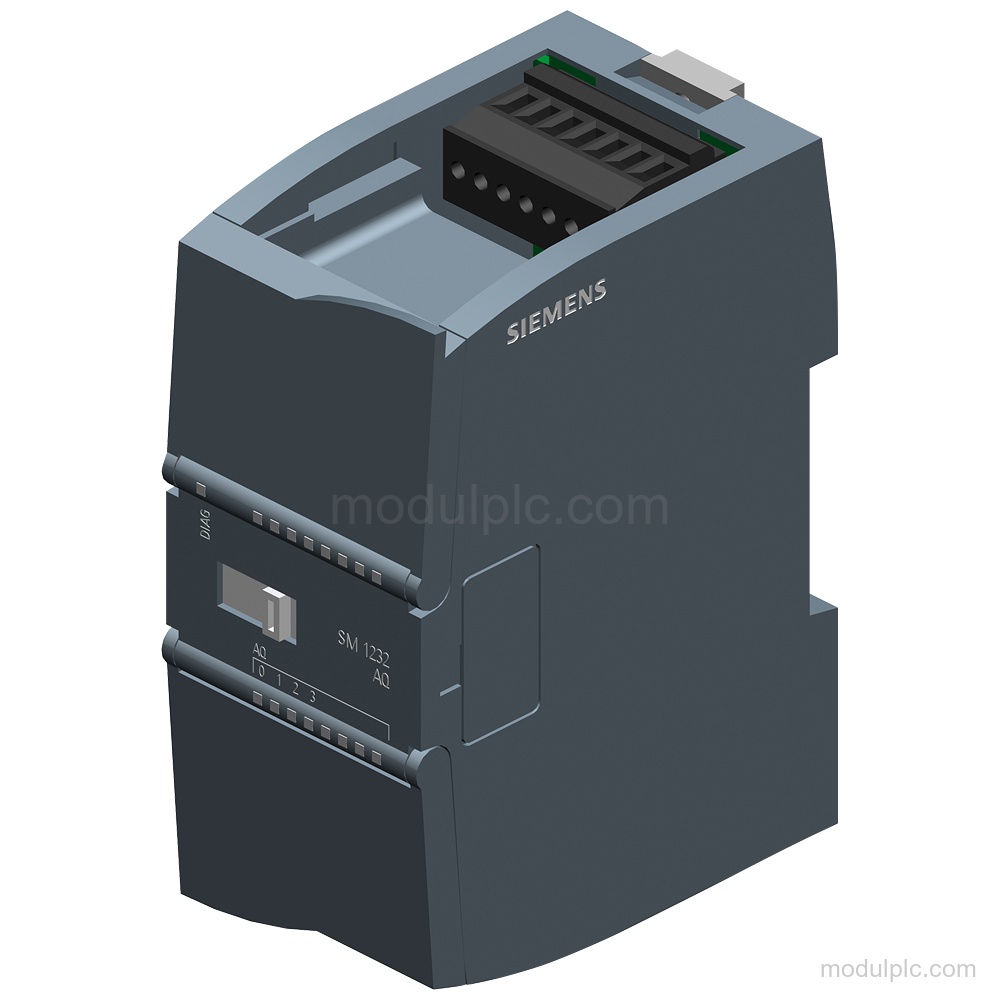

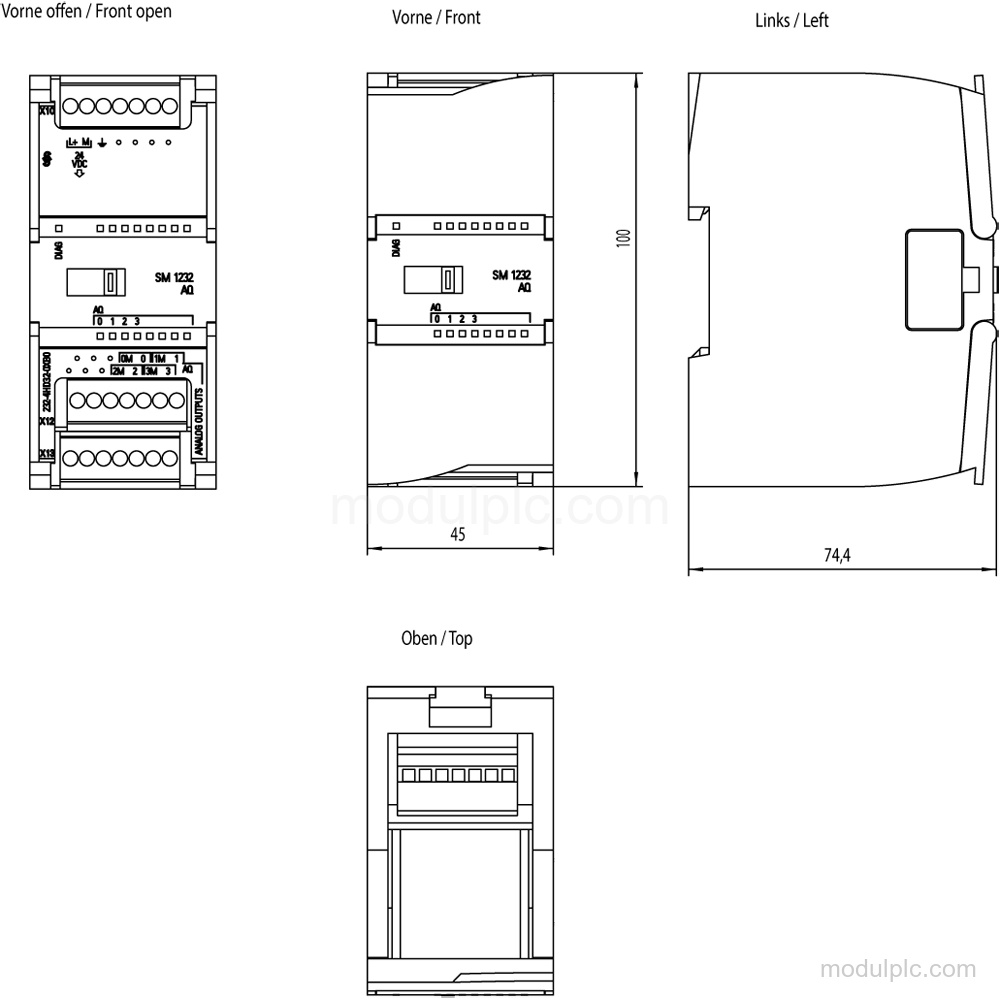

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SM 1232, AQ 4×14 bit |
| Analog outputs | 4; current or voltage |
| Voltage output range | -10 V to +10 V |
| Current output range | 0 to 20 mA |
| Voltage resolution | 14 bit |
| Current resolution | 13 bit |
| Rated supply voltage | 24 V DC |
| Protection degree | IP20 |
Applications
- Analog output control: Provides current or voltage analog outputs for output control.
Key Features

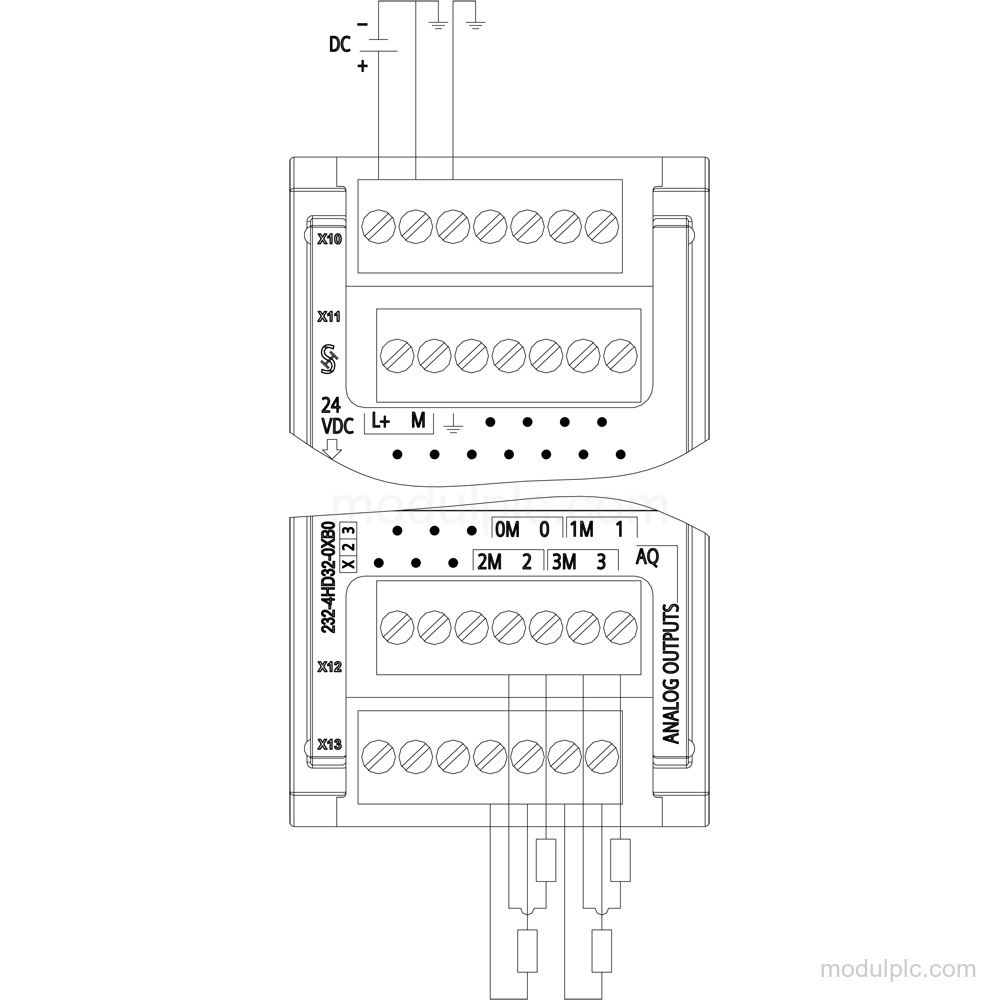

- Analog output channels: 4 analog outputs; current or voltage.
- Output signal ranges: Voltage: -10 V to +10 V; current: 0 to 20 mA.
- Resolution: Voltage: 14 bit; current: 13 bit.
- Supply and consumption: Rated supply: 24 V DC. Current consumption: 45 mA typical; backplane bus 5 V DC consumption: 80 mA typical.
- Diagnostics: Has alarms, a diagnostics function, diagnostic alarm, supply-voltage monitoring, wire-break detection, and output-status and maintenance LEDs.
- Load and cable limits: Voltage outputs: minimum load impedance 1 000 Ω; current outputs: maximum 600 Ω. Shielded twisted-pair cable length: maximum 100 m.
Frequently Asked Questions
1. How many analog outputs does 6ES7232-4HD32-0XB0 have?
It has 4 analog outputs for current or voltage.
2. Which output ranges are supported?
The voltage output range is -10 V to +10 V, and the current output range is 0 to 20 mA.
3. What resolution does the module provide?
Voltage outputs provide 14 bit resolution, while current outputs provide 13 bit resolution.
4. What supply voltage does it use?
The rated supply voltage is 24 V DC.
5. What diagnostics are available?
It has alarms, a diagnostics function, diagnostic alarm, supply-voltage monitoring, wire-break detection, and LEDs for output status and maintenance.
