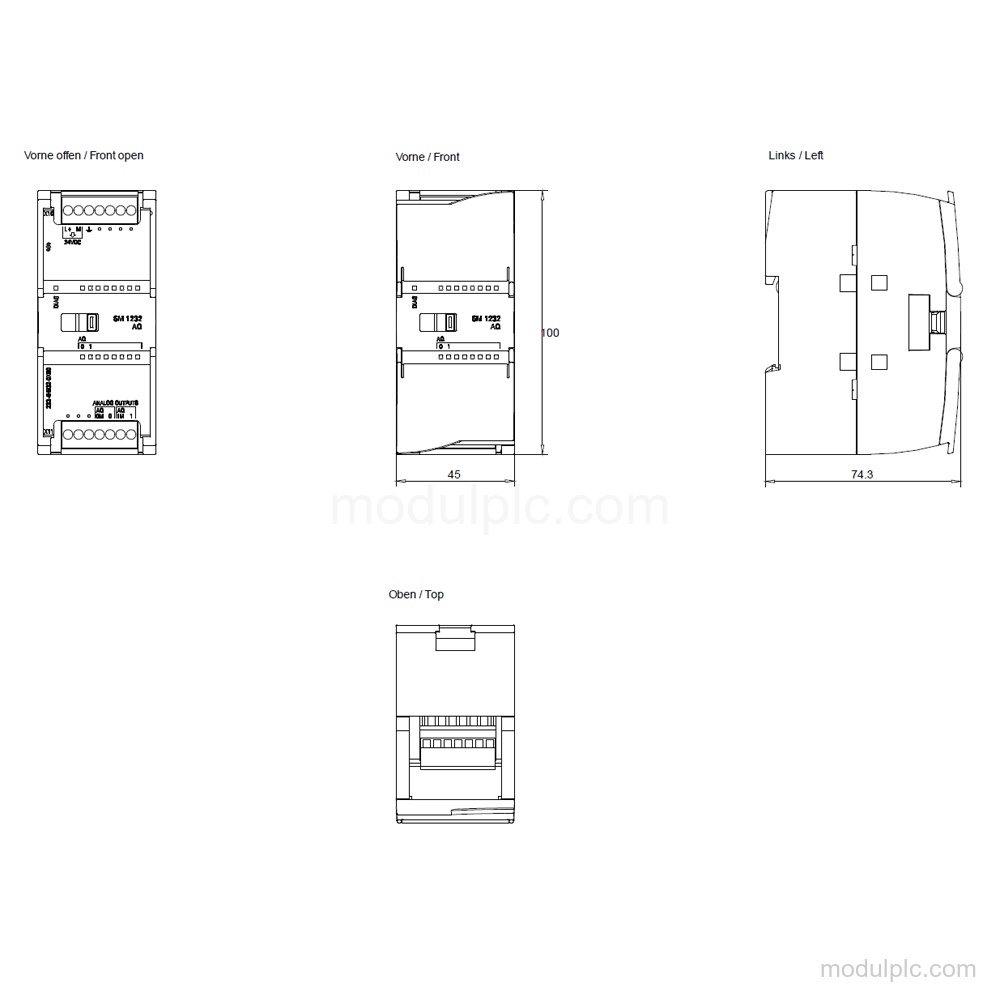

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

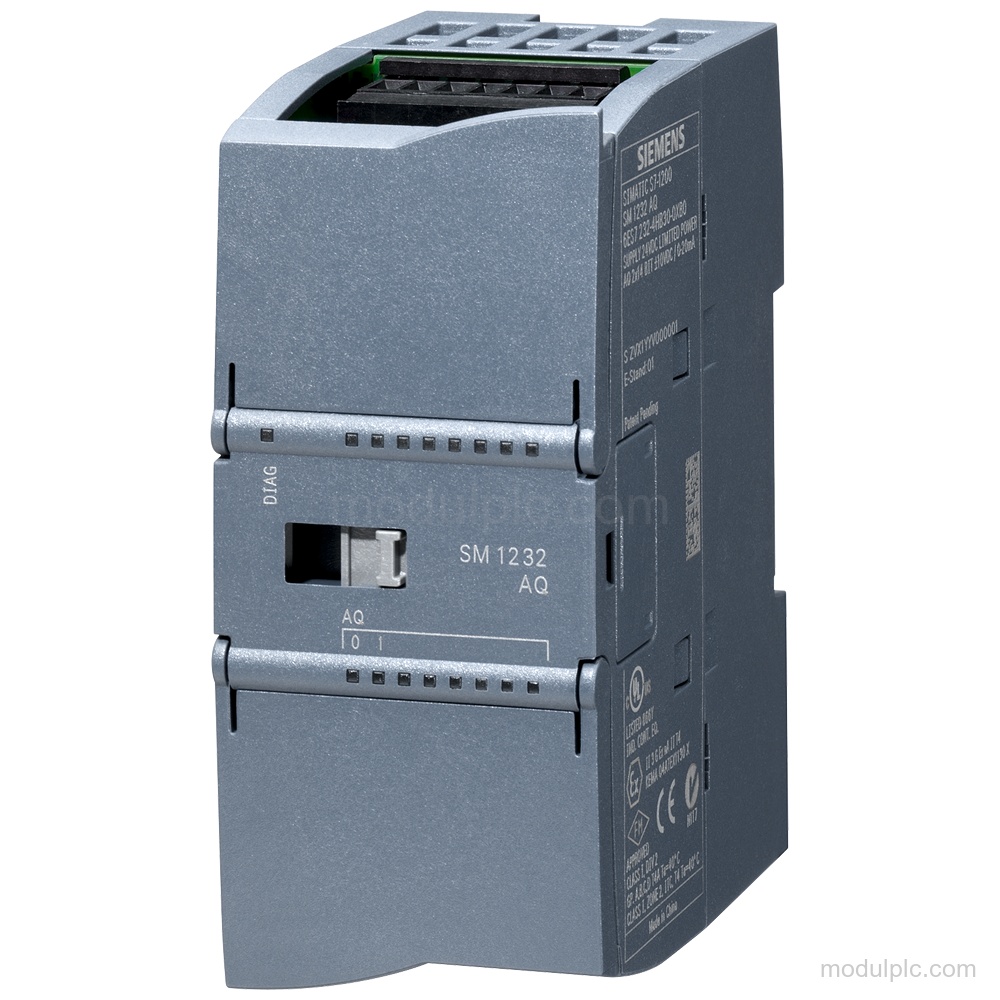

| Product type | SM 1232, AQ 2×14 bit |

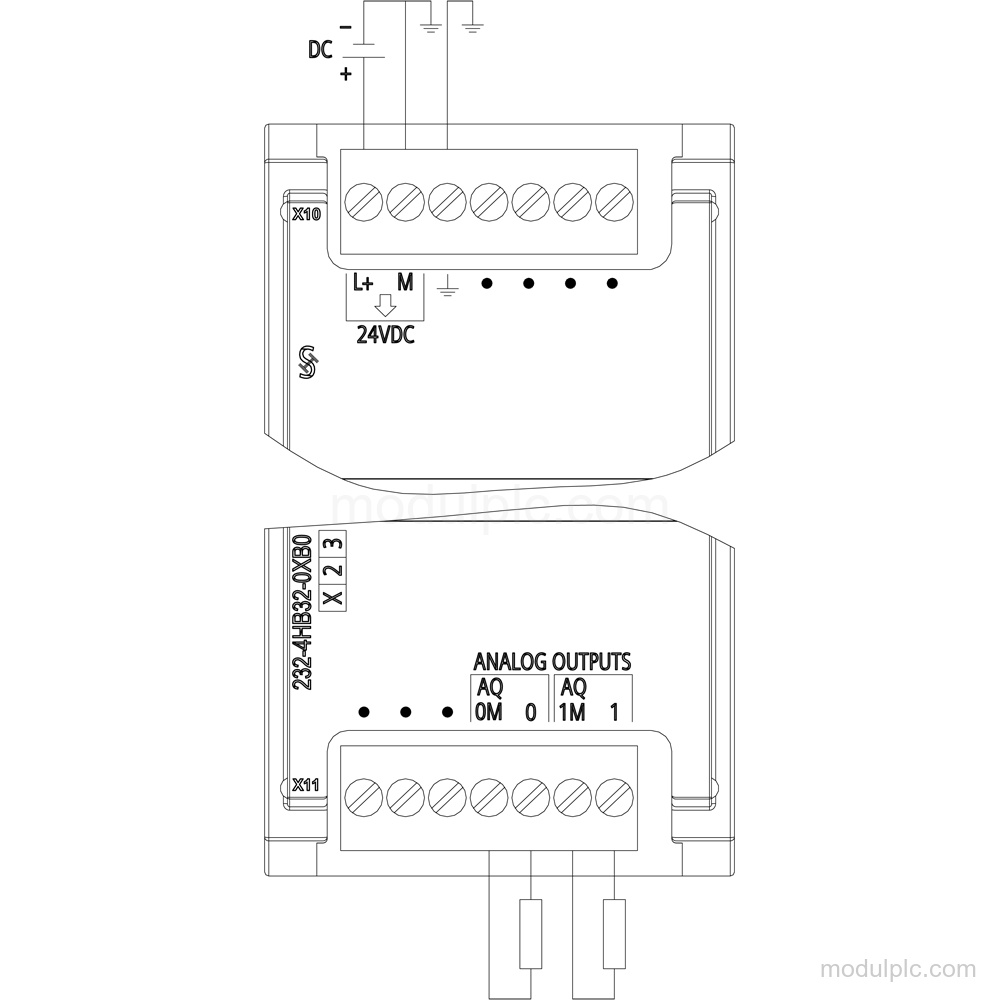

| Analog outputs | 2; Current or voltage |
| Voltage output range | -10 V to +10 V |
| Current output range | 0 to 20 mA |
| Voltage resolution | 14 bit |
| Current resolution | 13 bit |
| Rated supply voltage | 24 V DC |
| Typical current consumption | 45 mA |
| Typical power loss | 1.5 W |
| Voltage-output load impedance, min. | 1 000 Ω |
| Current-output load impedance, max. | 600 Ω |
| Protection | IP20 |
Applications
- Analog signal output: Provides voltage or current analog output signals through 2 analog output channels.
Key Features
- Analog outputs: Has 2 analog outputs supporting current or voltage.
- Output signal ranges: Voltage range: -10 V to +10 V. Current range: 0 to 20 mA.
- Resolution: Resolution with overrange: 14 bit; voltage: 14 bit; current: 13 bit.
- Supply and consumption: Rated supply voltage: 24 V DC. Typical current consumption: 45 mA; from backplane bus 5 V DC: 80 mA.
- Diagnostics: Has alarms, a diagnostics function, diagnostic alarms, supply-voltage monitoring, and wire-break diagnosis.
- Protection and cabling: IP degree of protection: IP20. Shielded cable length: max. 100 m with shielded, twisted pair.
Frequently Asked Questions
1. How many analog outputs does the Siemens 6ES7232-4HB32-0XB0 have?
It has 2 analog outputs supporting current or voltage.
2. Which output signals does this SM 1232 module support?
It supports -10 V to +10 V voltage output and 0 to 20 mA current output.
3. What resolution does the module provide?
The resolution is 14 bit for voltage and 13 bit for current.
4. What diagnostics are available?
It has alarms, a diagnostics function, diagnostic alarms, supply-voltage monitoring, wire-break diagnosis, and output-status LEDs.
5. What supply voltage does it require?
The rated supply voltage is 24 V DC.
