Product Overview

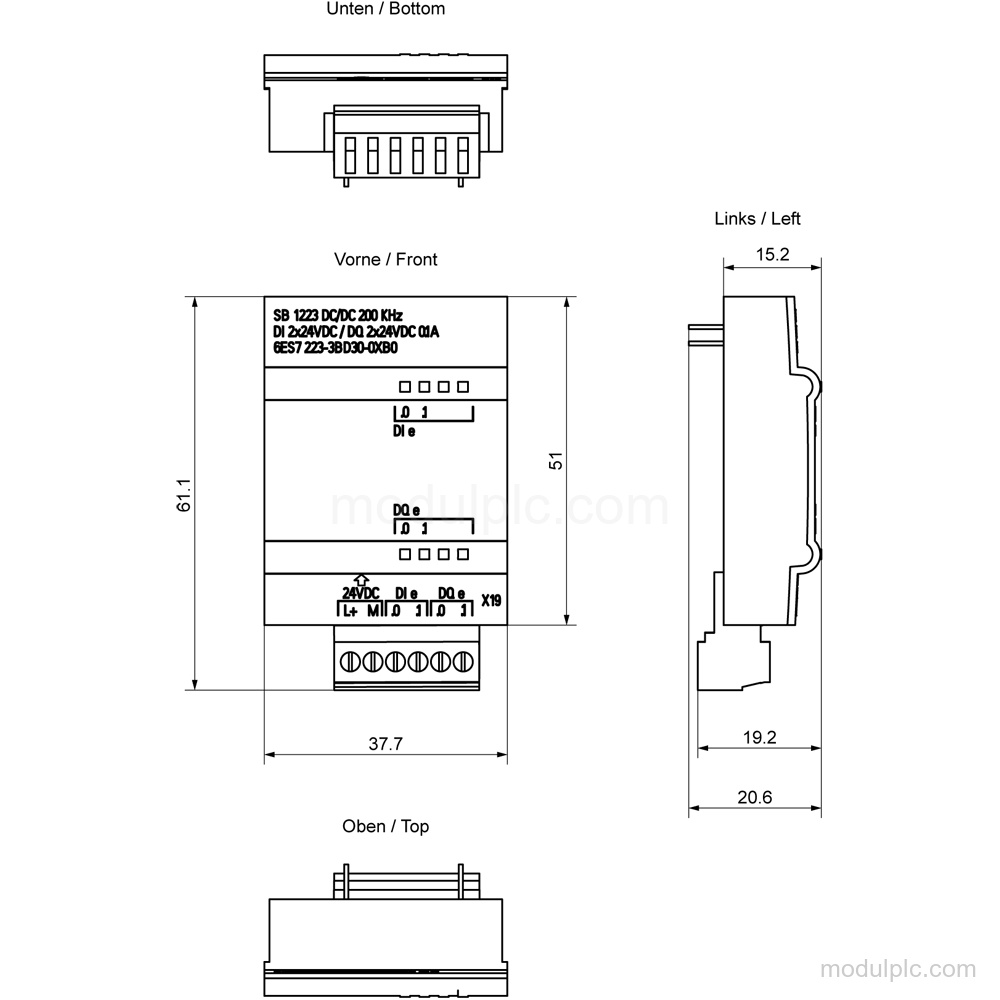

Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 2; Current-sourcing |
| Digital outputs | 2; MOSFET, solid-state (current-sinking/current-sourcing) |
| Rated input voltage | 24 V DC |
| Rated output voltage | 24 V DC |
| Output switching capacity | 0.1 A with resistive load, max. |
| Input signal timing | 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms |
| Power loss | 0.5 W, typ. |
Applications
- Digital signal acquisition: Uses 2 current-sourcing digital inputs for digital signal acquisition.
- Digital output control: Uses 2 MOSFET solid-state digital outputs for current-sinking/current-sourcing output control.
Key Features

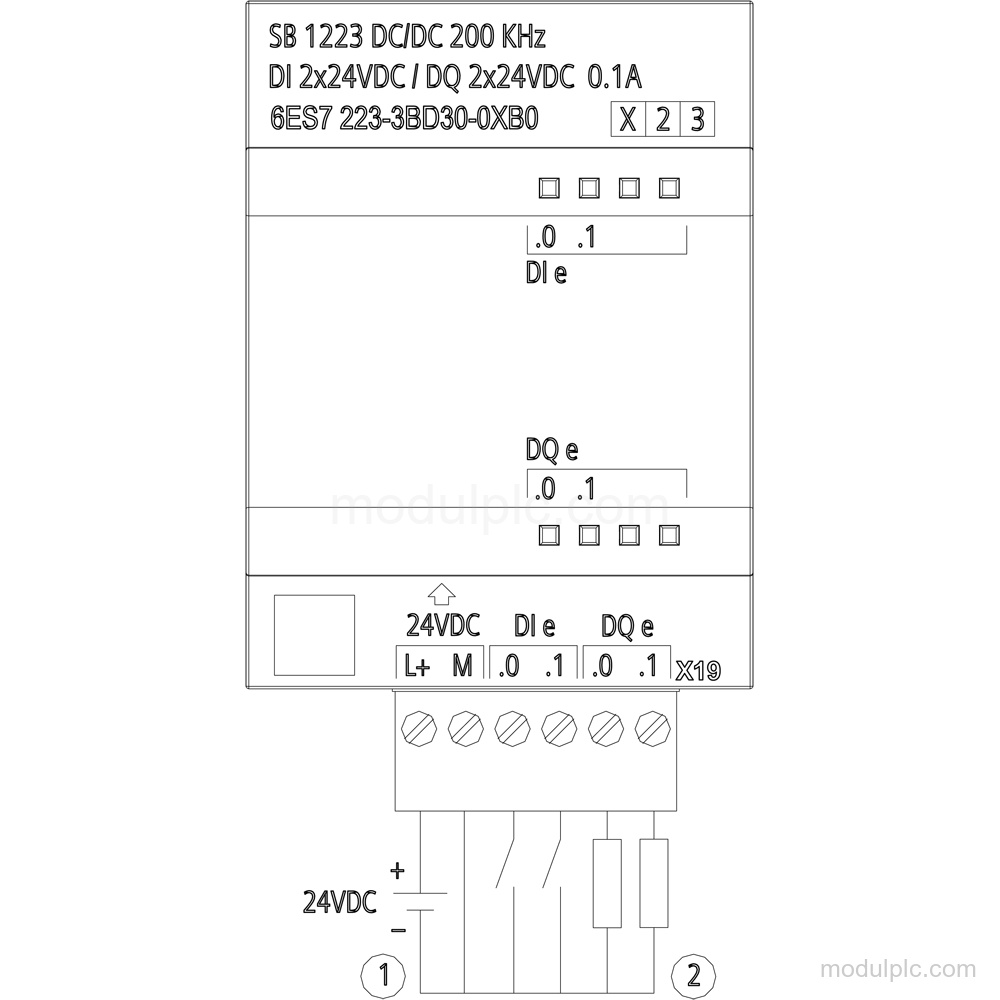

- Digital I/O channels: Has 2 current-sourcing digital inputs and 2 MOSFET solid-state digital outputs, with 2 inputs and 2 outputs in each group.
- 24 V DC signals: Rated input voltage is 24 V DC; rated output voltage is 24 V DC.
- High-speed output capability: The product description specifies 200 kHz capability for the SB 1223 Digital I/O.
- Parameterizable inputs: Standard inputs are parameterizable with selectable times from 0.1 μs to 20.0 μs and from 0.05 ms to 20.0 ms.
- Output protection and diagnostics: The outputs have no short-circuit protection. LED diagnostics indicate input and output status.
- Cable length: Maximum shielded cable length is 50 m; the input specification also requires shielded, twisted pair cable.
Frequently Asked Questions
1. How many digital channels does Siemens 6ES7223-3BD30-0XB0 have?
It has 2 digital inputs and 2 digital outputs.
2. What are the signal voltage values?
The rated input voltage is 24 V DC, and the rated output voltage is 24 V DC.
3. What output type does the SB 1223 use?
The 2 digital outputs are MOSFET, solid-state outputs with current-sinking/current-sourcing capability.
4. Does it provide short-circuit protection and LED diagnostics?
It has no short-circuit protection. LED diagnostics indicate the status of the inputs and outputs.
5. What cable length and cable type are specified?
The maximum shielded cable length is 50 m; the input specification also states shielded, twisted pair cable.
