Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SM 1223, DI 8×24 V DC, DQ 8x relay |
| Digital inputs | 8 |
| Digital outputs | 8 |
| Input voltage | 24 V DC |
| Output voltage, DC | 5 V DC to 30 V DC |
| Output voltage, AC | 5 V AC to 250 V AC |
| Output current, rated | 2 A |
| Supply voltage | 24 V; permissible range 20.4 V to 28.8 V |
| Relay coil supply voltage | 24 V DC |
| Protection degree | IP20 |
Applications
- Digital signal acquisition: The 8 digital inputs acquire 24 V DC Sink/Source signals.
- Relay output control: The 8 relay outputs control loads through rated AC and DC output voltages, with switching capacity up to 2 A.
Key Features

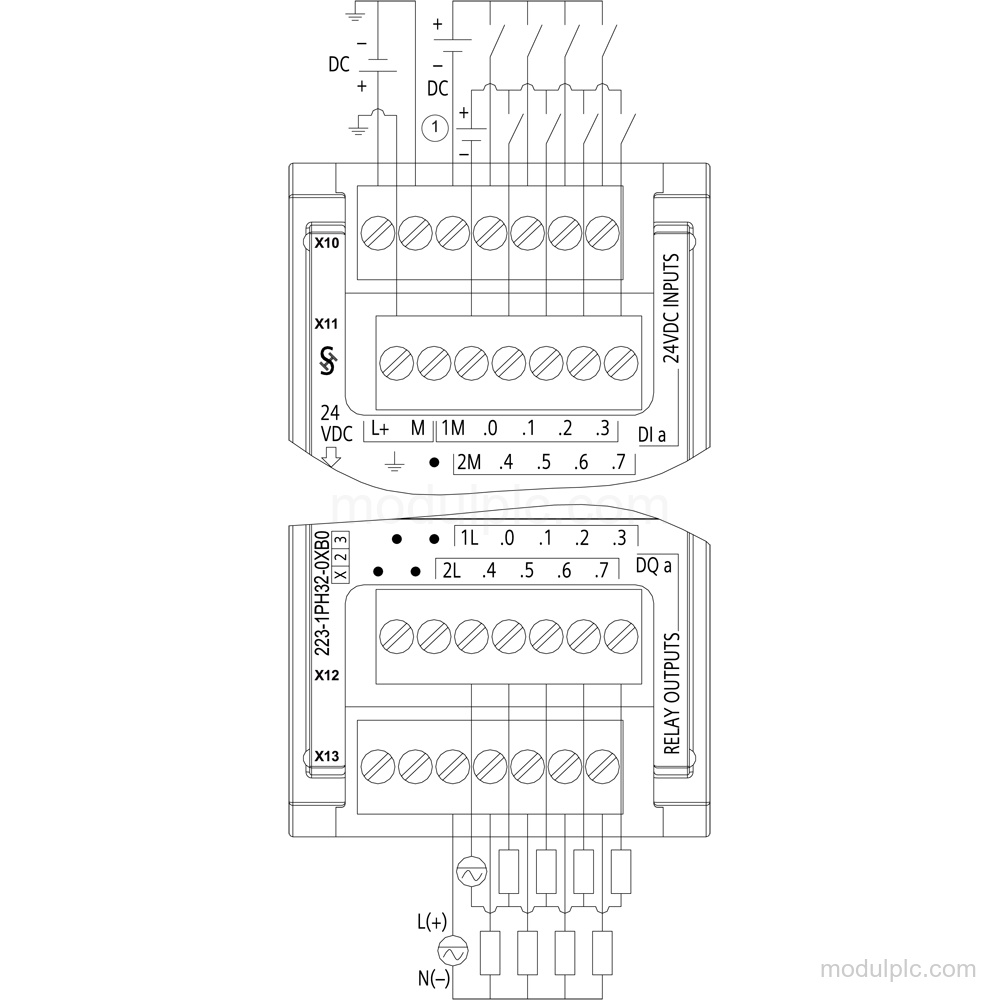

- Digital I/O configuration: 8 digital inputs and 8 relay outputs, with inputs in groups of 2 and outputs in groups of 2.
- 24 V DC inputs: Input rated value is 24 V DC; signal 0 is 5 V DC at 1 mA and signal 1 is 15 V DC at 2.5 mA.
- Relay output switching: Relay outputs support 5 V DC to 30 V DC and 5 V AC to 250 V AC, with a maximum switching capacity of 2 A for resistive loads.
- Diagnostics and protection: The module has diagnostic alarms and LED indications for input and output status. Short-circuit protection is not provided and must be provided externally.

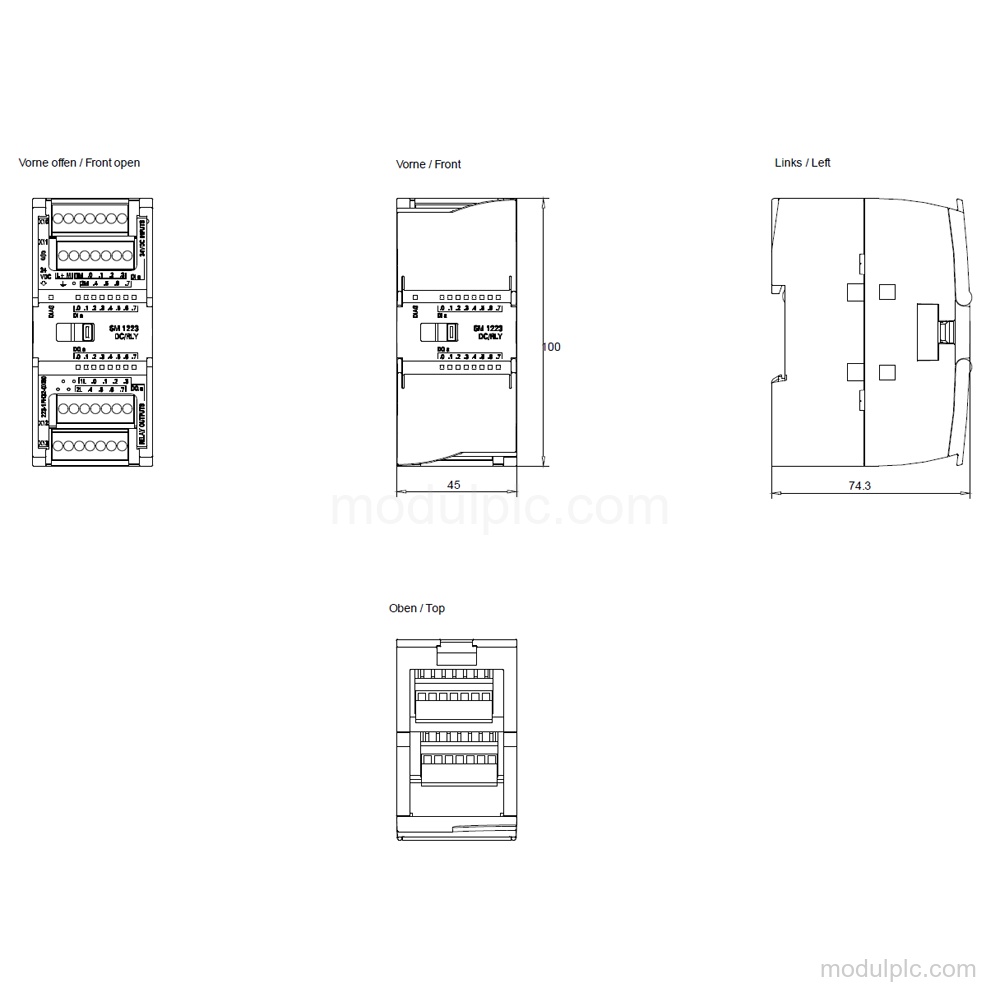

- Installation and isolation: IP20 protection is provided. Digital outputs have relay isolation between channels, and isolation from the backplane bus is 1 500 V AC for 1 minute.
Frequently Asked Questions
1. How many digital inputs and outputs does the 6ES7223-1PH32-0XB0 have?
It has 8 digital inputs and 8 relay outputs. The inputs and outputs are arranged in groups of 2.
2. What input signal does this SM 1223 module support?
The digital inputs have a rated value of 24 V DC and support Sink/Source signaling. Signal 0 is 5 V DC at 1 mA; signal 1 is 15 V DC at 2.5 mA.
3. What loads can the relay outputs switch?
The relay outputs support 5 V DC to 30 V DC and 5 V AC to 250 V AC. Switching capacity is up to 2 A with a resistive load.
4. Does the module include short-circuit protection?
No. Short-circuit protection for the digital outputs must be provided externally.
