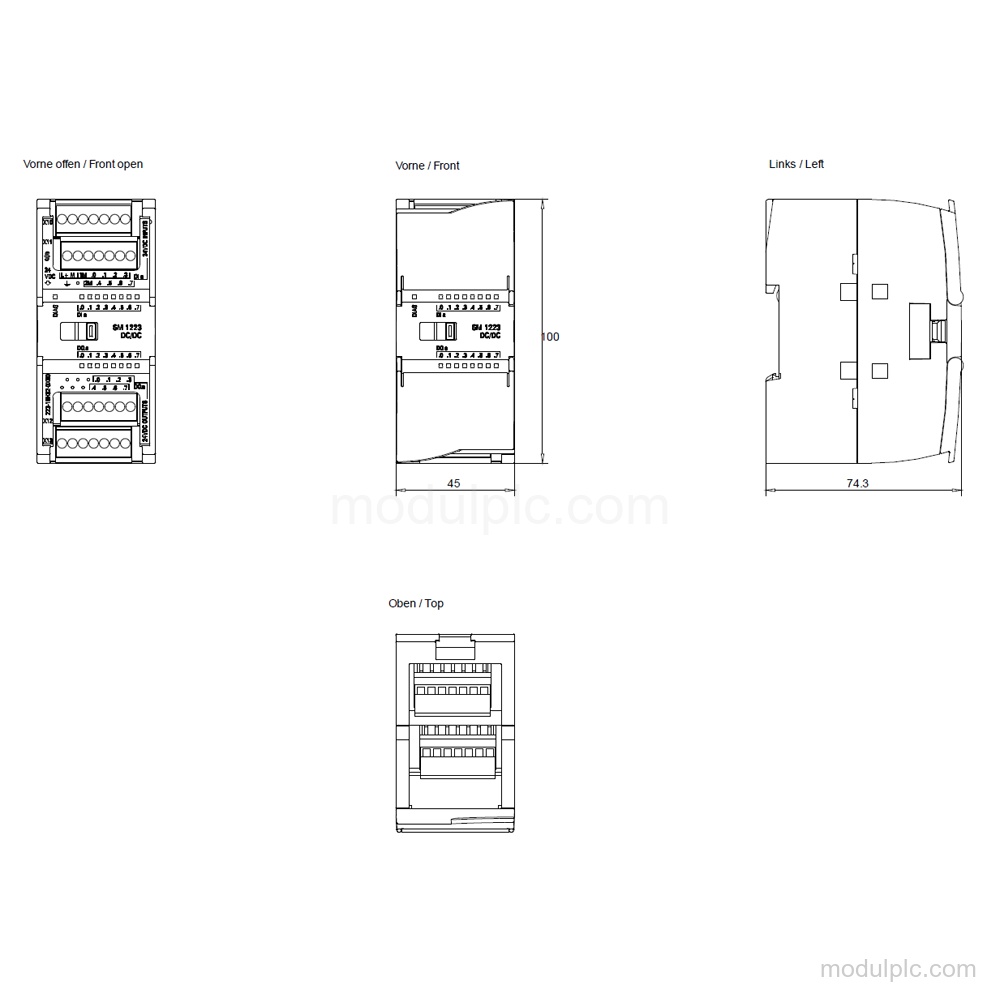

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SM 1223 digital I/O module |
| Digital inputs | 8; in groups of 2 |
| Digital outputs | 8; in groups of 1 |
| Input signal | 24 V DC; Sink/Source |
| Output signal | 24 V DC transistor outputs |
| Output current | 0.5 A rated value; 0.5 A maximum permissible range for signal "1" |
| Supply voltage | 24 V DC rated; 20.4 V to 28.8 V DC permissible range |
| Diagnostics | Diagnostic alarm; LEDs for input and output status |
| Potential separation | Inputs in groups of 2; outputs in groups of 1; 500 V AC to backplane bus |
| Protection degree | IP20 |
Applications
- Digital signal acquisition: Acquires 24 V DC digital signals through 8 Sink/Source digital inputs.
- Digital output control: Controls digital loads through 8 transistor outputs with 0.5 A rated output current.

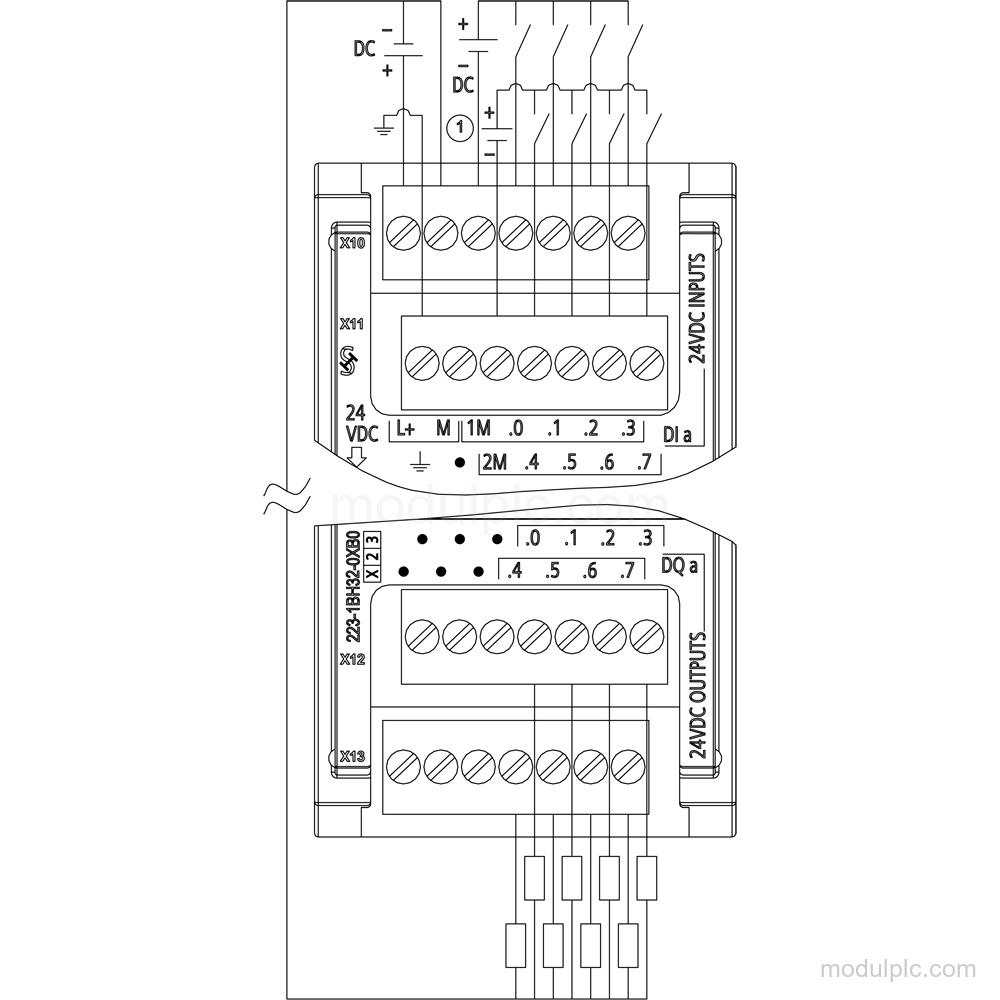

Key Features
- Digital I/O configuration: 8 digital inputs and 8 digital outputs; product type designation: SM 1223, DI 8×24 V DC, DQ 8×24 V DC.
- 24 V DC input signals: Input rated value is 24 V DC. Signal "0" is 5 V DC at 1 mA, while signal "1" is 15 V DC at 2.5 mA.
- Transistor outputs: 8 transistor outputs provide a 0.5 A rated output current and 0.5 A maximum permissible range for signal "1".
- Supply and power: Rated supply voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V DC. Typical power loss is 2.5 W.
- Diagnostics and protection: Diagnostic alarms are available, with LEDs for input and output status. Digital outputs have no internal short-circuit protection; this must be provided externally. Protection degree is IP20.
- Isolation and installation: Digital input potential separation is provided in groups of 2; digital output separation is in groups of 1 and 500 V AC between outputs and the backplane bus.
Frequently Asked Questions
1. How many digital channels does Siemens 6ES7223-1BH32-0XB0 provide?
It has 8 digital inputs and 8 digital outputs. The inputs are arranged in groups of 2, and the outputs in groups of 1.
2. What input signals does the 6ES7223-1BH32-0XB0 support?
The digital inputs have a 24 V DC rated value and support Sink/Source operation. Signal "0" is 5 V DC at 1 mA, and signal "1" is 15 V DC at 2.5 mA.
3. What output current is available on the digital outputs?
The transistor outputs have a 0.5 A rated output current and a 0.5 A maximum permissible range for signal "1".
4. Does this module include short-circuit protection for its digital outputs?
No. Short-circuit protection for the digital outputs must be provided externally.
