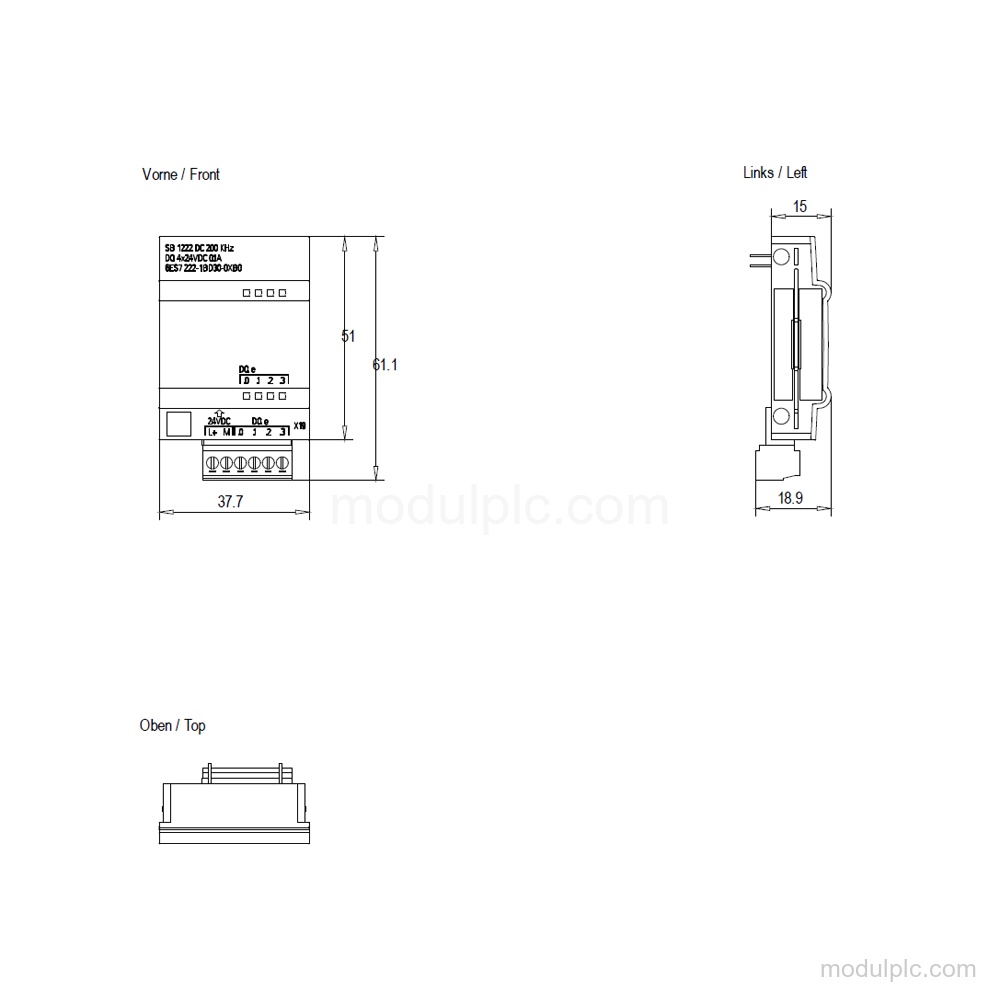

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SB 1222, DQ 4×24 V DC 200 kHz |
| Digital outputs | 4; MOSFET, solid-state (current-sinking/current-sourcing) |
| Output voltage, rated | 24 V DC |
| Output current, signal "1", rated | 0.1 A |
| Switching capacity with resistive load, max. | 0.1 A |
| Output status indication | LED; yes |
| Short-circuit protection | No |

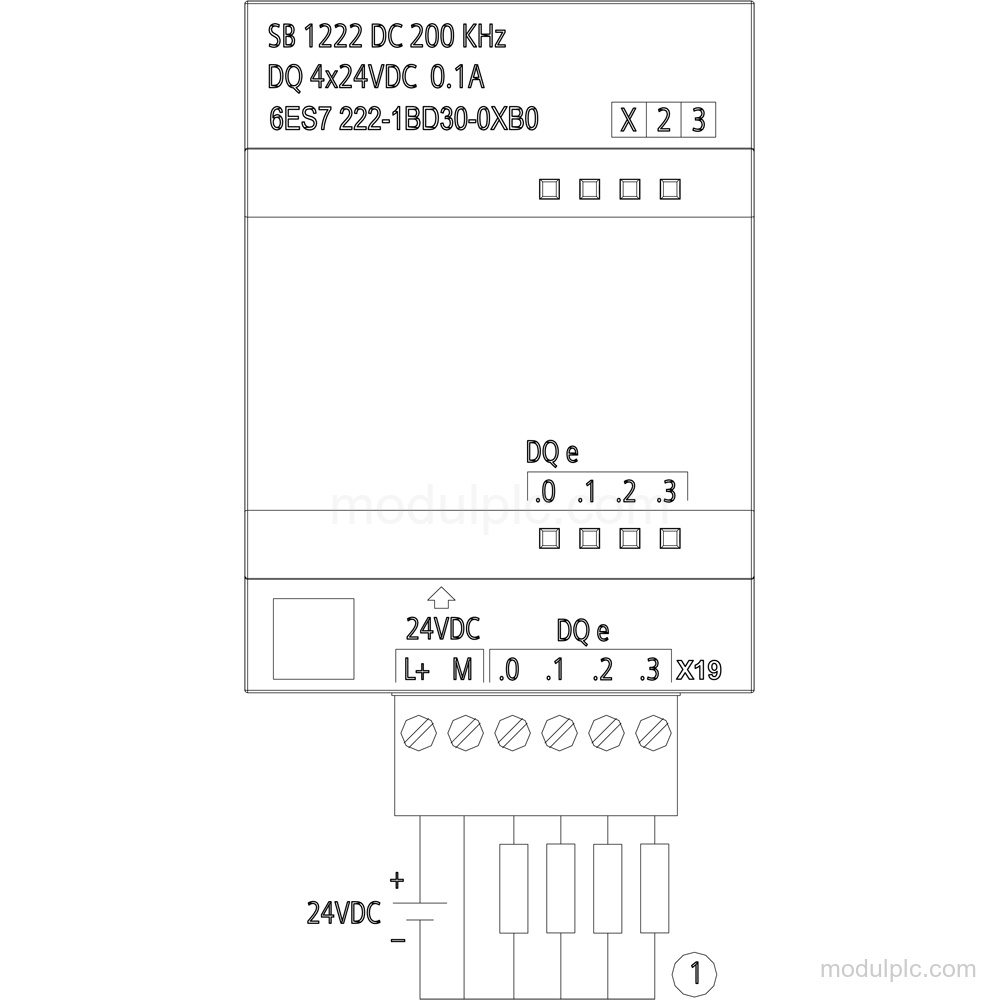

Key Features
- Product type: SB 1222, DQ 4×24 V DC 200 kHz.
- Digital outputs: 4 MOSFET solid-state outputs, current-sinking/current-sourcing, arranged in groups of 4.
- Output voltage: Rated value: 24 V DC. For signal "0": maximum 1 V with 10 kOhm load; for signal "1": minimum L+ (-1.5 V).
- Output current: For signal "1": rated value 0.1 A and permissible maximum 0.1 A.
- Protection and indication: No short-circuit protection. LED indication is provided for output status.
- Electrical data: Typical backplane-bus input current is 35 mA at 5 V DC; typical power loss is 0.5 W. Shielded cable length is maximum 50 m.
Frequently Asked Questions
1. How many digital outputs does 6ES7222-1BD30-0XB0 have?
It has 4 digital outputs, arranged in groups of 4.
2. What output signal does the module provide?
The module provides 24 V DC rated output with 200 kHz capability. The outputs are MOSFET solid-state outputs and support current-sinking/current-sourcing.
3. What is the permissible output current?
For signal "1", the rated output current is 0.1 A and the permissible maximum is 0.1 A.
4. Does the module have short-circuit protection and output diagnostics?
It has no short-circuit protection. LED indication is provided for output status.
5. What cable length is supported?
The maximum shielded cable length is 50 m.
