Product Overview

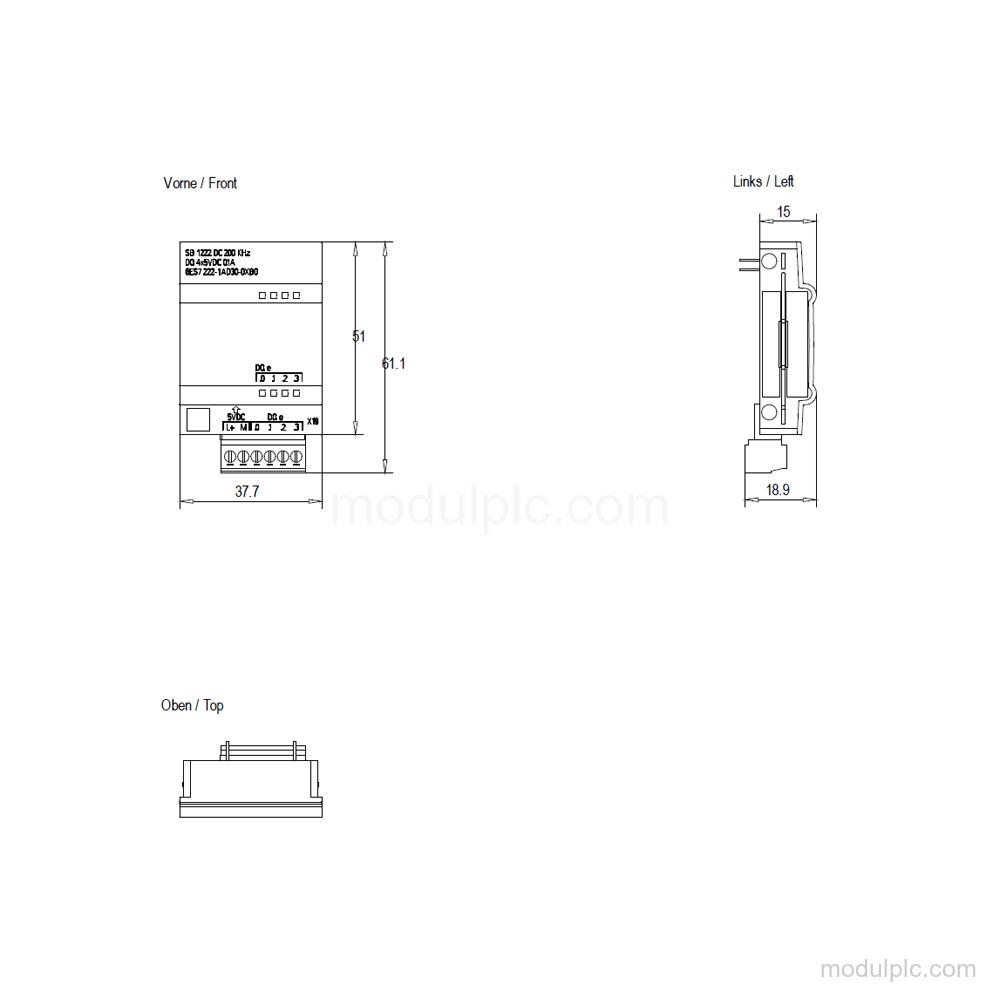

Technical Summary
| Parameter | Value |
|---|---|
| Product type | SB 1222, DQ 4×5 V DC 200 kHz |
| Digital outputs | 4; MOSFET, solid-state (current-sinking/current-sourcing) |
| Output voltage, rated | 5 V DC |
| Output current, signal "1" rated | 0.1 A |
| Switching capacity with resistive load, max. | 0.1 A |
| Output-status LED indication | Yes |
| Short-circuit protection | No |
| Backplane-bus input current at 5 V DC, typ. | 35 mA |
| Power loss, typ. | 0.5 W |

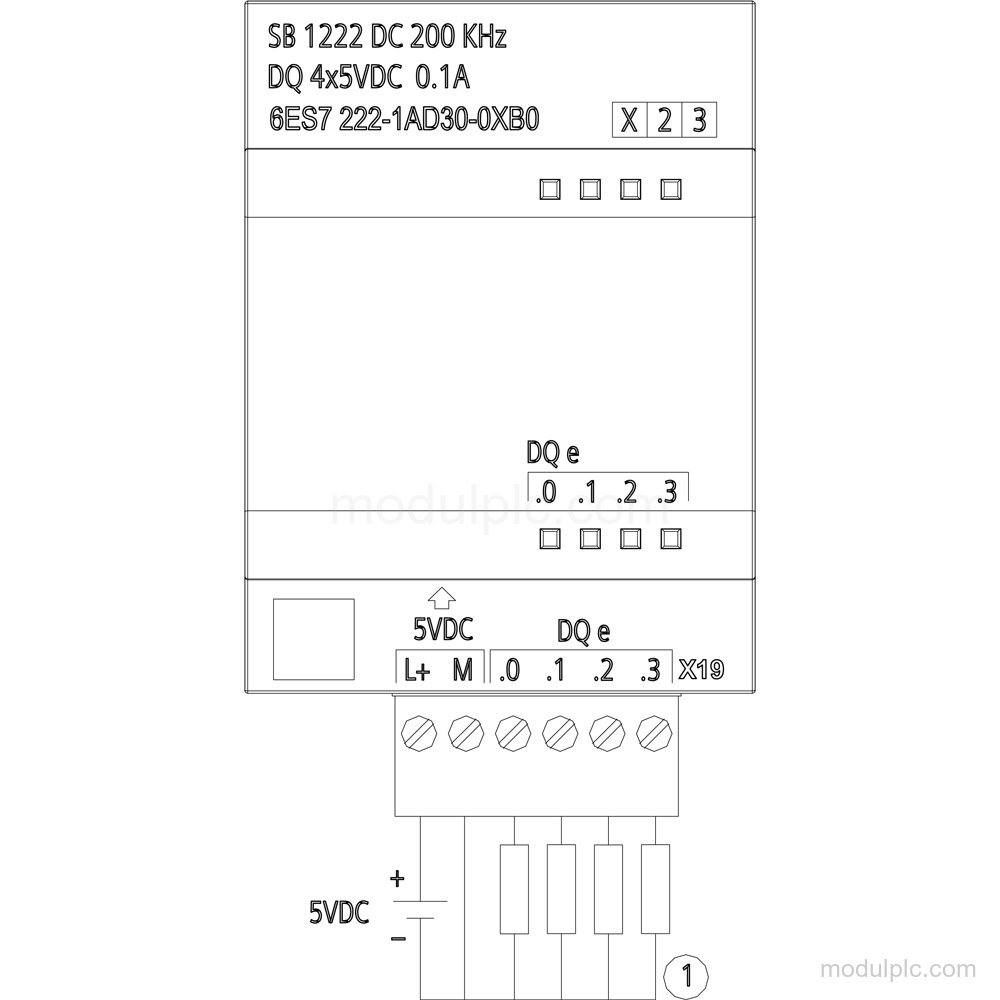

Applications
- Digital output control: Provides digital outputs for switching signals through 4 MOSFET solid-state outputs.
Key Features
- Digital output type: SB 1222 with 4 digital outputs using MOSFET solid-state switching, current-sinking/current-sourcing.
- Output voltage: Rated output voltage: 5 V DC. Signal "0": maximum 0.2 V; signal "1": L+ minus 0.7 V DC minimum and 6 V maximum.
- Output current: Signal "1" output current: rated value 0.1 A; permissible range maximum 0.1 A.
- Switching capacity: Maximum switching capacity with resistive load: 0.1 A.
- Diagnostics and protection: Output-status LED indication: Yes. Short-circuit protection: No.
- Module consumption: Typical backplane-bus input current at 5 V DC: 35 mA. Typical power loss: 0.5 W.
Frequently Asked Questions
1. How many digital outputs does 6ES7222-1AD30-0XB0 have?
It has 4 digital outputs, grouped in groups of 4.
2. What output voltage does the module use?
The rated output voltage is 5 V DC. For signal "0", the maximum is 0.2 V; for signal "1", the range is L+ minus 0.7 V DC minimum to 6 V maximum.
3. What is the maximum output current?
For signal "1", the rated output current is 0.1 A and the permissible range is maximum 0.1 A.
4. Does the module provide short-circuit protection and output diagnostics?
It has no short-circuit protection and has an LED indication for output status.
